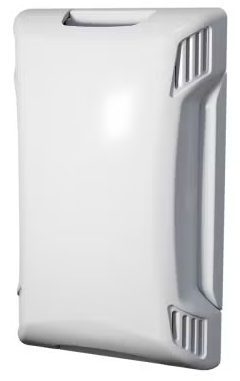

ACI A/CO2-R2 Carbon Dioxide Sensor

Carbon dioxide monitor with single beam, non-dispersive infrared technology (NDIR), 0 to 2,000 ppm and extended range of up to 10,000 ppm, no manual calibration.

Starting at $401.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Specs

Features

  • Single beam infrared sensing technology (NDIR)
  • Diffusion sensing method
  • 0 to 2,000 ppm measurement range default
  • Up to 10,000 ppm (factory set) extended CO2 ranges
  • ±40 ppm and ±3% of reading (@ 15-35°C; 20-70% RH and 101.3 kPa) CO2 accuracy
  • ±30 ppm and ±5% of reading extended range accuracy
  • CO2 output signal:
    • Output 1: 0-5 VDC or 0-10 VDC (default)
    • Output 2: 4-20 mA (500 Ohm load maximum)
  • Polarity protected fail safe
  • ±1°F (±0.6°C) temperature accuracy
  • 5-year limited warranty

The ACI A/CO2-R2 carbon dioxide sensor monitors levels in commercial, school, and office environments as an indicator of indoor air quality. It uses single-beam, non-dispersive infrared technology to measure CO2 concentrations up to 2,000 ppm. ABC software provides automatic calibration, reducing the need for manual calibration. The sensor converts CO2 measurements to proportional analog outputs, with 0–10 VDC and 4–20 mA as the factory defaults and 0–5 VDC available through field-selectable DIP switches.

The A/CO2-R2 can include thermistor temperature sensing, setpoint, and override functions, depending on the selected configuration. Its outputs can be integrated with building automation systems or demand-controlled ventilation systems to monitor and adjust ventilation based on CO2 levels.

ACI A/CO2-R2 Carbon Dioxide Sensor Applications

  • Schools
  • Office buildings
  • Auditoriums
  • Gymnasiums
  • Shopping malls
  • Theaters
  • Demand control ventilation and economizers
