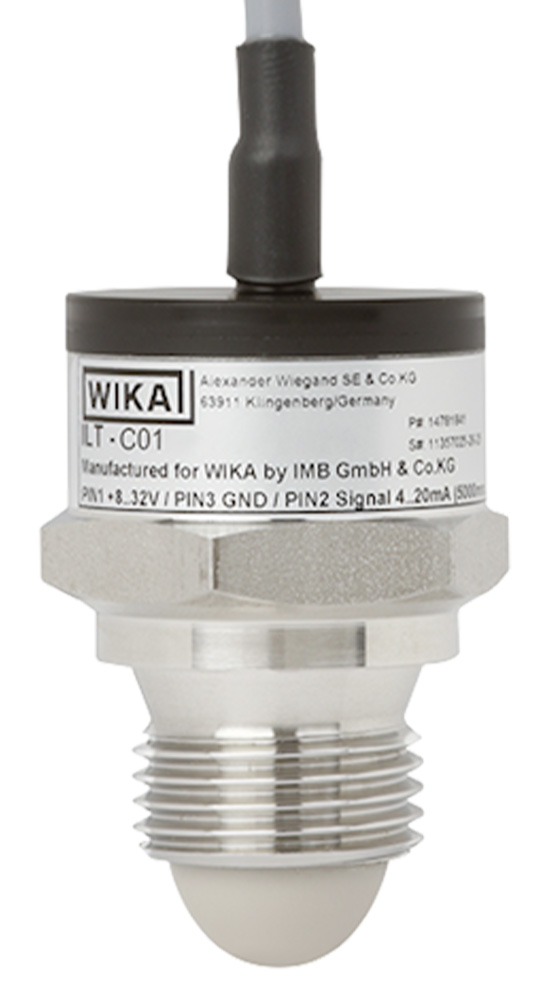

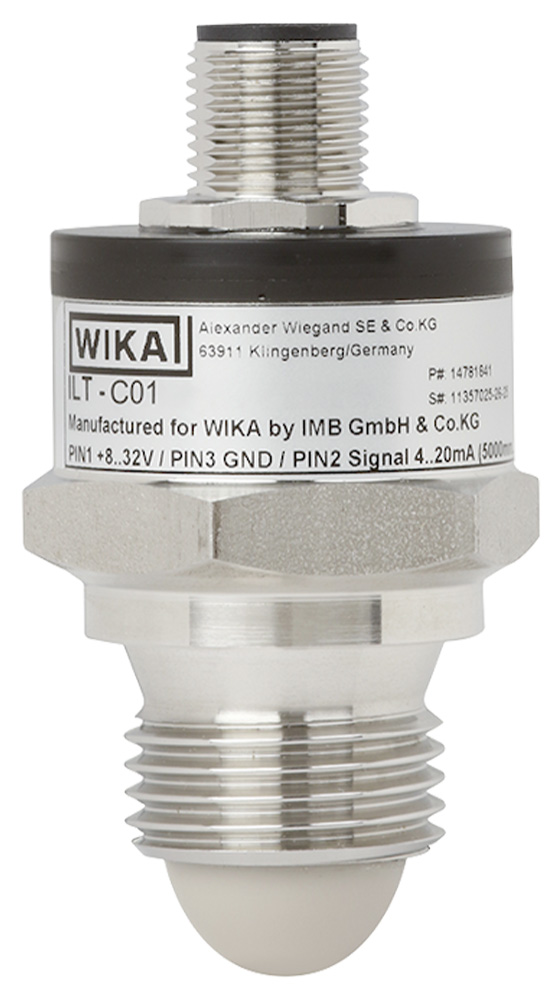

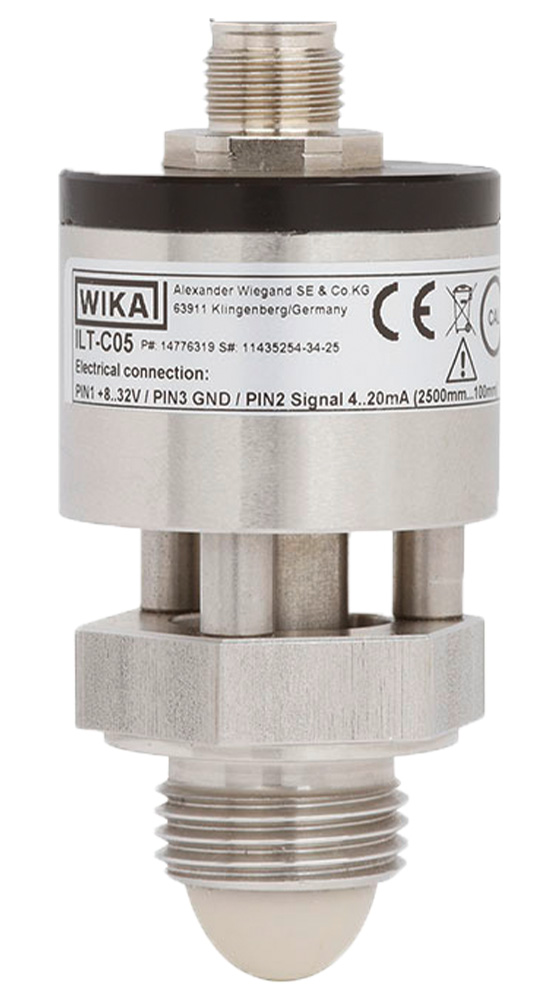

WIKA ILT Series Radar Level Sensor
Suitable for liquid, highly viscous, and solid media, continuous level measurement of liquids in containers and tanks.
Effective October 6th, 2025 WIKA has added a 8% surcharge for all of their products. The surcharge will appear as a separate line item on the order.
- By WIKA
Overview
Features
- Industrial radar level sensor 60 GHz FMCW
- Temperature ranges:
- Standard (-40 to 212°F)
- High Temperature (-40 to 302°F)
- 4-20 mA or DC 0-5 V signal output options
- 196.85in max measuring distance to sealing face
- 363 PSI (25 bar) max pressure
- ±6° beam angle
- 1/2in NPT process connection (threaded downwards)
- Duo stainless steel 316/316L (EN 1.4401/1.4404) construction
- DC 8-36 V power supply voltage
- Adjustment function for complex container geometries
Description
The WIKA ILT Series Radar Level Sensor provides accurate, non-contact, continuous level measurement of liquids in containers and tanks. Using free-beam radar technology, the sensor transmits electromagnetic waves that reflect off the surface of the measured medium. The returned signals are captured and analyzed to deliver reliable, high-precision level measurements. Up to two additional switch points can also be integrated for enhanced switching functionality and control.
Designed for the demanding requirements of mobile working machines, the WIKA ILT Series delivers dependable performance across a wide temperature range of -40 to 302°F (-40 to 150°C). Its robust metal shielding provides excellent resistance to electromagnetic interference, allowing reliable operation at field strengths of up to 100 V/m. The sensor is also engineered to withstand harsh operating conditions, including vibrations up to 40g and shocks up to 100g, making it well suited for demanding mobile and industrial applications.
