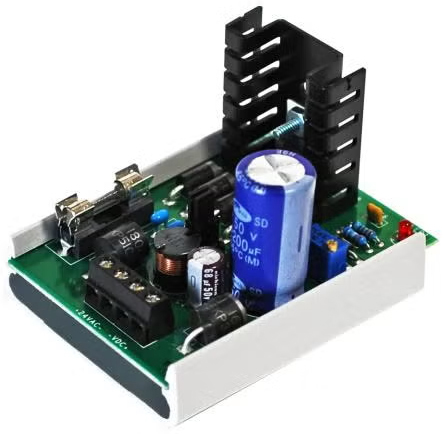

ACI PS24 Adjustable External Power Supply

$104.00

View Company Reviews
Part Number
  • A/PS24-24V-S
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Manual Product Specs

Features

  • 22 to 26 VAC, 50/60Hz (Class 2 transformer with 24 VAC secondary) or 30 to 36 VDC input voltage
  • 1.5 VA minimum (no load); additional VA required must be determined by load size
  • Half-wave (default) or full wave (jumper selectable) rectification
  • 24 VDC (factory set) output voltage; adjustable from +1.5 to 26 VDC
  • Internal current limiting thermal protection
  • CE, RoHS2, WEEE approvals
  • 2-year limited warranty

The ACI PS24 adjustable external power supply is a low-voltage power supply that accepts 24 VAC from a Class 2 transformer and provides a regulated 1.5–26 VDC output. The output is factory set to 24 VDC and can be adjusted in the field using the onboard potentiometer. The unit can be configured for half- or full-wave operation using integral jumper switches.

The PS24 is supplied in a snap-track mounting configuration for installation inside electrical panels or equipment. For applications using a pilot-duty or remote relay, an A/DO008 transorb can be installed across the relay coil to reduce electrical spikes when the relay is de-energized. An external transorb may not be necessary when the relay and PS24 are installed in the same control panel.

ACI PS24 Adjustable External Power Supply Applications

  • DC power supply
  • Transducer supply
  • Test bench supply
  • Analog signal simulator
  • DC power regulation from control transformer
