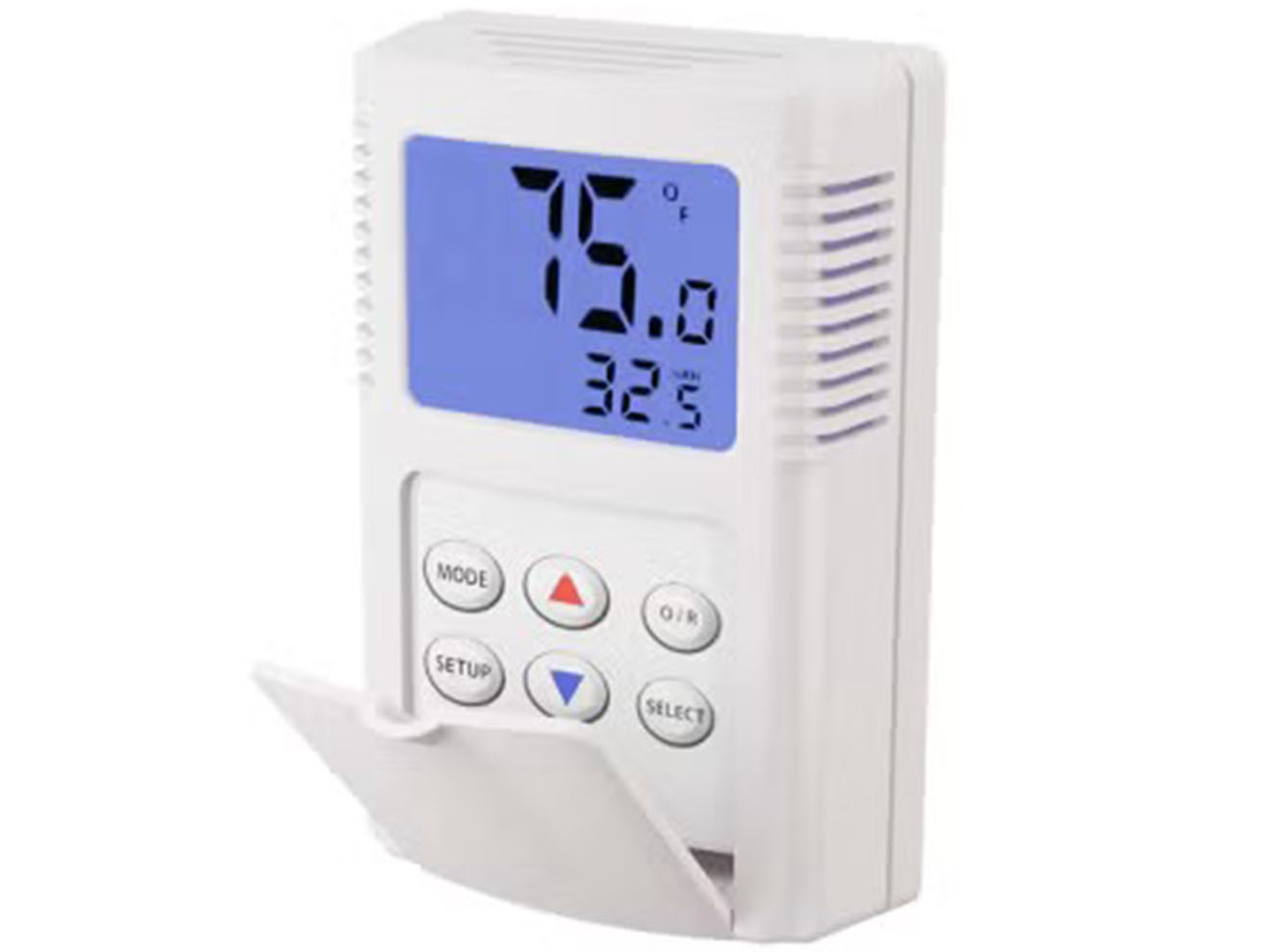

ACI RH LCD Humidity Sensor

Wall mounted relative humidity sensor with backlit LCD display, 0 to 100% RH measurement range, and ±2% or ±3% RH accuracy options.

Starting at $677.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Manual Product Specs

Features

  • Humidity measurement range: 0 to 100% RH
  • RH accuracy at 77°F: ±2% or ±3% RH
  • Analog outputs: 0 to 5 VDC, 0 to 10 VDC, or 4 to 20 mA
  • Supply voltage: +12 to 40VDC, +18 to 40VDC, or 20 to 28VAC (depending on output)
  • Operating temperature range: 32°F to 104°F
  • Operating humidity environment: 0 to 95% RH, non condensing
  • Sensor type: Capacitive
  • Display: Backlit LCD with 4 button membrane keypad

The ACI RH LCD humidity sensor is a wall mounted relative humidity transmitter with an integrated backlit LCD display for local humidity monitoring. It uses a capacitive sensing element to provide reliable humidity measurement from 0 to 100% RH and is available with ±2% or ±3% RH accuracy options. The sensor provides selectable analog outputs of 0 to 5VDC, 0 to 10VDC, or 4 to 20mA and supports both AC and DC power supplies.

The ACI RH LCD features a 4 button membrane keypad for setup and field calibration adjustments. It is designed for indoor environments with an operating temperature range of 32 to 104°F and supports 0 to 95% RH, non condensing operating humidity conditions.

ACI RH LCD Humidity Sensor Applications:

  • Local humidity display
  • Hospitals and operating rooms
  • Pharmaceutical laboratories
  • Clean rooms
  • ESD static control
  • Humidification and dehumidification systems
