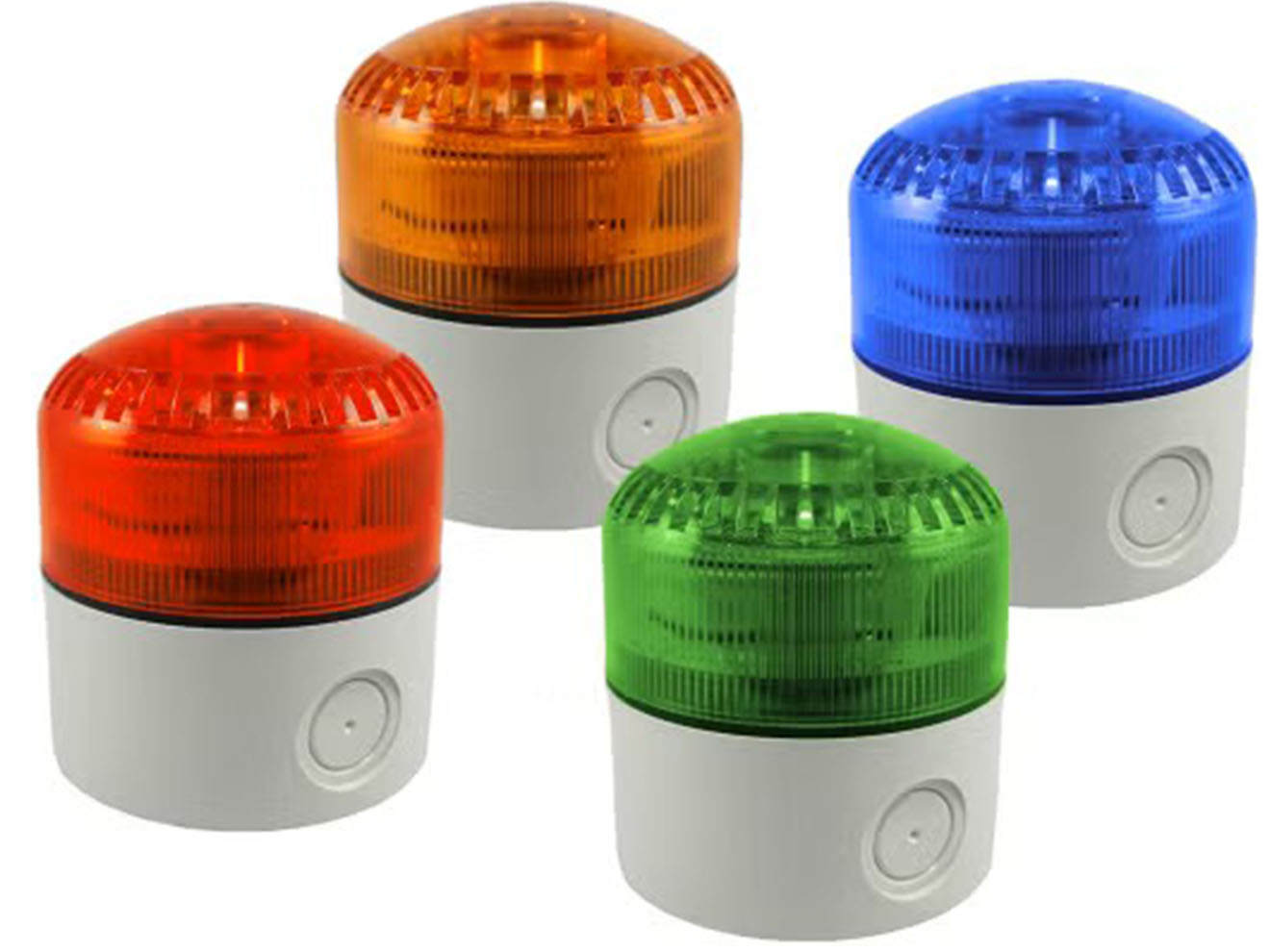

ACI FSIG-SLM500 Series Strobe and Alarm
Multifunctional LED horn strobe with three alarm channels, 64 selectable tones, adjustable output up to 105 dB, and IP65 rated enclosure.
Overview
Features
- Strobe colors: Amber, blue, clear, green, and red
- Supply voltage: 12 to 24 VAC/VDC
- Alarm channels: Three independent channels with visual and audible signal options
- Tone selection: 64 dip switch selectable tones
- Sound output: Adjustable from 65 to 105dBa
- Light source: LED array with 50,000 hour lamp life
- Strobe patterns: Strobe, fade, and steady modes
- Operating temperature: -22 to 131°F
- Enclosure rating: Type 3R (IP65)
- Input type: Relay
Description
The ACI FSIG-SLM500 series strobe and alarm is a multifunctional LED horn strobe that provides visual and audible alarm signaling through three independent alarm channels. Channel 1 provides a visual strobe signal, while Channels 2 and 3 combine visual signals with selectable audible tones for different alarm levels.
The FSIG-SLM500 series features 64 dip switch selectable tones, adjustable sound output from 65 to 105dBa, and three selectable flash patterns: strobe, fade, and steady. It operates on 12 to 24 VAC/VDC power and uses an LED array with a 50,000 hour lamp life. The enclosure is constructed from high impact, UV resistant, self extinguishing polycarbonate and is rated Type 3R (IP65) for indoor and outdoor installations.
ACI FSIG-SLM500 Series Strobe and Alarm Applications:
- Gas detection and alarm systems
- Audible and visual alarms
- Equipment status indication
