ACI WPR2 Wet to Wet Transmitter

Wet to wet differential pressure transmitter with dual remote sensors, field selectable ranges and outputs, and pressure measurement from 3 to 300 psi.

Starting at $1,433.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Manual Product Specs

Features

  • Measures wet-to-wet differential pressure in liquids, gases, and refrigerants
  • Configurable pressure ranges: 3 to 300 psi
  • Field selectable: 4 to 20mA, 0 to 5VDC, and 0 to 10VDC outputs
  • Dual remote ceramic capacitive pressure sensors
  • Accuracy: ±1.0% FSO (highest ranges)
  • Operating temperature: -40 to 257°F at the transducer
  • NEMA 4X / IP66 enclosure
  • Push button auto zero calibration

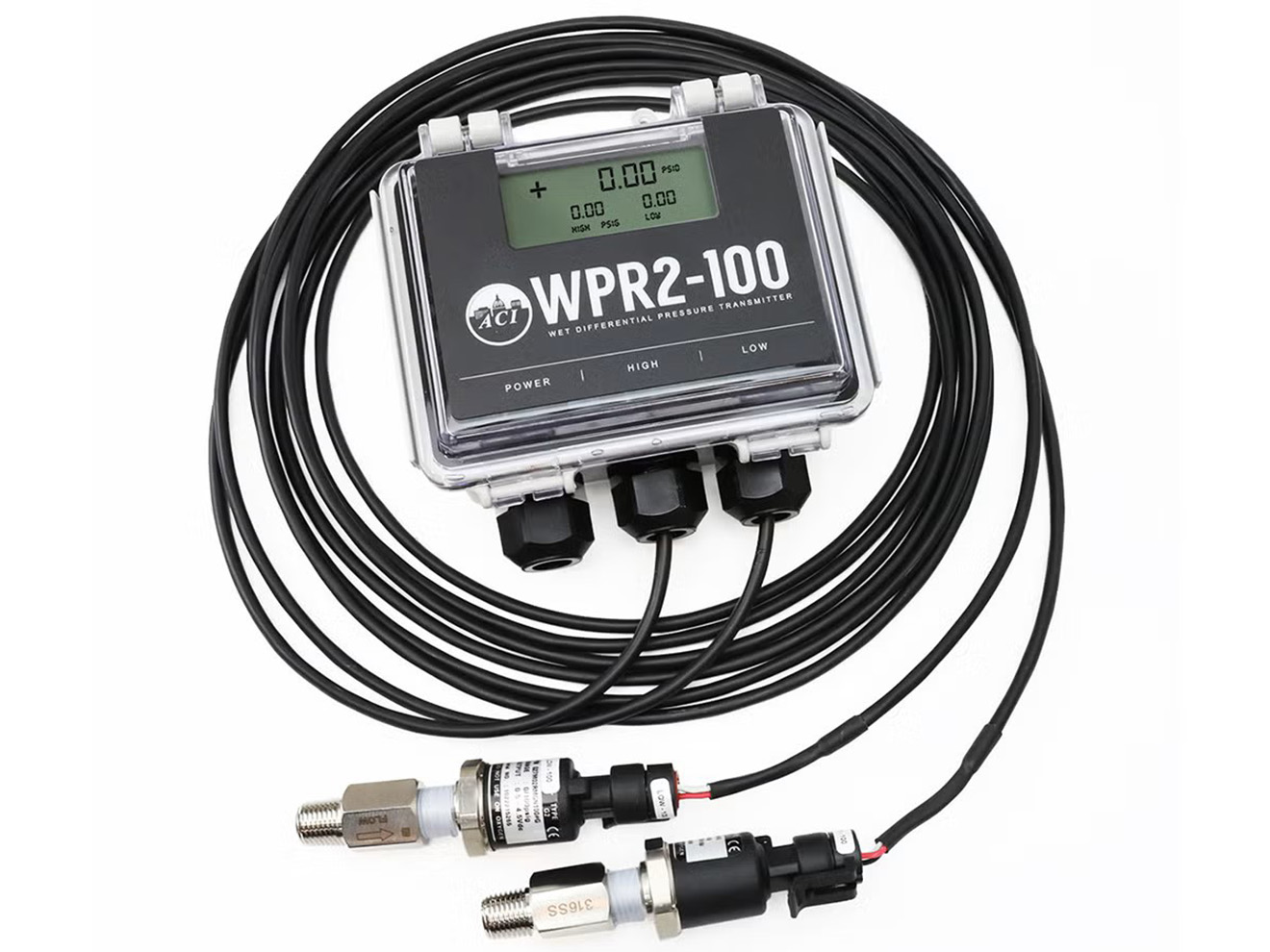

  • Optional LCD displays high side, low side, and differential pressure values

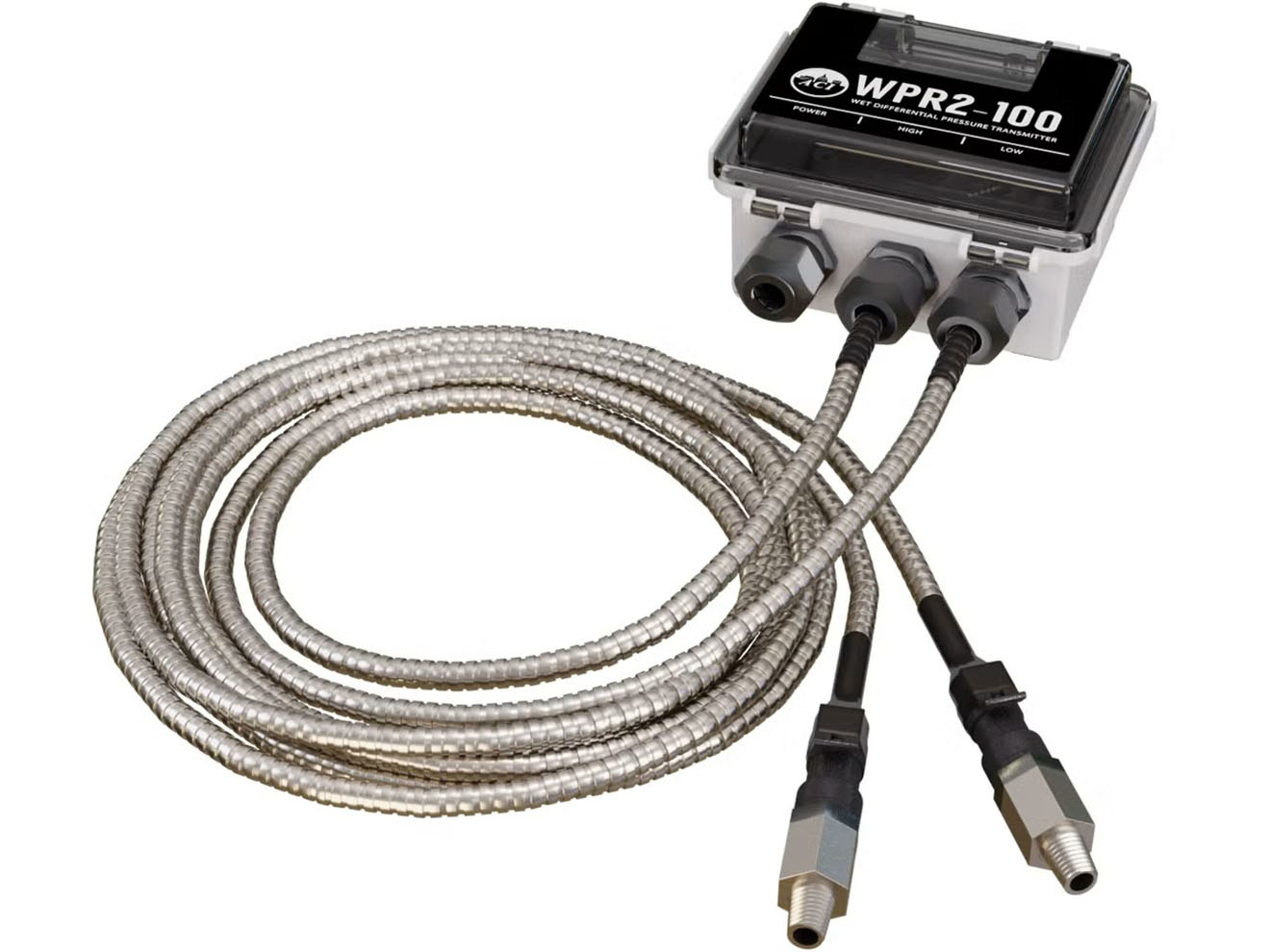

  • Available with standard CMP rated or metal clad cable

The ACI WPR2 wet to wet transmitter measures differential pressure in liquids, gases, and refrigerants compatible with 304L stainless steel. The transmitter uses dual remote ceramic capacitive sensors with stainless steel diaphragms and supports field selectable pressure ranges and output signals. Available configurations provide uni-directional and bi-directional pressure ranges from 3 to 300 psid with 4 to 20mA, 0 to 5VDC, or 0 to 10VDC outputs.

The WPR2 includes a push button auto zero function and is available with standard CMP rated cable or metal clad cable with a 304 stainless steel core. Optional LCD models display high side pressure, low side pressure, differential pressure, and status messages. The transmitter is rated NEMA 4X/IP66 and operates at transducer temperatures from -40 to 257°F.

ACI WPR2 Wet to Wet Transmitter Applications:

  • Flow applications
  • Pump monitoring
  • Compressor monitoring
  • Filter differential pressure measurement
  • Heat exchanger differential pressure measurement
