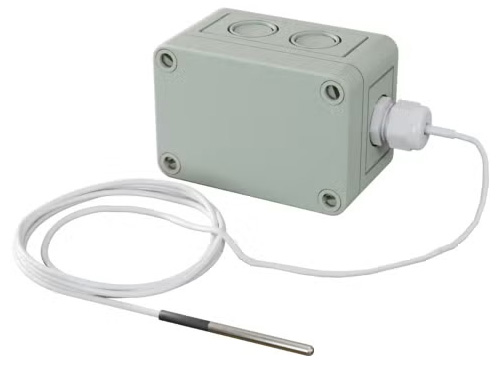

ACI Freezer Series Thermistor
Non-linear, NTC (Negative Temperature Coefficient) sensor curve, 10KΩ sensor output, stainless steel probe, NEMA 4 weatherproof plastic enclosure option.
Overview
Features
- One sensing point
- Three conductor wires (one white and two red); polarity sensitive
- 3/16in probe diameter, 316 stainless steel
- 2in probe length
- 10 to 95% RH, non-condensing operating humidity range
- -40 to 257ºF (-40 to 125ºC) sensor operating temperature range
- 10KΩ nominal sensor output at 77°F (25°C)
- Accuracy +/-0.9ºF (+/- 0.5ºC) at -13 to 158°F (-25 to 70°C)
- 2 mW/ºC power dissipation constant
- Optional enclosure:
- Polystyrene / UL94-V2
- NEMA 4X (IP 66) rated
- 5-year limited warranty
Description
The ACI freezer series thermistor features a 3/16-inch diameter stainless steel probe with a 30-foot, 3-conductor, 24 AWG jacketed Teflon cable. The sensors in this series are manufactured using ACI’s encapsulation process to eliminate the effects of moisture on the sensors. The probe is designed to be used in refrigerated, freezer, or hydronic applications where a remote sensor must be used. An optional NEMA 4X rated weatherproof enclosure and NIST Certificate is available.
ACI Freezer Series Thermistor Applications
- Pharmaceutical
- Refrigerators
- Freezers
- Hydronic heating
- Remote sensor applications
