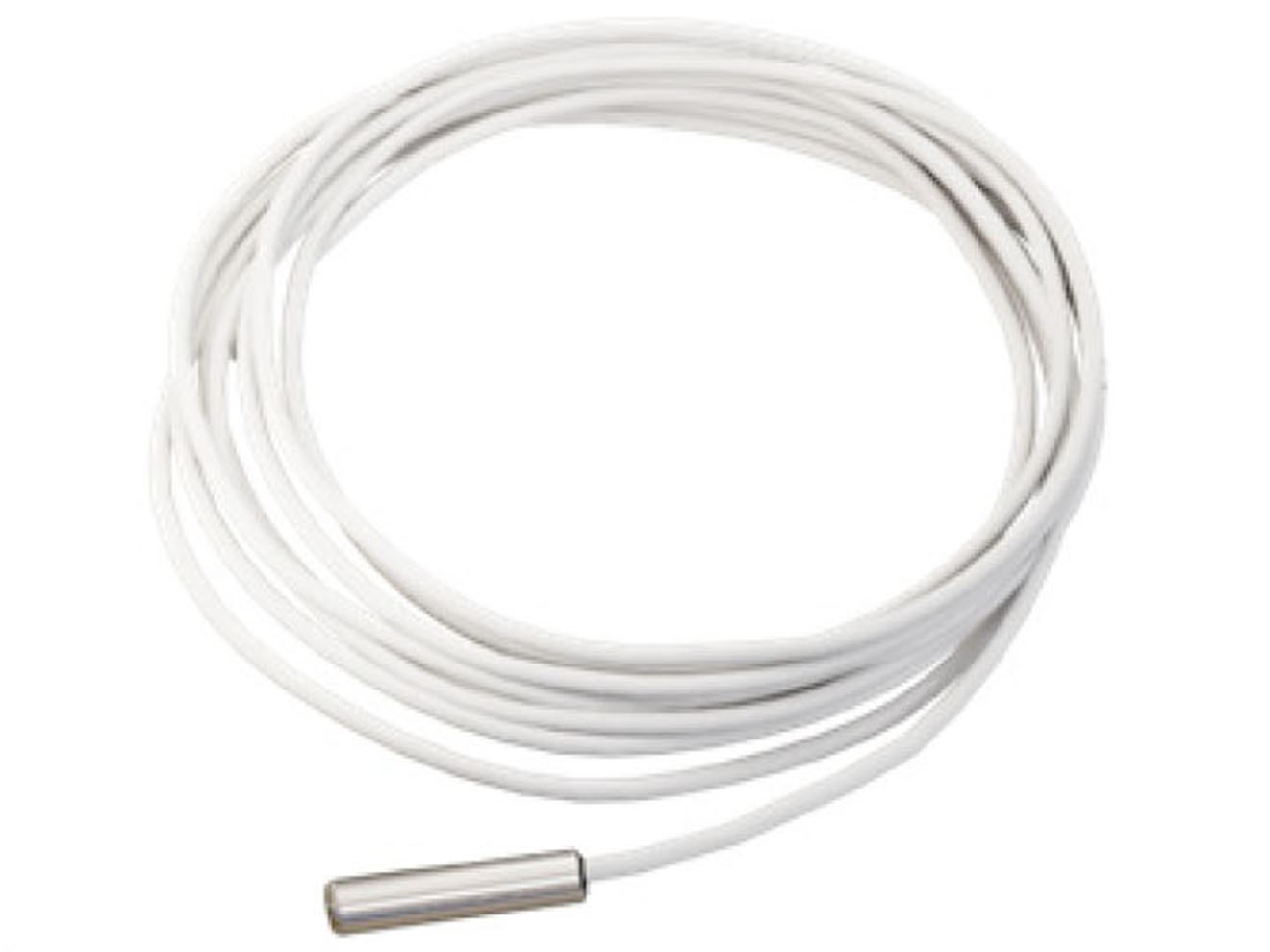

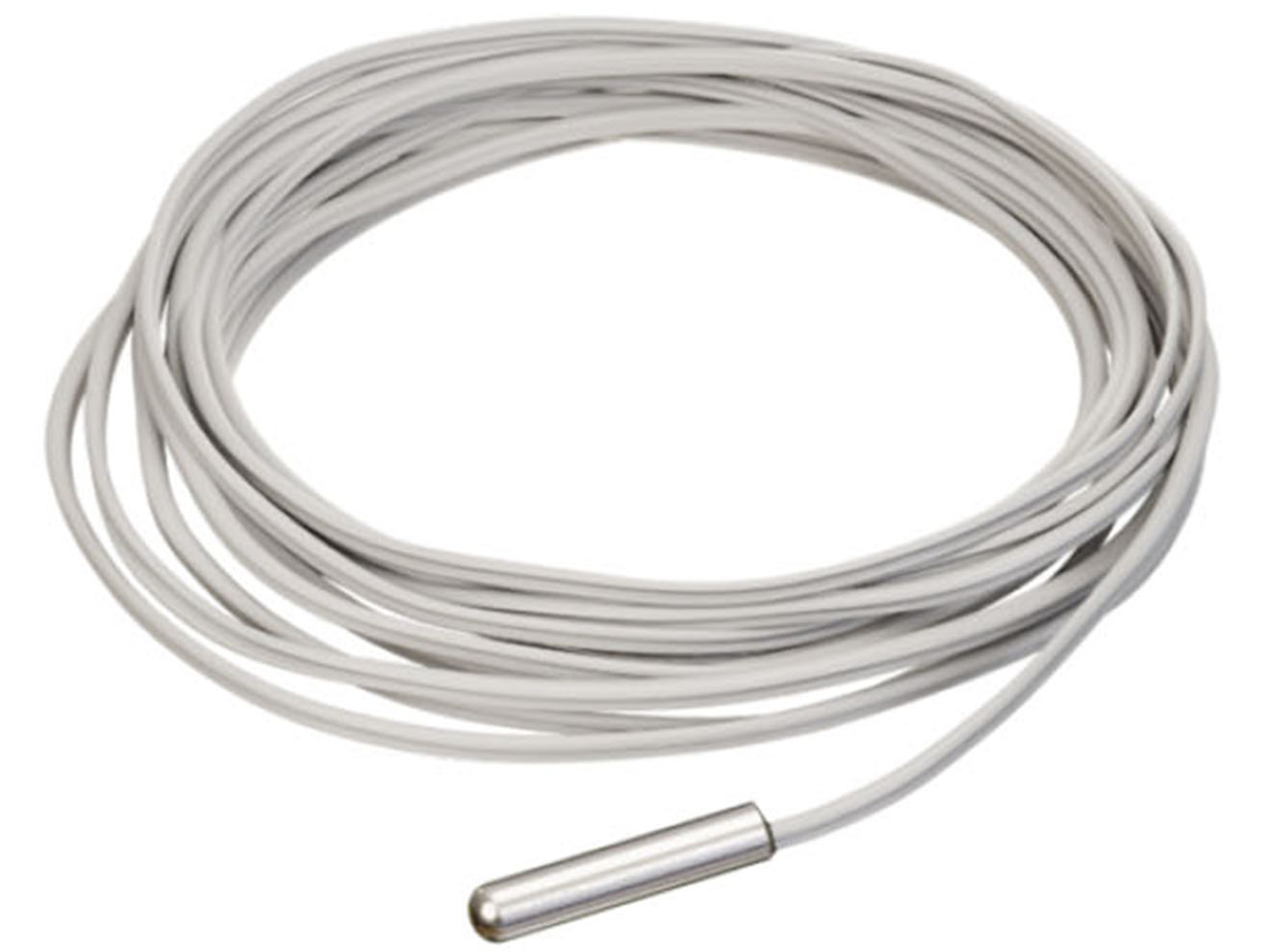

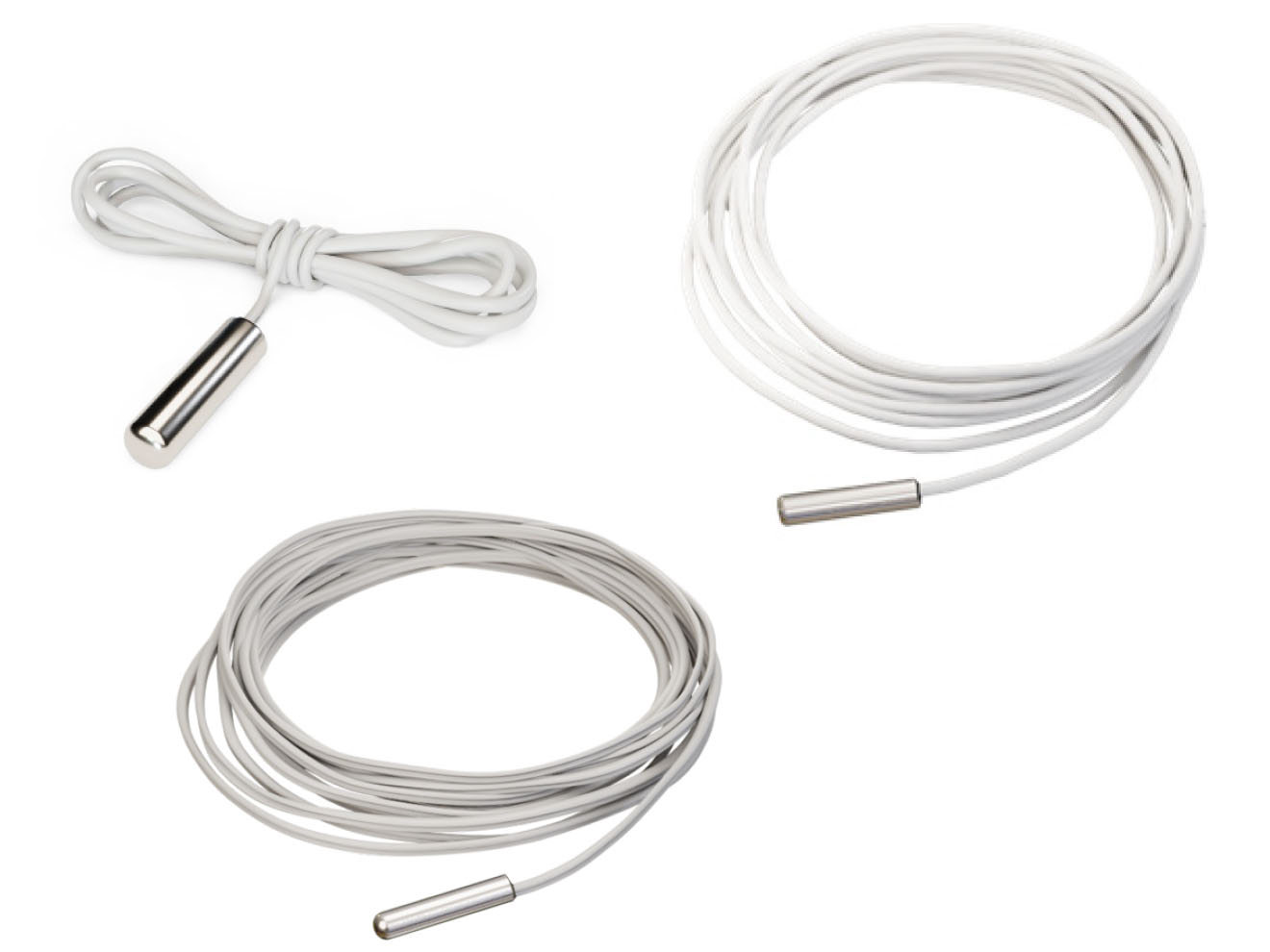

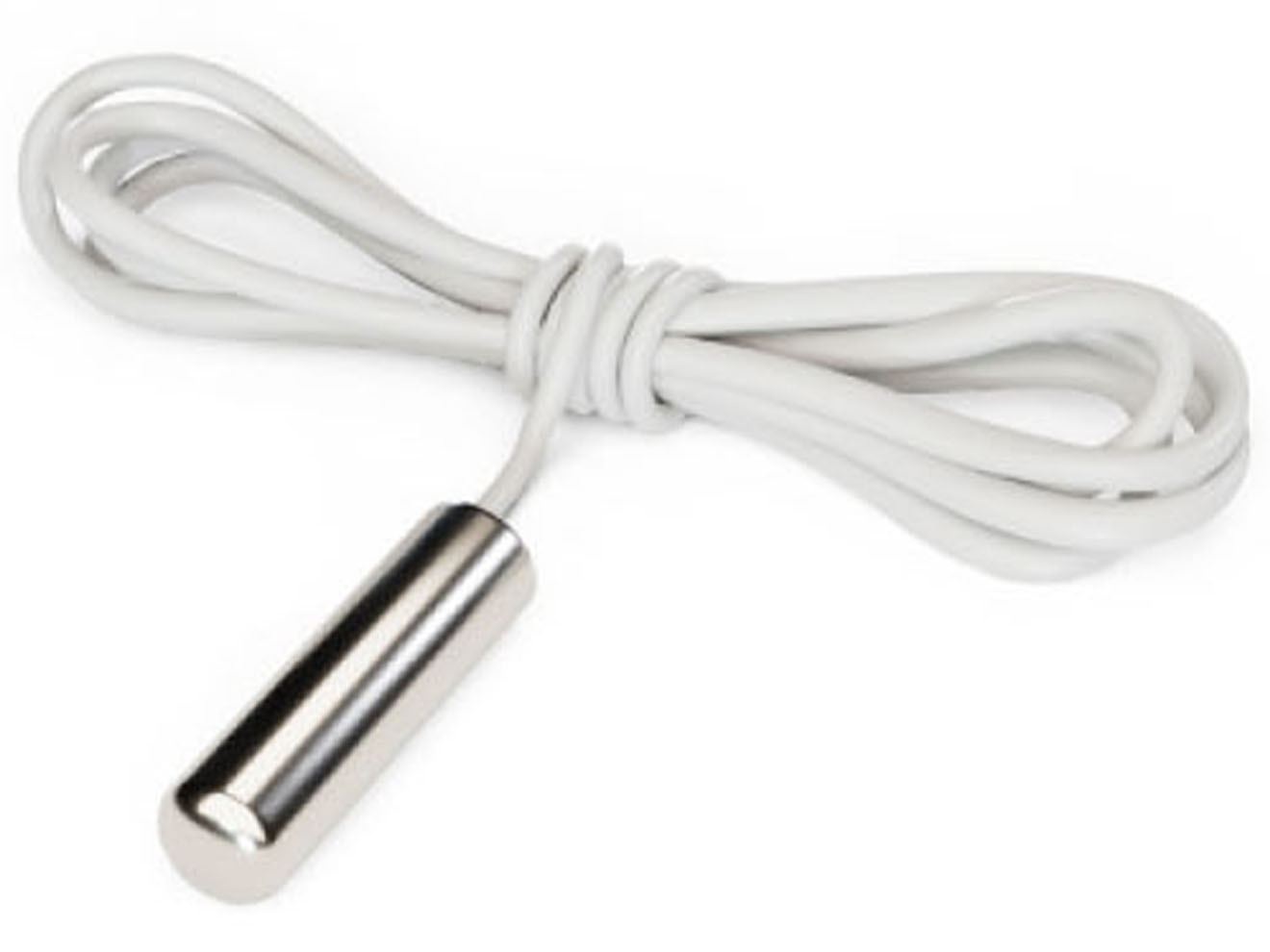

ACI Bullet Probe Thermistor

Double-encapsulated NTC thermistor temperature sensor with a 304 stainless steel bullet probe, fast 10-second response time, and sensor outputs from 1.8 kΩ to 100 kΩ.

Starting at $39.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Manual Product Specs

Features

  • Single sense point, two wire
  • 1/4in probe diameter, 304 stainless steel
  • 10 to 95% RH, noncondensing operating humidity range
  • 10 seconds nominal response time (63% Step Change)
  • -40 to 302°F operating temperature range
  • Nominal Sensor Output at 77°F, Lead Wire Colors
    • A/1.8K: 1.8 kΩ, (Red/Yellow)
    • A/CSI: 10 kΩ, (Green/Yellow)
    • A/2252: 2.252 kΩ, (White/Red)
    • A/10KS: 10 kΩ, (White/Blue)
    • A/3K: 3 kΩ, (White/Brown)
    • A/10K-E1: 10 kΩ, (Orange/Gray)
    • A/5K: 5 kΩ, (Red/Gray)
    • A/20K: 20 kΩ, (Brown/Blue)
    • A/AN (Type III): 10 kΩ, (White/White)
    • A/50K: 50 kΩ, (Brown/Yellow)
    • A/AN-BC: 5.238 kΩ, (White/Yellow)
    • A/100KS: 100 kΩ, (Black/Yellow)
    • A/CP (Type II): 10 kΩ, (White/Green)
  • Accuracy 32 to 158°F (0 to 70°C): ±0.36°F (±0.2°C) except:
    • A/10K-E1 Series: ± 0.3°C (±0.54°F)
    • A/1.8K Series: ±0.5°C at 77°F (25°C) and (±1.8°F) (±1.0°C)

The ACI bullet probe thermistor is a temperature sensor designed for air temperature monitoring applications. It features a 1 in. (25.4 mm) long, 304 stainless steel bullet probe with a single sensing point and two wire, non-polarity-sensitive design. The sensor is manufactured using ACI’s double encapsulation process to help eliminate the effects of moisture and improve thermal response. Multiple NTC thermistor output options are available, ranging from 1.8 kΩ to 100 kΩ at 77°F.

The series provides a nominal response time of 10 seconds and offers accuracy up to ±0.36°F from 32 to 158°F for most sensor types. Standard models include 24in etched PTFE lead wires, with plenum rated and zip wire options available. The sensor is rated for operation in 10 to 95% RH non condensing environments and is intended for air temperature measurement applications. The bullet probe should not be fully submerged in water.

ACI Thermistor Bullet Probe Series Applications:

  • Rooftop units
  • Air handlers
  • Discharge air temperature sensing
  • Supply air temperature sensing
  • Return air temperature sensing
  • Mixed air temperature sensing
  • Remote temperature sensing
  • Duct temperature monitoring
