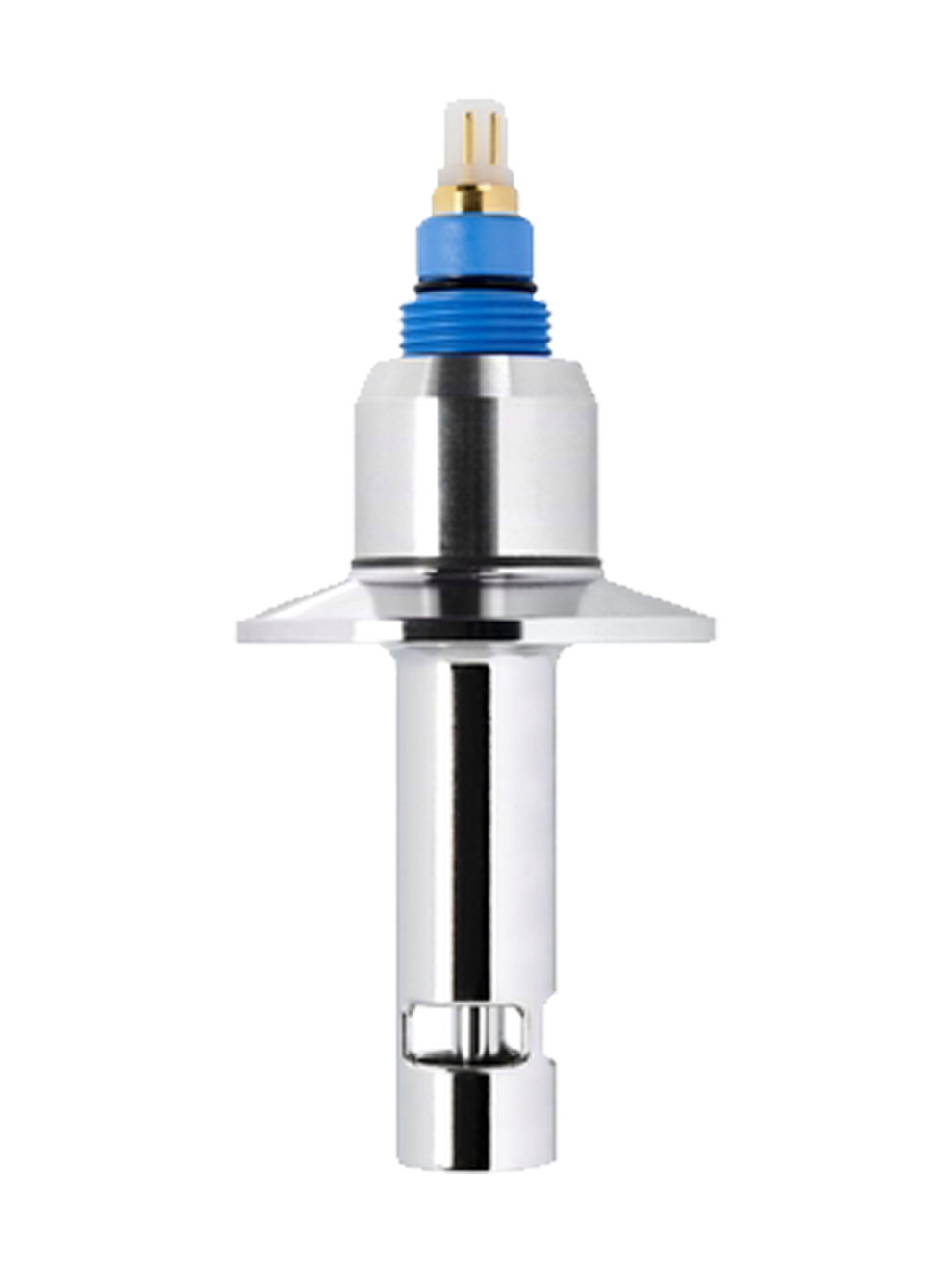

E+H Condumax CLS16B Analog Conductivity Sensor

Contacting sensor for hygienic applications.

Starting at $1,495.81
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 3-4 weeks
Product Manual Product Specs

Features

  • Measuring range: k=0,1: 0,04µS/cm - 500µS/cm
  • Process temperature:
    • Max. 248°F (302°F/30 min.)
    • Max. 120°C (150°C/30 min)
  • Process pressure:
    • Max. 174 psi at 68°F
    • Max. 12 bar at 20°C
  • Connection:
    • Process connection: Varivent, Neumo, Clamp
    • Cable: TOP68 connector or fixed cable
  • Hygienic 2-electrode conductivity sensor
  • Conductive conductivity cell measuring principle
  • Integrated Pt100 or Pt1000 temperature sensor
  • ATEX certification
  • IP68 ingress protection

The E+H Condumax CLS16B Analog Conductivity Sensor is an analog sensor for precise measurement in the low conductivity range of pure and ultrapure water. Its certified hygienic design complies with the relevant standards EHEDG, USP Class VI, and ASME-BPE. Various hygienic process connections ensure a versatile fit for the given process.

Condumax CLS16B measures conductivity in pure and ultrapure water for the monitoring of:

  • Ion exchangers
  • Reverse osmosis
  • Distillation
  • Water for injection (WFI)

With its international explosion protection approvals, such as ATEX, FM, CSA, and NEPSI, the analog sensor is suitable for hazardous area use.

Applications

  • Pharmaceuticals
  • Pure and ultrapure water
  • Food & beverage
  • Life sciences
