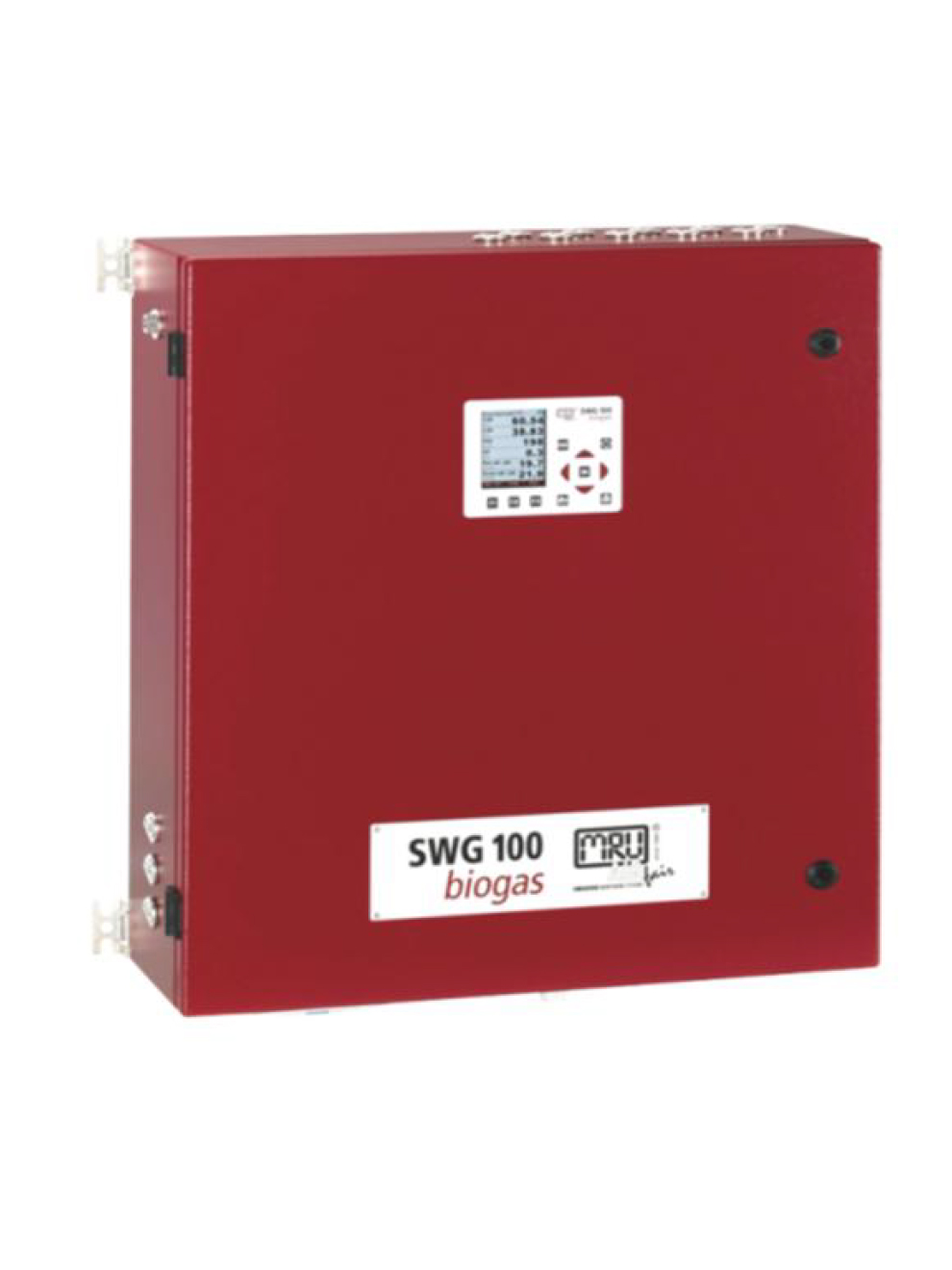

MRU SWG 100 BioGas Analyzer Gen 2

Up to 10 sites monitoring via time sharing; supports auto calibration.

$15,545.00

View Company Reviews
Part Number
  • 951101
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks

Features

  • Sampling from low suction -100mbar up to 250mbar
  • No dilution of sample gas required for O2/CO2/CH4
  • Direct, continuous & discontinuous measurement, with pressure and temperature compensation
  • Sample preparation:
    • Stainless steel gas fittings with 1/8in ID threads
    • Electric gas cooler (Peltier type)
    • Teflon particulate filter, internal Viton hosing
    • Sampling biogas with
    • Sample gas can include a maximum of 14ml/min condensate
    • Monitored and regulated sample flow: 40 to 60l/h
    • Sample venting: atmosphere pressure
  • System safety components:
    • Monitored cabinet ventilation fan with alarm
    • Stainless steel flow restrictor orifice
    • Sample gas shut-down solenoid valve
    • LEL (CH4) monitoring inside cabinet

The MRU SWG 100 BioGas Analyzer Gen 2 is designed for harsh industrial use, providing fast and reliable measurement with efficient gas prep. The analyzer supports automatic calibration, and provides sample flow from low suction up to high pressure gas. Direct and continuous/discontinuous measurement is provided. The analyzer also comes with multiple inputs and outputs: Ethernet, RS485 Modbus / Profibus / 4 to 20mA / alarm relays. No compressed air for dilution is needed.

Applications

  • Landfill sites
  • Anaerobic digesters
  • CHP/WTE cogeneration engines
  • Municipal or industrial wastewater treatment plants
  • Flare inlets/outlets
  • RNG production
  • Food or animal waste process plants
  • Coal bed methane sites
