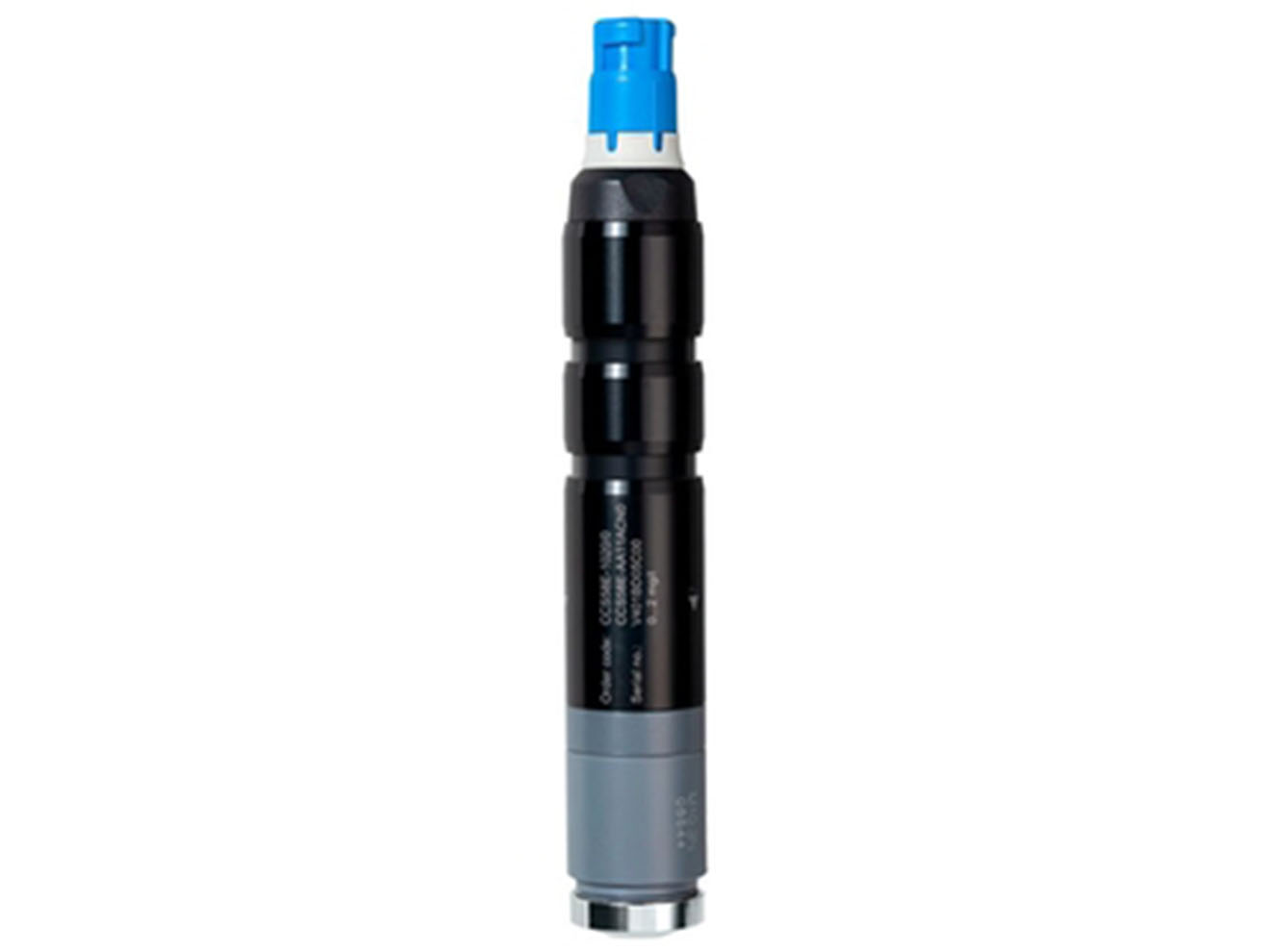

E+H Memosens CCS58E Digital Ozone Sensor

Ozone sensor with Memosens 2.0 technology, amperometric measurement, and a measuring range of 0 to 2 mg/L (ppm).

Starting at $2,430.92
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-3 weeks
Product Manual Product Specs

Features

  • Measurement range: 0 to 2 mg/L (ppm) ozone
  • Measuring principle: amperometric with membrane-covered sensor
  • Measured variables: ozone and temperature
  • Response time: T90 < 8 min (440 sec)
  • Process temperature: 32 to 110°F
  • Digital communication: Memosens 2.0 technology
  • Measurement error: ±2% and ±5 µg/L (ppb) of measured value
  • Electrolyte operating time: 3 to 6 months
  • pH range: 4 to 9
  • Protection rating: IP68
  • Conductivity range: 0.03 to 40 mS/cm
  • Pressure rating: 14.5 psig (29 psia max.)

The E+H Memosens CCS58E Digital Ozone Sensor is a digital sensor with Memosens technology for measuring ozone in water and wastewater applications. The sensor uses an amperometric measuring principle and provides a measuring range of 0 to 2 mg/L (ppm) ozone. Memosens technology enables digital signal transmission, automatic transfer of calibration data, and simplified sensor replacement.

The CCS58E features a membrane covered design with high resistance to surfactants for reliable operation in cleaning and disinfection processes. The sensor offers high specificity for ozone measurement with no cross sensitivity to free chlorine, free bromine, total chlorine, total bromine, hydrogen peroxide, or peracetic acid. Integrated sensor diagnostics support predictive maintenance through monitoring of operating data and calibration history.

E+H Memosens CCS58E Ozone Sensor Applications:

  • Wastewater monitoring
  • Drinking water disinfection
  • Process water monitoring
  • Hygienic packaging and bottling processes
