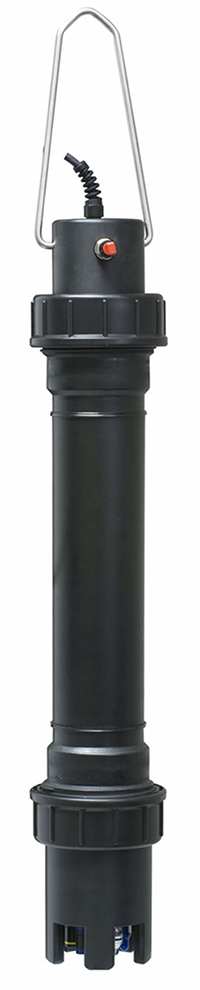

E+H ISEmax CAS40D Digital Ion-Selective Sensor

Digital Memosens sensor for continuous measurement of ammonium, nitrate, potassium, and chloride for the wastewater industry.

Starting at $8,171.60
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Nitrate and ammonium measured directly without the need for sample conditioning
  • Low maintenance thanks to automatic flushing unit
  • Installed directly on the basin rim
  • Easy handling due to storage of sensor-specific data
  • Measuring ranges:
    • Ammonium: 0.1 to 1000 mg/l (NH4-N)
    • Nitrate: 0.1 to 1000 mg/l (NO3-N)
    • Potassium: 1 to 1000 mg/l
    • Chloride: 1 to 1000 mg/l
  • 36 to 100°F (2 to 40°C) process temperature
  • 400mbar (160inH2O) max. permitted overpressure process pressure
  • 112mm (4.41inch) diameter
  • 510mm (20.08inch) immersion depth

The E+H ISEmax CAS40D digital ammonium and nitrate sensor is an ion-selective sensor designed for continuous measurement of ammonium, nitrate, and pH directly in municipal wastewater treatment basins. It is used in aeration basins to monitor ammonium and nitrate concentrations, support control of ammonium removal, and enable load-based aeration control. At the inlet to aeration basins, it measures pH-compensated ammonium loading to help assess incoming treatment demands.

The CAS40D sensor performs measurements directly in the basin without reagents, sample conditioning, measuring containers, or sample pumps. Optional potassium and chloride measurement compensates for ion cross-sensitivities to improve accuracy. An automatic flushing unit reduces maintenance requirements, while Memosens technology stores sensor-specific data to support reliable data transfer, simplified handling, and predictive maintenance.

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
CAS40D-AA1B1A7 10.00m Call for information 28 Call to order
CAS40D-AA1A1A7 10.00m Call for information 10 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
