ACI AcuCT Hinged Split-Core Series Current Transformer

Name: ACI AcuCT Hinged Split-Core Series Current Transformer
Brand: ACI
Price: 38.0 USD
Availability: BackOrder

Starting at $38.00

View Company Reviews

Manufactured

By ACI

Includes

FREE Ground Shipping on orders of $2,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 7-10 business days

Features

AC Current Monitoring
600 VAC, Category III Maximum Working Voltage
333mV Rated Output at 20/30/40/50/60/100/200 Amps
50/60Hz Operating Frequency Range
0.5% from 10-120% Accuracy of Rated Current
5 to 140°F (-15 to 60°C) Operating Temperature Range
Black Nylon Case Material, UL94V-0 Flammability Rating
Stripped and Tinned Lead Wire Connections
ULR, CE, and RoHS2 Compliant
5 Year Limited Warranty

This product is an accessory for the following products:

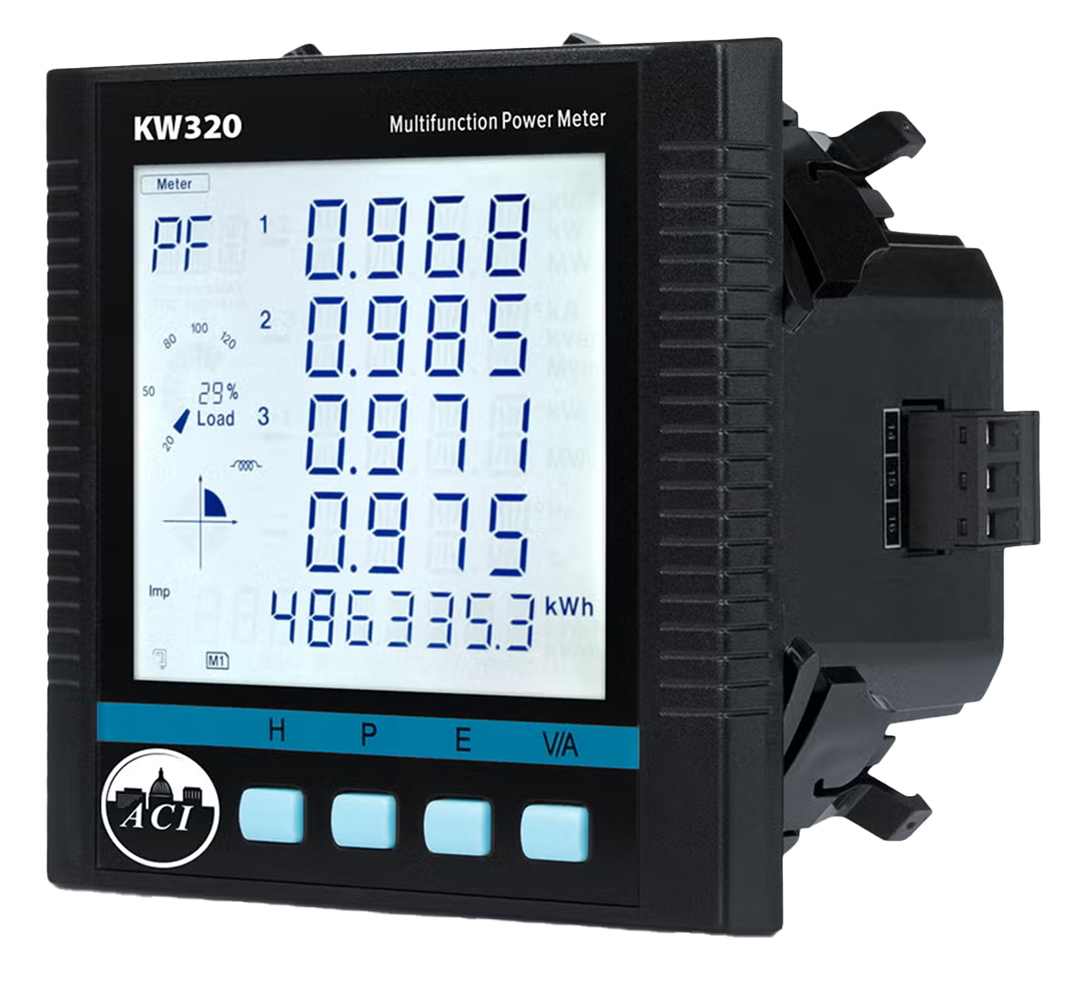

ACI KW320 Power Quality Meter

4-channel power meter, real-time true RMS measurement of Voltage, Current, Power, Frequency, Harmonics, Phase Angle, Demand, Unbalance Factor, Run Time, and Power Factor.

Starting at $1,186.00

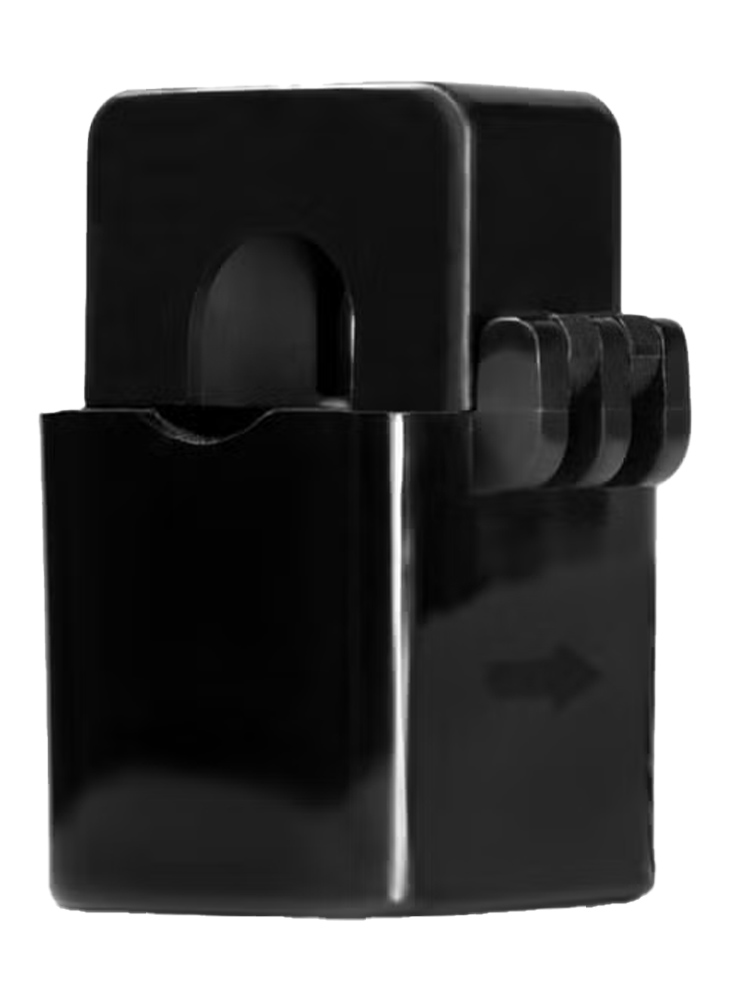

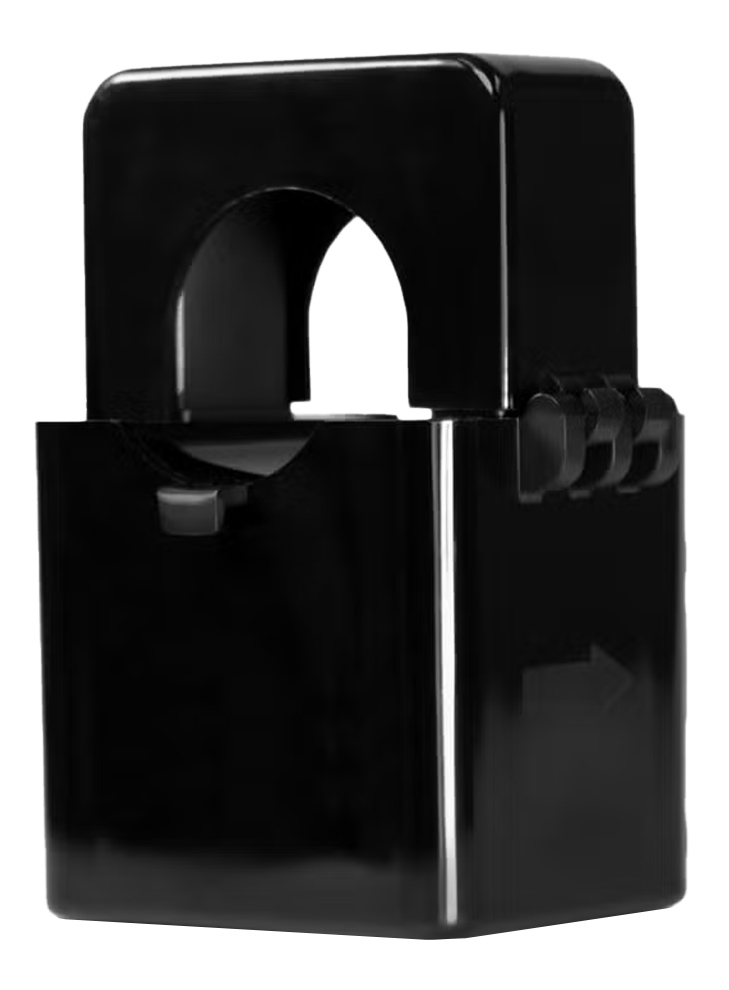

The ACI AcuCT Hinged Split-Core Series Current Transformer is designed to convert an AC operating current into a low voltage AC millivolt signal for use with microprocessor-based circuits that require maximum accuracy and precision. These ultra-compact and light-weight hinged split-core current transformers are designed for installation on branch circuits within the electrical panel. The AcuCT Hinged Split-Core Series is ideal for easy installation without disconnecting cables and come standard unterminated stripped and tinned lead wires for easy connection to any of the Single or 3 Phase ACI power meters.
