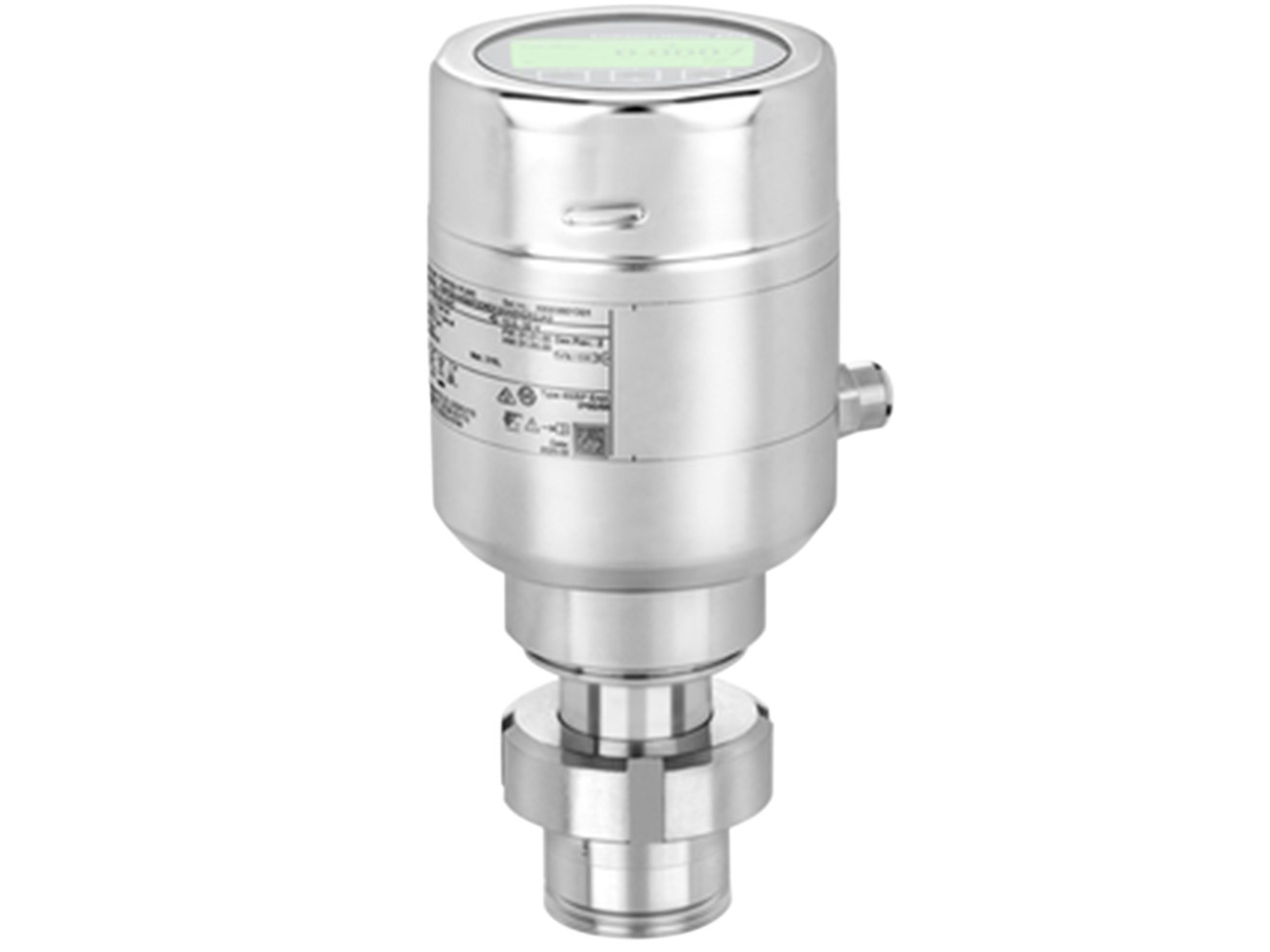

E+H Cerabar PMP63B Pressure Transmitter

Pressure transmitter with 4 to 20mA output, Bluetooth connectivity, HART communication, and pressure ranges up to 100 bar (1500 psi).

Starting at $1,468.97
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 2-4 weeks
Product Specs

Features

  • Pressure range: up to 100bar (1,500psi)
  • Accuracy: up to ±0.025%
  • Process temperature: up to 482°F
  • Output: 4 to 20mA analog
  • Turndown ratio: up to 100:1
  • Environmental protection: IP66/IP68
  • Operating temperature: -40 to 185°F
  • Power supply: 10.5 to 35 VDC
  • Safety approvals: SIL, hazardous area certifications
  • Display: large backlit local display
  • Remote operation: Bluetooth and PC-based configuration
  • Overpressure limit: up to 400bar (6,000psi)
  • Communications: HART, Bluetooth, PROFINET, PROFIBUS PA
  • Measurement types: gauge pressure, absolute pressure, level

The E+H Cerabar PMP63B pressure transmitter is designed for process pressure measurement in liquids, gases, vapors, and level applications. It supports 4 to 20mA analog, HART, PROFIBUS PA, and PROFINET over Ethernet-APL communication and is available with measuring ranges up to 100bar (1500psi). Depending on the configuration, the transmitter provides accuracy up to ±0.025% and process temperatures up to 482°F when used with a diaphragm seal.

The Cerabar PMP63B features semiconductor-based pressure measurement technology with high long term stability and overload resistance. Optional Bluetooth connectivity enables remote operation, while the backlit display improves readability during commissioning and operation. Heartbeat Technology provides on demand verification and monitoring functions to detect process anomalies, including dynamic pressure shocks and supply voltage changes.

The transmitter is available in standard, diaphragm seal, and contite measuring cell versions. Diaphragm seal configurations are suitable for high temperature processes, strong vibration environments, and difficult to access mounting locations. Devices with the contite measuring cell are designed for applications with high humidity, condensing moisture, frequent temperature cycling, and temperature shocks. The Cerabar PMP63B can also be used for level, volume, and mass measurements through pressure based calculation.
