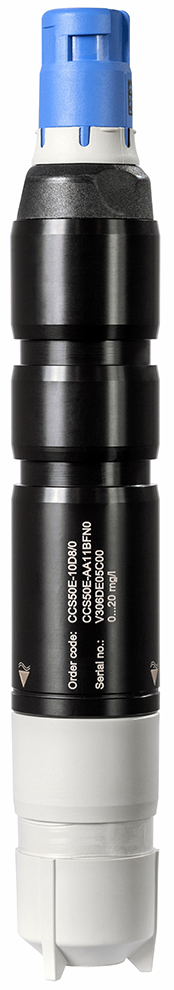

E+H Memosens CCS50E Digital Chlorine Dioxide Sensor

Memosens sensor for drinking water, process water, and multi-industry utilities.

Starting at $1,827.07
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 3-4 weeks
Product Manual Product Specs

Features

  • Amperometric measurement of dissolved chlorine dioxide
  • Closed amperometric 2-electrode measuring cell design with PVDF membrane
  • Measuring range:
    • Trace: 0 to 5 mg/l ClO2
    • Standard: 0 to 20 mg/l ClO2
    • High: 0 to 200 mg/l ClO2
  • 32 to 130°F (0 to 55°C) process temperature, non-freezing
  • Max. 2 bar abs (max. 29 psi abs) process pressure
  • Material:
    • Sensor shaft: POM
    • Membrane: PVDF
    • Membrane cap: PVDF
  • Inductive, digital connection head with Memosens

The E+H Memosens CCS50E digital chlorine dioxide sensor is designed for monitoring chlorine dioxide concentrations in drinking water, process water, and industrial utility applications. It provides measurements across a wide range, from trace levels to 200 mg/L, helping operators maintain effective disinfection while minimizing chemical overdosing. The sensor can also be used to verify the absence of chlorine dioxide in applications such as beverage production and reverse osmosis systems.

The sensor features Memosens 2.0 technology, which supports reliable data transmission, simplified installation, and faster polarization times. Its rapid response and long-term measurement stability support continuous process monitoring and control. The sensor can be pre-calibrated and exchanged quickly using plug-and-play functionality, reducing downtime. It is compatible with Flowfit CYA27 and immersion assemblies and can be integrated with Liquiline multiparameter transmitters for combined liquid analysis measurements.

E+H Memosens CCS50E Digital Chlorine Dioxide Sensor Applications

  • Cooling systems or towers
  • Process water
  • Beverage and reverse osmosis plants
  • Drinking water
