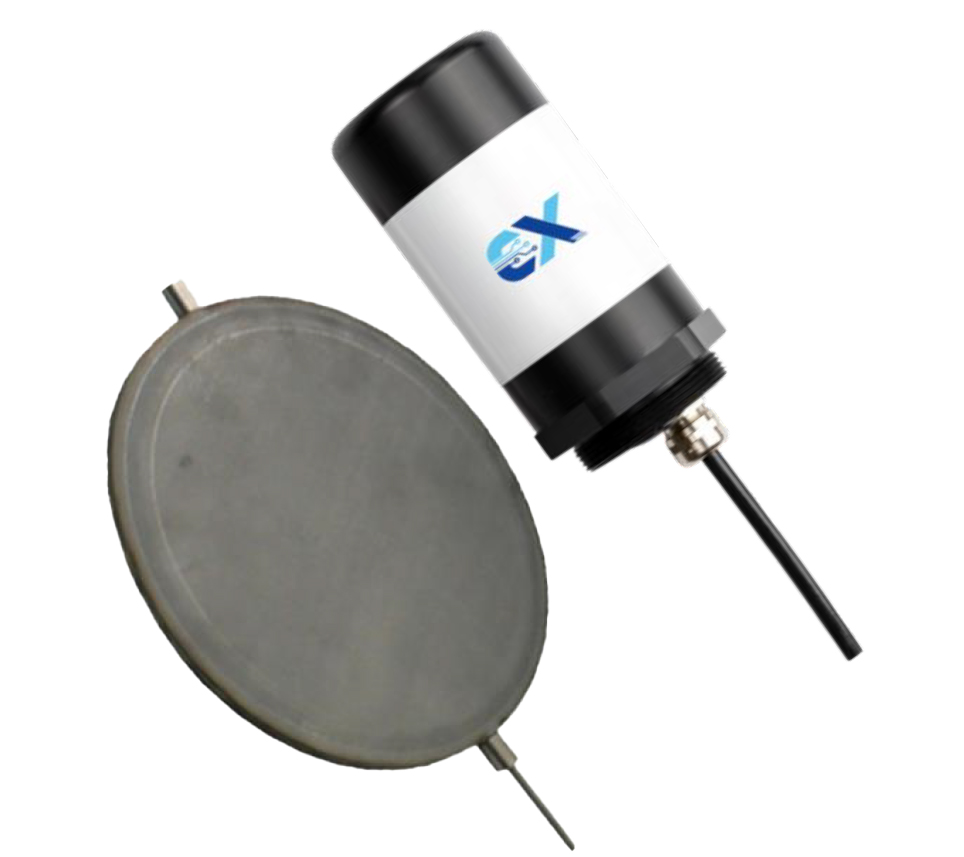

Ellenex PTE2-L Low Power Earth and Sludge Pressure Transmitter
Pressure sensor for land movement and sludge level monitoring with up to 20kg/cm² range. Compatible with all LoRaWAN frequencies.
Overview
Features
- 0 to 20kg/cm² sensor measurement range
- Accuracy: ±0.5% span
- Compensated temperature: -10 to 70°C
- Built-in Replaceable 3.6V Lithium Battery
- Vented Gauge Pressure Reference
- LoRaWAN 1.0.2revB, Class A
- AS923, EU868, US902-928, AU915-928 frequency zones
- Materials of construction:
- Special Stainless-Steel, high-grade epoxy potting
- Enclosure: ASA/POM
- IP65 rated sensor
- IP66 rated ASA enclosure available
Description
The Ellenex PTE2-L Low Power Earth and Sludge Pressure Transmitter is designed for a range of soil and sludge monitoring applications across the agriculture, oceanography, mining and construction industries. A pressure monitoring max of up to 20kg/cm² is available, with compatibility for all LoRaWAN frequencies.
Applications:
- Land movement monitoring
- Sludge level monitoring in water channels
- Road overload monitoring
- Rail foundation movement monitoring
- Pavement foundation movement
- Under-ground water in soil level monitoring
- Soil level monitoring
- Overload monitoring
Documents
