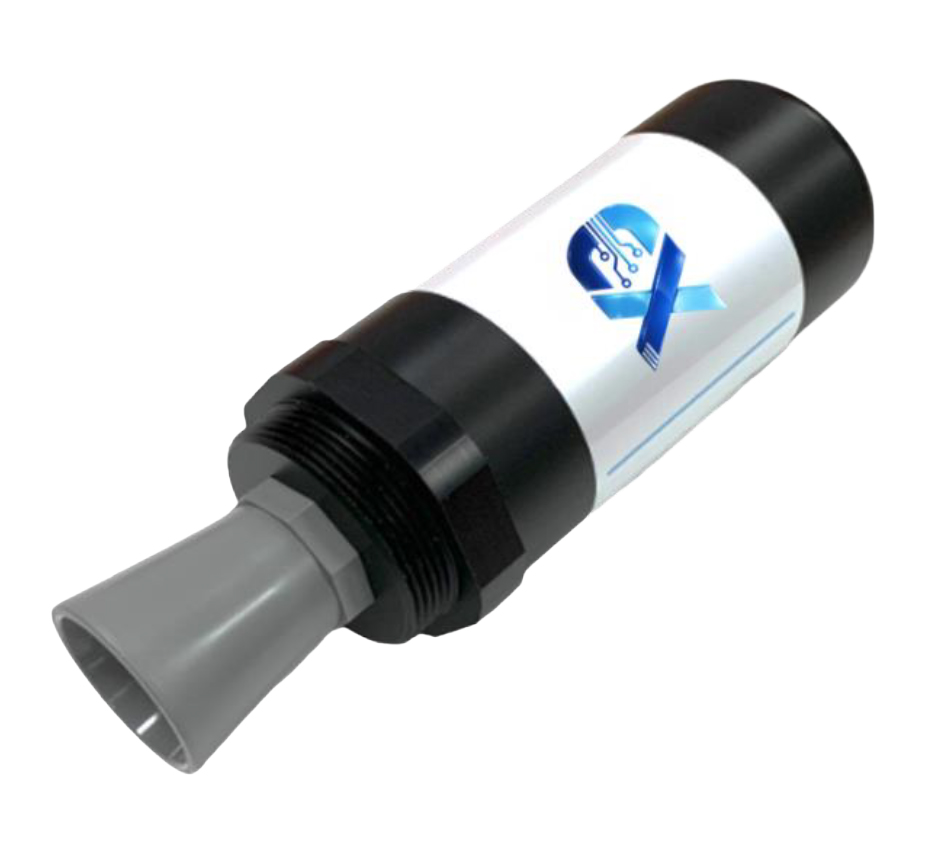

Ellenex DUC2-L Corrosion Resistant Low Power Ultrasonic Distance / Level Sensor
Corrosion resistant ultrasonic level and distance sensor with 10m range. For use with liquid and solid media. Compatible with all LoRaWAN frequencies. Cylindrical or rectangular enclosures.
Images may not represent all possible configurations of this product.
Overview
Features
- Measurement range: 10m
- Sensor minimum distance: 0 to 50cm
- 1mm resolution
- Compensated temperature: -10 to 60°C
- Built-in Replaceable 3.6V Lithium Battery
- LoRaWAN 1.0.2revB, Class A (Class C on request)
- AS923, EU868, US902-928, AU915-928 frequency zones
- External antenna as standard
- Device activation: no switch, always on
- Materials on construction:
- Enclosure: ASA / POM, IP65
- Sensor Head: Parylene coating applied to the surface of the Aluminum transducer
Description
The Ellenex DUC2-L Corrosion Resistant Low Power Ultrasonic Distance / Level Sensor is designed for reliable level detection across various applications involving wastewater and corrosive liquid media, with a 10m measuring range. The DUC2-L Series is compatible with all LoRaWAN frequencies, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the DUC2-L ensures efficient, extended operation.
Applications:
- Chemical Tanks
- Diesel Tank
- Liquid Delivery Systems
- Hydraulic Containers
- Liquid Storage
- Wastewater Tank
- Water Resources Level
- Food Industry
