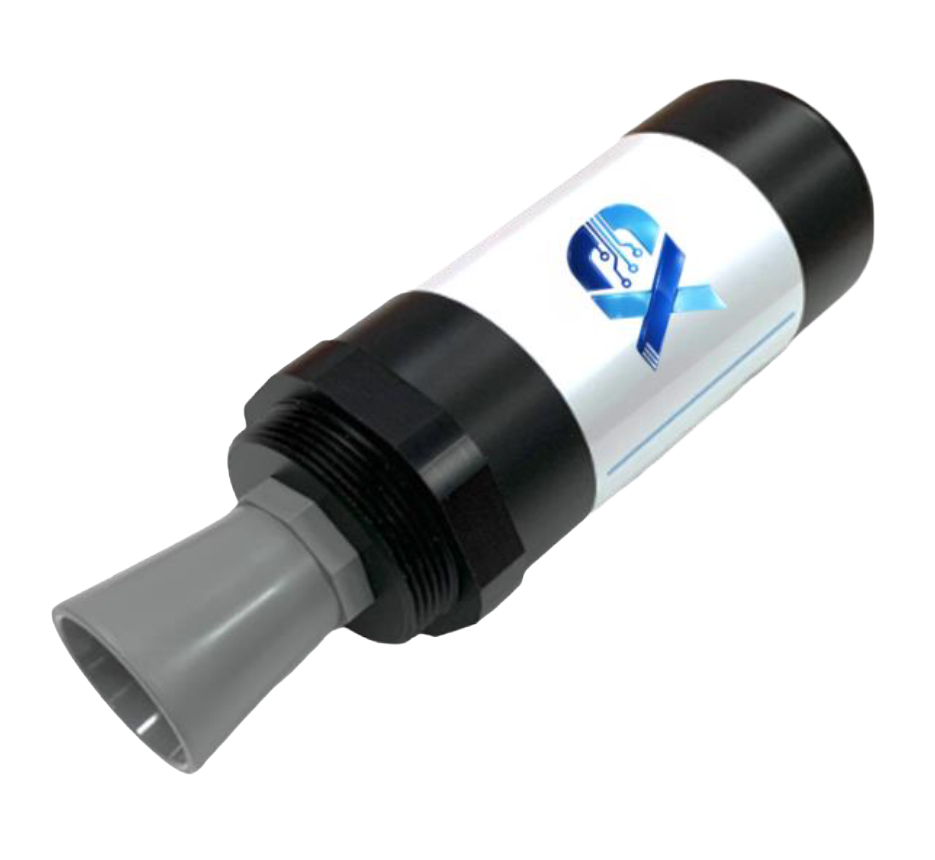

Ellenex DUC3-N Corrosion Resistant Low Power Ultrasonic Distance / Level Sensor
Corrosion resistant ultrasonic level and distance sensor with a 10m range. For use with liquid and solid media. Cat-NB1 (NB-IoT) or LTE Cat-M1 operation, IP68 rated enclosure.
Overview
Features
- Measurement range: 10m
- Sensor minimum distance: 0 to 50cm
- Compensated temperature: -10 to 60°C
- Built-in Replaceable 3.6V Lithium Battery
- Cat-NB1 (NB-IoT) or LTE Cat-M1 operated sensor
- Compatibility with common communication protocols
- UDP, LwM2M, MQTT, NIDD
- Internal antenna as standard
- Device activation: no switch, always on
- Materials on construction:
- Enclosure: POM
- Sensor Head: Parylene coating applied to the surface of the Aluminum transducer
- Cylindrical enclosure, IP68
Description
The Ellenex DUC3-N Corrosion Resistant Low Power Ultrasonic Distance / Level Sensor is designed for reliable level detection across various applications involving wastewater and corrosive liquid media, with a 10m measuring range. The DUC3-N Series offers NB-IoT or Cat-M1 communication standards, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the DUC3-N ensures efficient, extended operation.
Applications:
- Chemical Tanks
- Diesel Tank
- Liquid Delivery Systems
- Hydraulic Containers
- Liquid Storage
- Wastewater Tank
