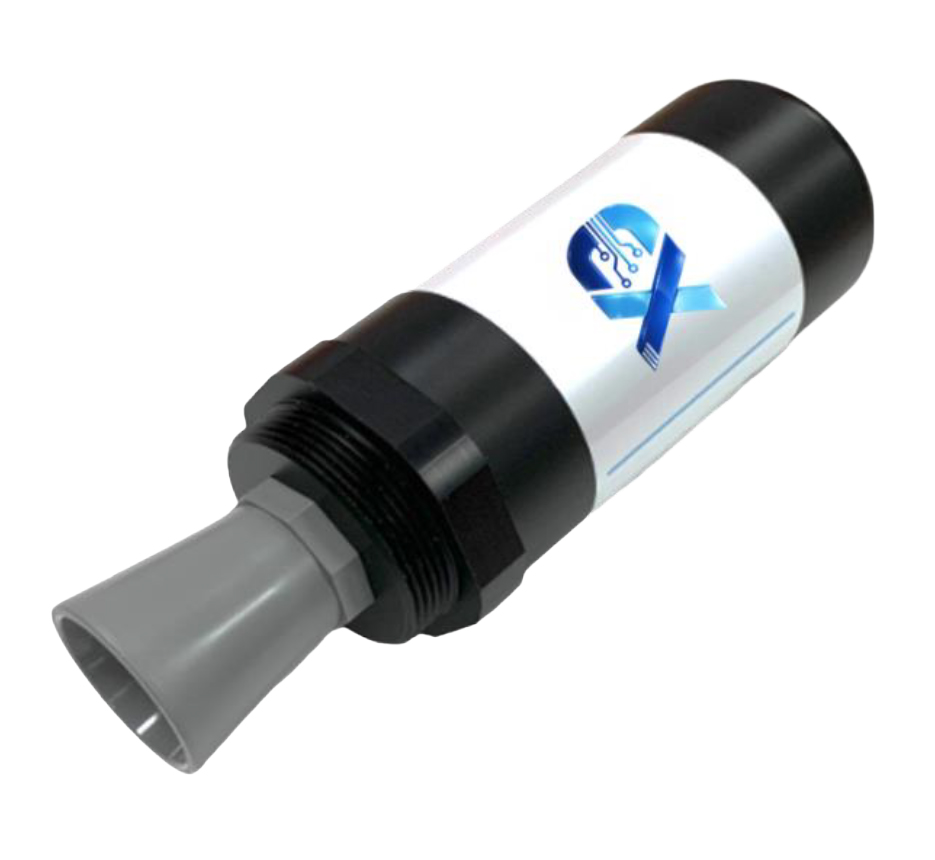

Ellenex DUG2-N Low Power Ultrasonic Distance / Level Sensor

Ultrasonic level and distance sensor with inbuilt GPS, 10m range, and 1mm resolution. For use with liquid and solid media. LTE Cat-M1 operation.

Starting at $752.40

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Specs

Features

  • Measurement range: 10m
  • ± 1% of span
  • 1mm resolution
  • Sensor minimum distance:
    • 0 to 50cm for 10m range
    • 0 to 20cm for 5m range
  • Built-in Replaceable 3.6V Lithium Battery
  • LTE Cat-M1 operated sensor
  • Compatibility with common communication protocols
    • UDP, LwM2M, MQTT, NIDD
  • Geo-location features: GPS, GLONASS, BeiDou/ Compass, Galileo, QZSS
  • GNSS accuracy: <5m
  • Internal antenna as standard
  • Materials:
    • Enclosure: ASA or POM, IP66 rating

The Ellenex DUG2-N Low Power Ultrasonic Distance / Level Sensor is designed for reliable level detection across various applications including tank level monitoring for water, diesel, corrosive liquids, as well as long range object detection. The DUG2-N Series offers Cat-M1 communication standards, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the DUG2-N ensures efficient, extended operation. The inbuilt GPS system offers reliable data, with GNSS accuracy of within 5 meters.

Applications:

  • Water Tank Level Monitoring
  • Corrosive Liquid Storage Level Monitoring
  • Diesel Tank Level Monitoring
  • Distance Measurement
  • Flood Monitoring
  • People Counting
  • Open Channel Level Monitoring
  • Long Range Object Detection
