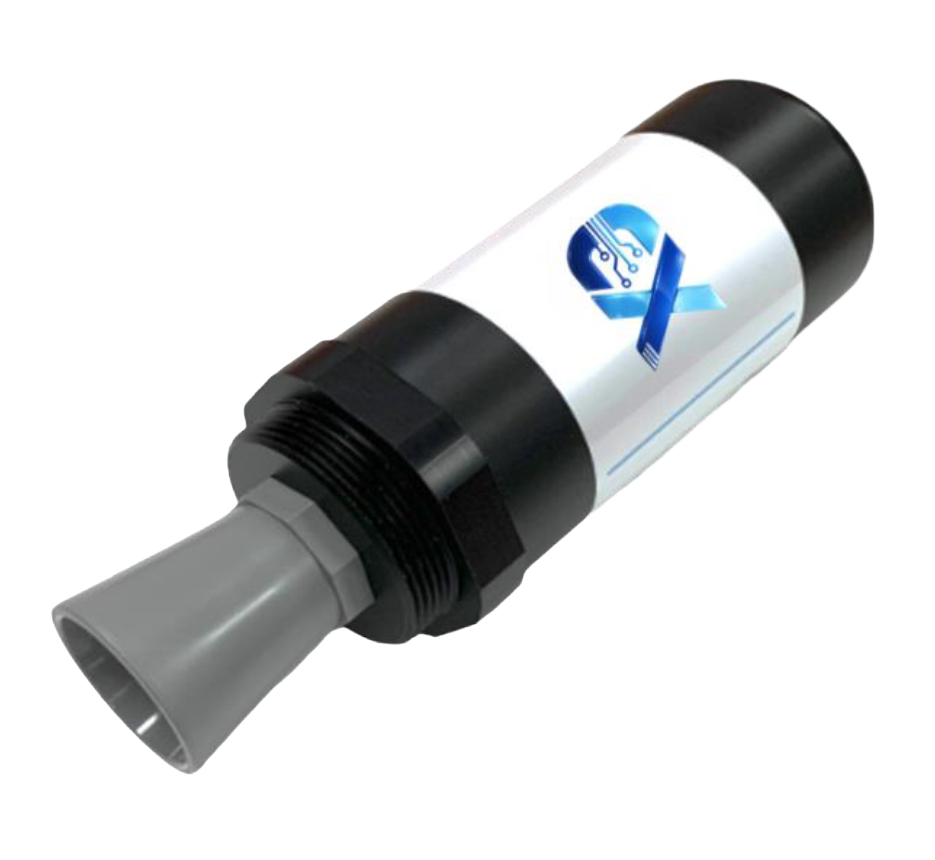

Ellenex DUS2-L Low Power Ultrasonic Distance / Level Sensor

Ultrasonic level and distance sensor with 10m range, and 1mm resolution. For use with liquid and solid media. Compatible with all LoRaWAN frequencies.

Starting at $709.50

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Specs

Features

  • Measurement range: 10m
  • ± 1% of span
  • 1mm resolution
  • Sensor minimum distance: 0 to 50cm for 10m range
  • Built-in Replaceable 3.6V Lithium Battery
  • LoRaWAN 1.0.2revB, Class A (Class C on request)
    • AS923, EU868, US902-928, AU915-928 frequency zones
  • Materials of construction:
    • Enclosure: ASA or POM
  • External antenna as standard
  • Device activation: no switch, always on
  • IP65, UV Protected enclosure

The Ellenex DUS2-L Low Power Ultrasonic Distance / Level Sensor is designed for reliable level detection across various applications including tank level monitoring for water, diesel, and corrosive liquids, as well as long range object detection. The DUS2-L Series is compatible with all LoRaWAN frequencies, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the DUS2-L ensures efficient, extended operation.

Applications:

  • Water Tank Level Monitoring
  • Corrosive Liquid Storage Level Monitoring
  • Diesel Tank Level Monitoring
  • Distance Measurement
  • Flood Monitoring
  • People Counting
  • Open Channel Level Monitoring
  • Long Range Object Detection

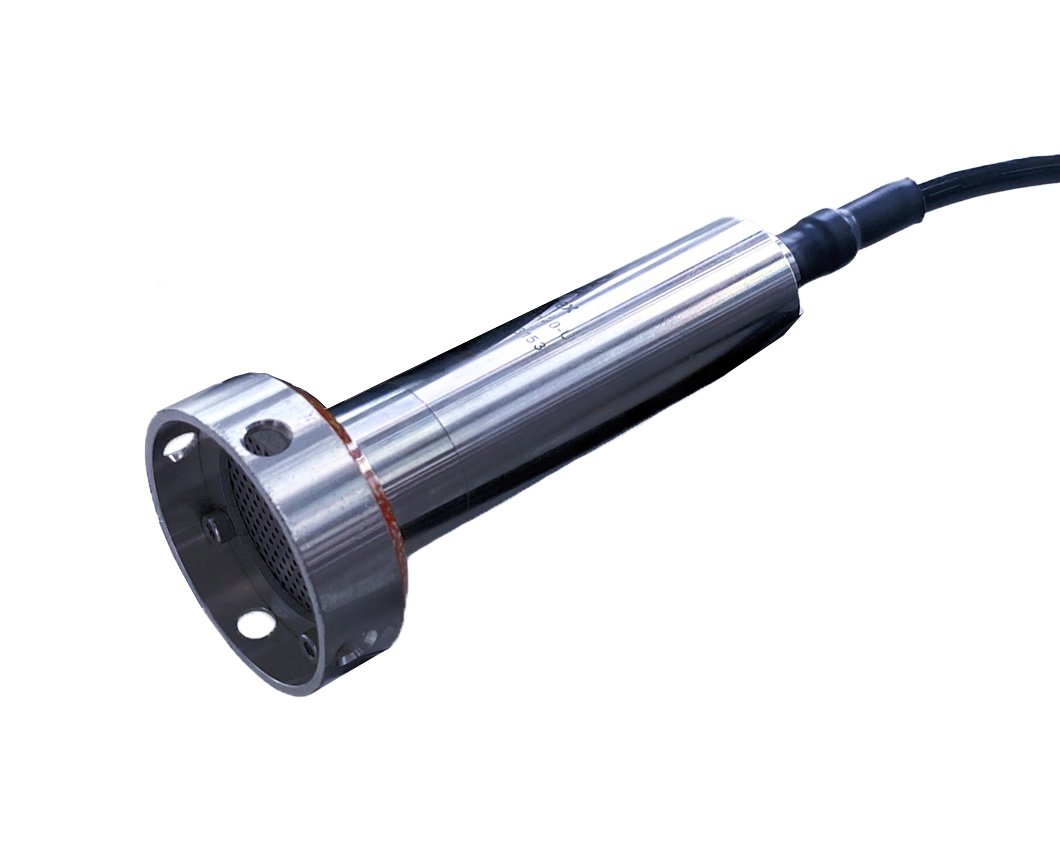

Ellenex CPSH Clog Prevention Sensor Head
