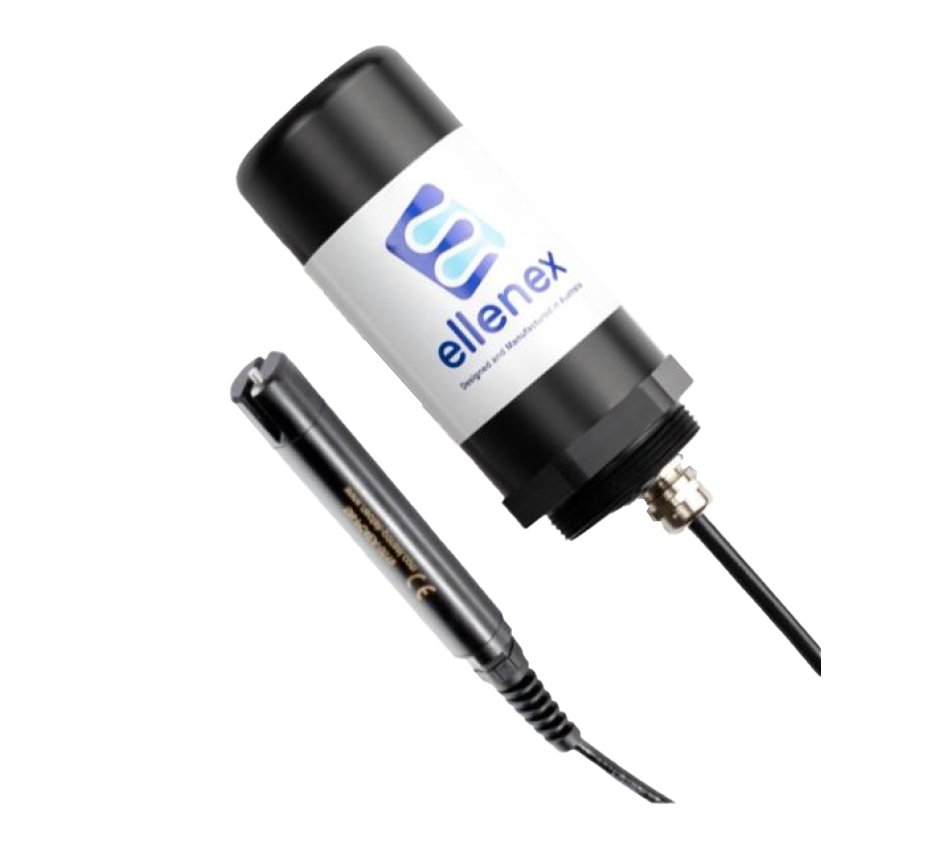

Ellenex CSD2-N Low Power Conductivity and Salinity Sensor

Conductivity measurement with up to 200mS/cm and down to 0 to 200μS/cm ranges, salinity measurement from 5 to 60g/Kg. Cat-NB1 (NB-IoT) or LTE Cat-M1 operation.

Starting at $1,732.50

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 6-8 weeks
Product Specs

Features

  • Conductivity measurement range(s):
    • 0-200μS/cm, 0-2000μS/cm, 0-20mS/cm, 0-200mS/cm
  • Salinity measurement range: 5 to 60g/Kg
  • TDS-KCI measurement range: 0 to 133000ppm
  • ±1 % full span accuracy
  • 0.01 to 1 resolution according to range
  • 0 to 50°C operating temperature
  • Built-in Replaceable 3.6V Lithium Battery
  • Cat-NB1 (NB-IoT) or LTE Cat-M1 operated sensor
  • Compatibility with common communication protocols
    • UDP, LwM2M, MQTT, NIDD
  • Materials of construction:
    • Sensor Head: PVC, DELRIN, stainless steel
    • Enclosure: ASA or POM
  • Internal antenna as standard
  • IP66 or IP68, UV Protected enclosure
    • IP68 sensor head

The Ellenex CSD2-N Low Power Conductivity and Salinity Sensor is designed for reliable measurement of the conductivity and salinity of liquids across various industries including water/wastewater, oil/gas, mining and construction. The CTR2-N Series offers NB-IoT or Cat-M1 communication standards, and delivers high-accuracy performance. Units feature excellent durability and high resolution operation in harsh environments. Designed with low power consumption, the CSD2-N ensures efficient, extended operation, with a pre-configured interface which removes the need for additional programming or hardware setting.

Applications:

  • Bore Hole Mineral Level
  • Wastewater Tank
  • Water Resources
  • Industrial Wastewater
  • Surface Water, Rivers and Catchments
  • Regulatory Automated Reporting
  • Sea Water
  • Drinking Water
