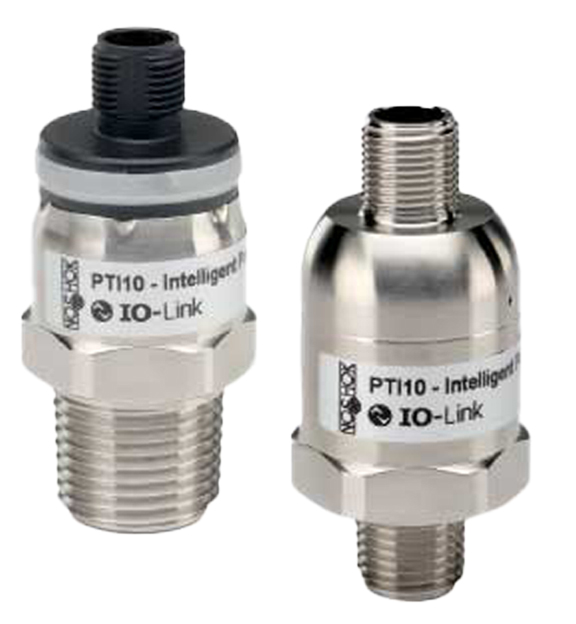

NOSHOK PTI10 Series Intelligent Pressure Transmitter with IO Link
Pressure monitor or electronic PNP switch, compound and standard ranges from 1 to 1000bar.
Overview
Features
- Pressure ranges: 1 to 1000psig (compound and standard)
- Accuracy: ≤1.0% of span (optional ≤0.5% of span)
- Response time: <200ms
- Service life: 100+ years
- Temperature ranges:
- media -22 to 212°F (-30 to 100°C)
- ambient -22 to 212°F (-30 to 100°C)
- Humidity: 45 to 75% r.h.
- Output:
- 2 outputs, individually adjustable via IO-Link (PNP)
- 250mA switching current
- Power requirement: 10 to 32VDC
- PBT GF30, 316L Stainless Steel
- IEC 60529
- Housing/Connection/Measuring Element Material: 316L Stainless Steel
- Environmental rating: IP65 and IP67
- RFI, EMI and ESD protections
Description
The NOSHOK PTI10 Series Intelligent Pressure Transmitter with IO Link is specifically designed for pressure monitoring or as an electronic PNP switch for process control. It's integrated diagnostic functions with multicolor LED status display for easy maintenance. The PTI10 simplifies machines integration with product specific drivers. It's fully welded electrical connection is available for harsh and high vibration environments.
Applications
- Hydraulics and pneumatics
- Automotive
- Pumps and compressors
- Refrigeration controls
- Mobile equipment
- General Industiral
- Liquid Cooled Load Banks for Data Centers
