Istec SpeedSys T30 Speed Monitor

Three-channel tachometer with two configurable high speed relays per channel for delivering speed monitoring functions to rotating equipment.

$3,709.23

View Company Reviews
Part Number
  • ISTSSYT303
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Manual Product Specs

Features

  • 3 independent channels
  • 8ms relay hardware response time
  • 0.05% measurement accuracy
  • 0.3Hz to 35kHz frequency range
  • 4-20mA analog signal
  • Signal filter and line amplifier
  • 6 high-speed relays
    • 3 double pole single throw
    • 3 single pole single throw
  • 3 sensor inputs
  • 3 digital inputs
  • 3 analog outputs
  • 3 frequency outputs
  • 3 redundant power supply
  • 1 Modbus TCP

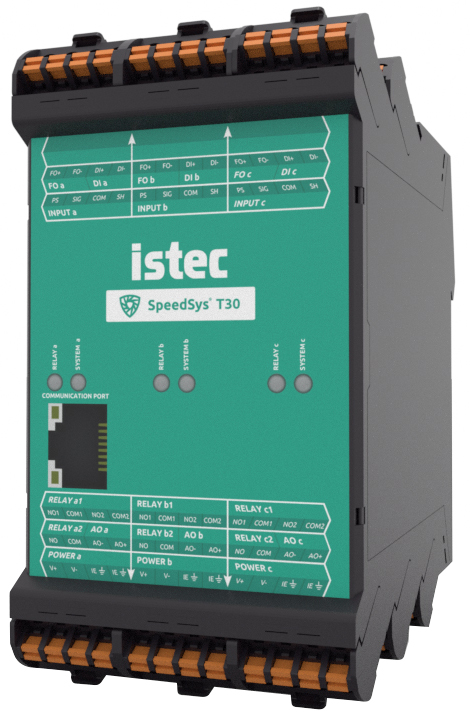

The Istec SpeedSys T30 speed monitor is a three-channel speed monitor and switch for rotating machinery, designed for installation on a DIN rail. It supports input signals from 3-wire voltage sensors (Hall-effect and proximity) and 2-wire voltage sensors (MPU), and includes six relays for control and alarm functions. As part of the SpeedSys tachometer series alongside the T10, T11, and T20, the T30 is intended for integration into a range of speed monitoring applications.

The T30 provides monitoring functions such as overspeed, underspeed, acceleration, creep, standstill, reverse rotation, and dynamic sensor diagnostics. It features triple redundant sensor inputs, digital input signals, and a redundant power supply, along with Modbus communication capability. The unit can also function as an extension to the SpeedSys 200/300 SIL-rated overspeed protection system, adding relays, monitoring features, and enhanced Modbus communication.

Istec SpeedSys T30 Speed Monitor Applications

  • Aeroderivatives
  • Micro turbines
  • Wind turbines
  • Gas and steam turbines
  • Hydro turbines (Kaplan, Francis, Pelton)
  • Compressors
  • Expanders
  • Marine applications
  • Elevators
  • General automation
