Honeywell MIDAS S2 Gas Monitoring System
Replacement transmitter for the MIDAS Gas Monitoring System. Uses a dependable sensor technology to detect more than 35 key toxic, ambient, and flammable gases.
Effective August 4th, 2025 Honeywell has added a 16% surcharge for this product. The surcharge will appear as a separate line item on each sales order.
- By Honeywell
Overview
Features
- Detects 35 key toxic, ambient, and flammable gases
- Monitors up to 30m for accurate detection
- Bright LEDs and 2.4in display show alerts instantly
- PoE supports power, control, and communication via one cable
- Relays, 4 to 20mA, and Modbus TCP/IP TCP Ethernet output
- Compact design with front-access sensor replacement
- Extended calibration and diagnostics reduce maintenance
- Password-protected interface ensures security
Description

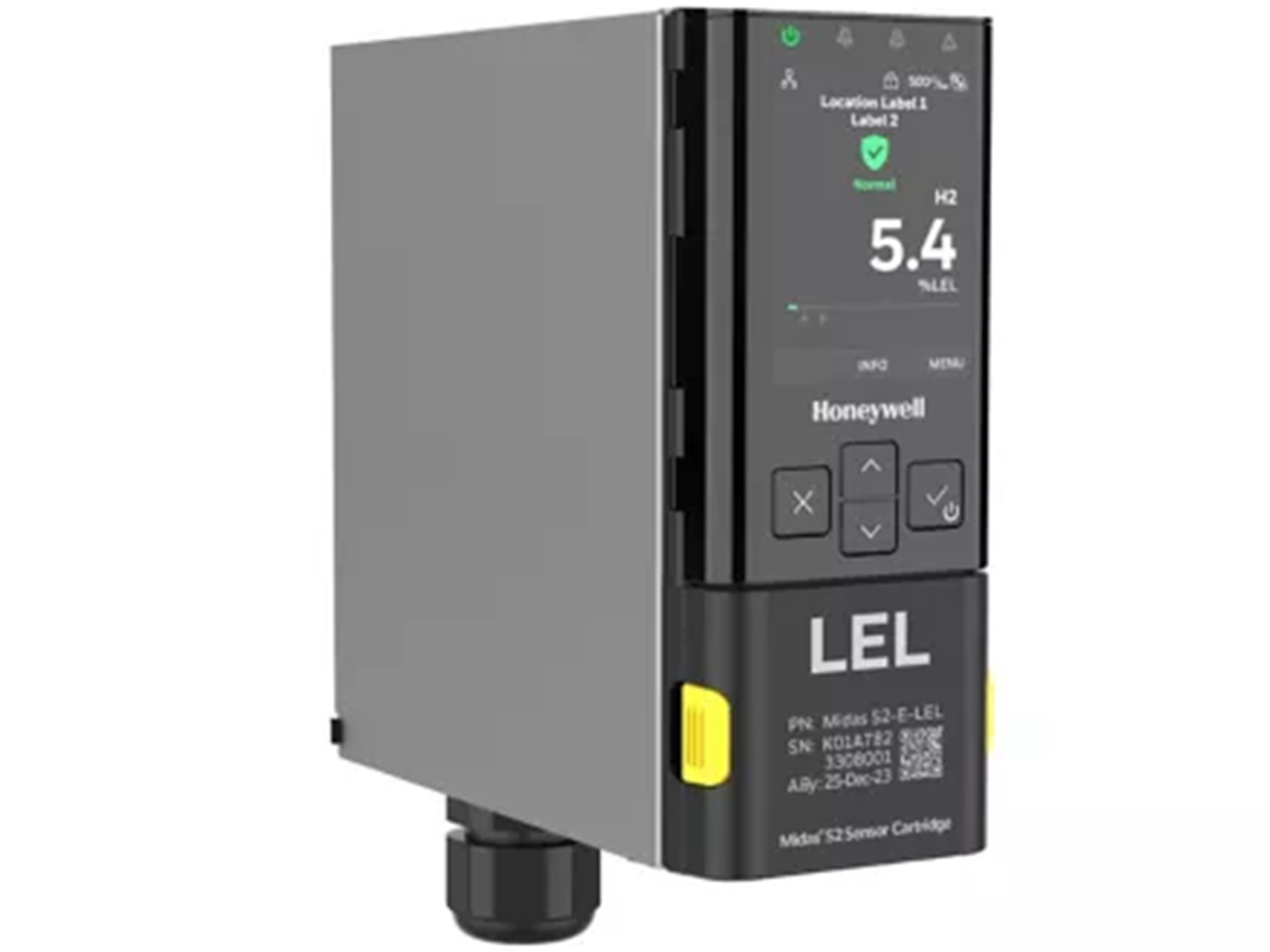

The Honeywell MIDAS S2 is a modular gas detector designed for use in semiconductor, laboratory, and light industrial environments. It can detect over 35 toxic, ambient, and flammable gases and monitor points up to 30 meters away. The device regulates flow to maintain accurate detection and supports standard power and communication outputs, including relays, 4 to 20mA analog, and Modbus TCP/IP or Ethernet.

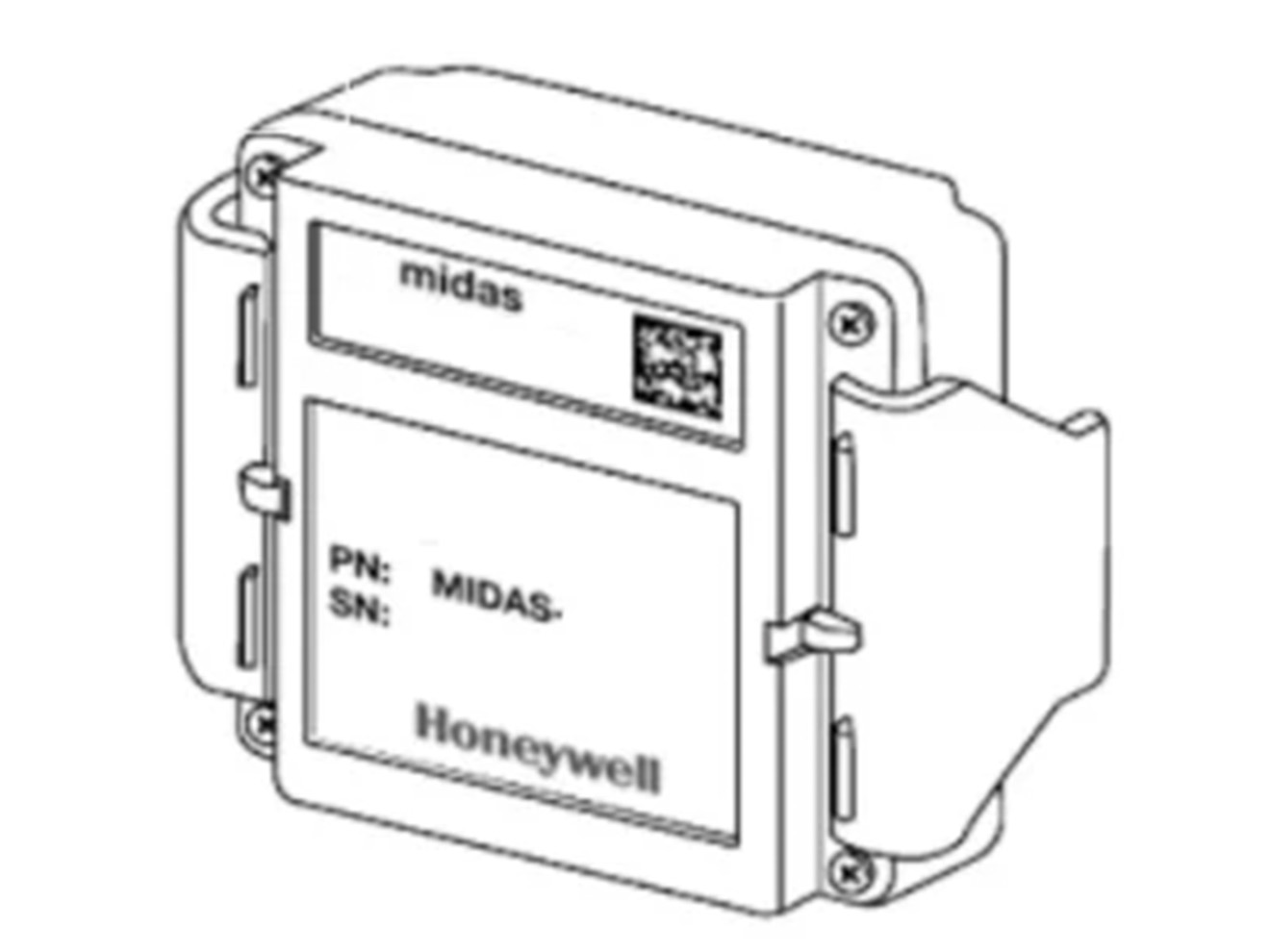

The MIDAS S2 uses factory calibrated, plug-and-play sensor cartridges, which simplifies replacement and reduces calibration errors. It includes a 2.4-inch color display with LEDs for visual alerts and a keypad interface for basic control. Password protection helps maintain system security, and the unit can be powered via standard 24 VDC or Power over Ethernet (PoE).
Honeywell MIDAS S2 Gas Monitoring System Applications:
- Semiconductor processing
- Light industrial manufacturing
- University laboratories
- Aerospace
- Wastewater gas monitoring
