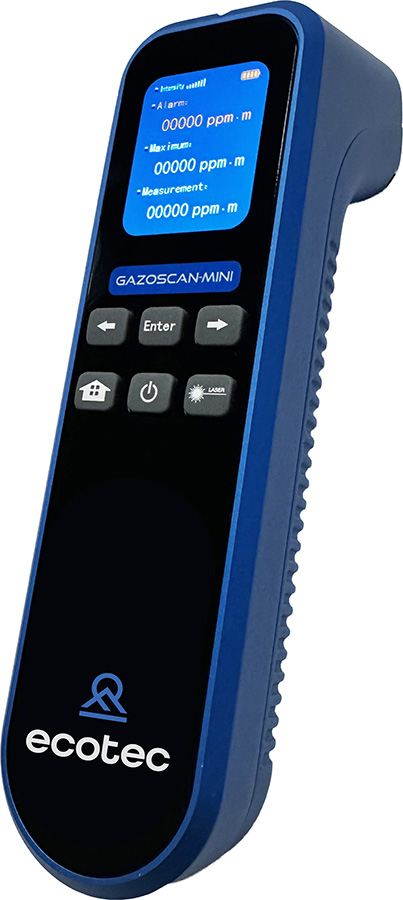

Ecotec Gazoscan Mini Remote Methane Detector

Ultra-portable, intrinsically safe TDLAS methane detector with 15-meter detection range, fast response, and high sensitivity for safe, remote leak detection.

$6,950.00

View Company Reviews
Part Number
  • GM-KIT
Manufactured
Includes
Availability
  • Usually ships in 3-5 business days
Product Specs

Features

  • Tunable Diode Laser Absorption Spectroscopy (TDLAS) measurement principle
  • Methane (CH4) gas selectivity
  • 0.0 to 99,999 ppm per meter CH4 measurement range
  • ±10% of reading measurement accuracy
  • 5 ppm per meter CH4 detection threshold
  • 50ft (15m) detection distance
  • 0.1s measuring speed
  • User-configurable thresholds with audible and vibration alarms
  • Self-calibrating
  • Rechargeable internal lithium battery
  • 1.6in OLED display
  • IP65

What's in the Box

  • Wrist strap, carrying case
  • 2.1A USB charger
  • USB-C to A charging cable
  • Manual

The Ecotec Gazoscan Mini remote methane detector is a handheld, short-range remote methane detector capable of identifying leaks at distances of up to 15 meters. It is intended for use around outdoor gas pipelines, digesters, compressors, and industrial gas sites. Audible and vibration alerts are activated when user-defined thresholds are exceeded, supporting on-site monitoring during inspections.

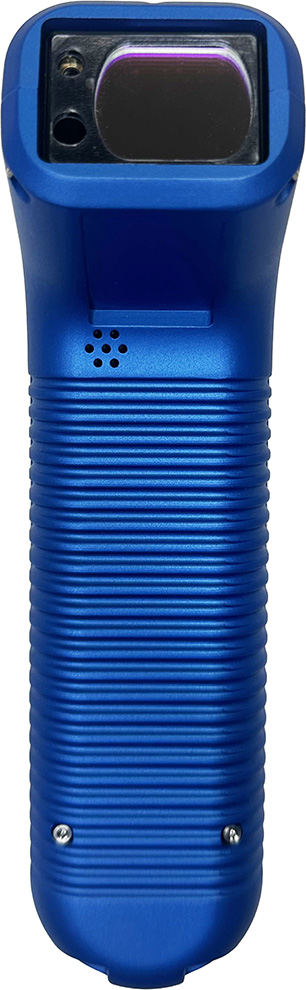

The Gazoscan Mini uses tunable diode laser absorption spectroscopy (TDLAS) to selectively detect methane. A laser beam is directed toward a target area, where methane in the beam path partially absorbs the light; the reflected signal is then analyzed by the device, with results displayed immediately. The Gazoscan Mini is intrinsically safe, self-calibrating, and allows operators to scan a full 360° area from a single location to identify surface and penetration emissions without direct contact.

The Gazoscan range, including the Gazoscan Mini, provides a methane sensitivity of 5 ppm per meter and a response time of 0.1 seconds. The instruments are designed for long-term field use, with an expected operational life of up to 10 years. User-set audible and vibration alerts enable scanning over wide areas without the need for reflectors, supporting routine inspection and maintenance across gas compression, biogas, and industrial applications.

Ecotec Gazoscan Mini Remote Methane Detector Applications

  • Gas networks and components
  • Engines and compressors
  • AG lagoons and digesters
  • Landfills
  • CNG stations and vehicles
