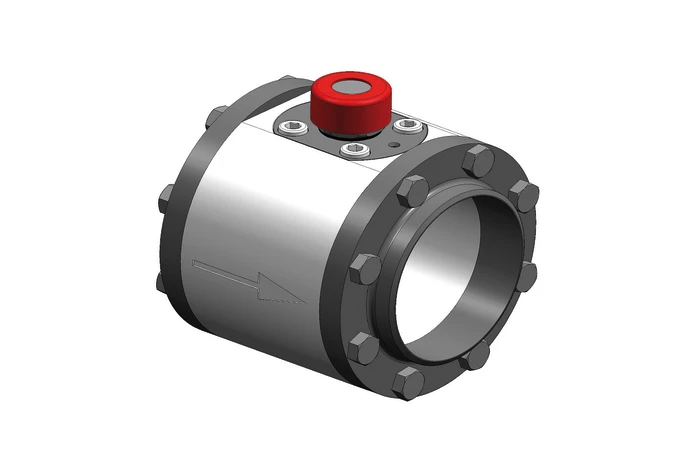

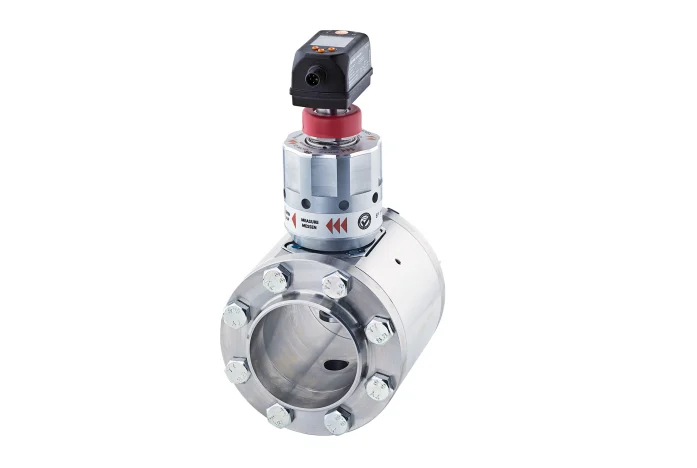

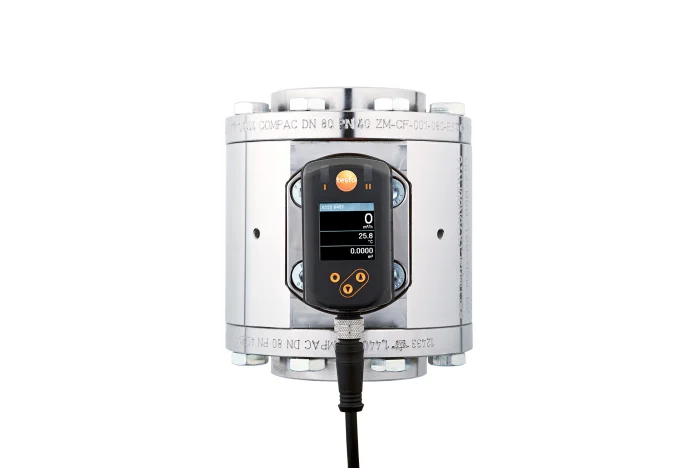

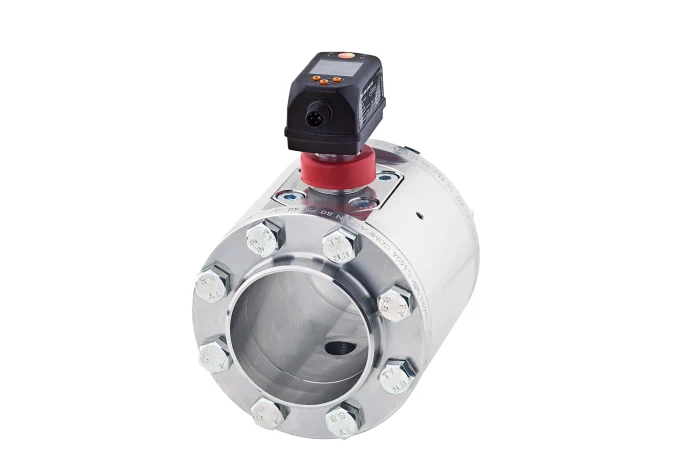

Testo 6456 / 6457 Compressed Air Meter
Three measurement parameters: flow rate, totaliser and temperature.
Overview
Features
- 2.5 to 10in (DN 65 to DN250)
- 0 to 100,000,000 m³ | 0 to 353,146,667.2 scf measuring/adjustment range for flow-through quantity
- -1 to 16 bar pressure range (6456)
- -1 to 20 bar display range (6456)
- 16 bar (> DN200 14 bar) pressure resistance
- 14 to 140°F temperature measuring range
- -11.2 to 165.2°F temperature display range
- 14 to 140°F medium temperature
- 18 to 30 VDC operating voltage
- < 80 mA current consumption
- Patented quick-change fitting that allows the measuring probe to be removed under pressure (6457)
What's in the Box
- Compressed air meter for diameters DN65 – 250 (2½in to 10in)
- Welding flange
- Instruction manual
- Factory certificate
Description
The Testo 6456 / 6457 Compressed Air Meter features accurate compressed air consumption measurements, consumption and leak monitoring and flow measurements in a compressed air system. The compressed air meter can also be used to carry out a peak load analysis in order to determine whether the user is generating compressed air of sufficient capacity. This creates transparency when it comes to compressed air consumption and can help save energy, reduce costs and implement a targeted environmental management system (e.g. as per ISO 50001 or ISO 14001).
