Overview

Features

  • -454 to 3308°F measurement range
  • -40 to 284°F temperature range
  • ±0.9 °F accuracy (probe dependent)
  • 100 Ω maximum thermocouple resistance
  • 1 reading per second up to 1 reading every 24 hours
  • IP50 rating
  • SMP thermocouple connector
  • Digital calibration through software
  • Manual or timed stop mode
  • Thermocouple sensors purchased separately

Description

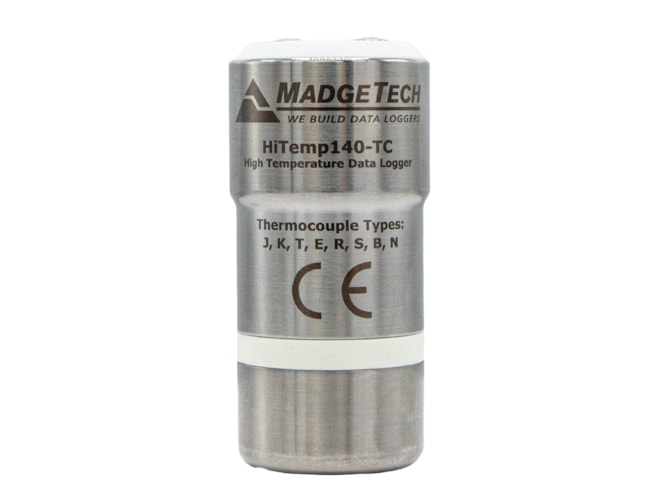

The MadgeTech HiTemp140-TC Data Logger is compatible with a wide variety of thermocouple probes, and is capable of measuring temperature as high as 3308°F and as low as -454°F (probe dependent).

All of MadgeTech’s HiTemp140 data loggers are made of food grade stainless steel and can be placed in environments with temperatures as high as 284°F. The operating range of the data logger body can be extended to higher temperatures 0hen used with MadgeTech’s thermal barrier options and suitable probe.

Using the MadgeTech 4 Software, starting, stopping and downloading the HiTemp140-TC is simple and easy. To use, simply place the HiTemp140-TC in the IFC400 or IFC406 docking station (sold separately). Using the software, an immediate or delay start can
be chosen, as well as the reading rate. Start the data logger, remove it from the docking station and the device is ready to be deployed. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K, °R, or mV. The data can also be automatically exported to Excel for further calculations.
