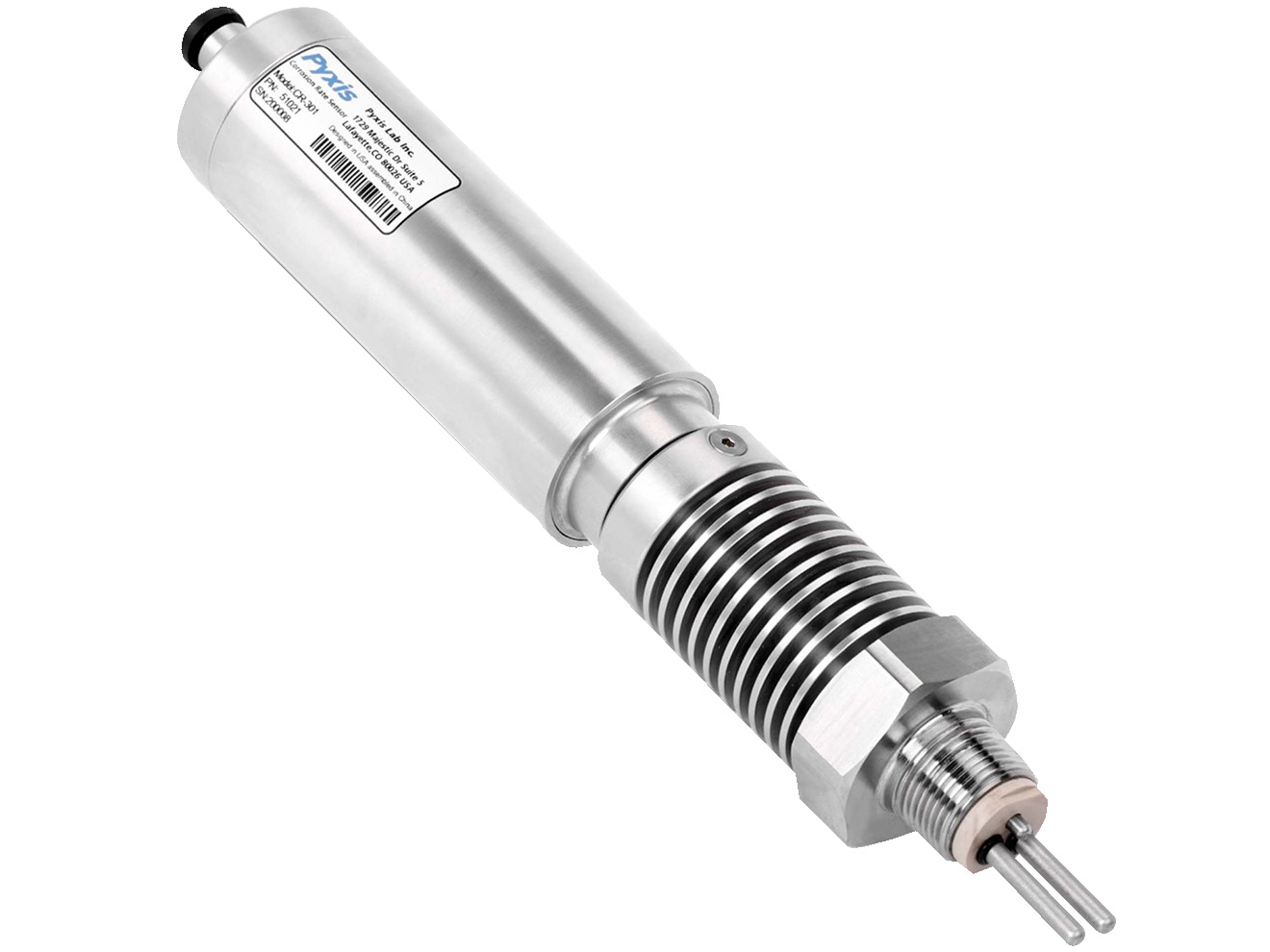

The Pyxis CR-Series LPR corrosion rate sensor provide real-time monitoring of general and localized corrosion, offering a reliable and efficient alternative to traditional corrosion coupons. Utilizing the Linear Polarization Resistance (LPR) method, these sensors deliver immediate corrosion rate measurements in Mils-Per-Year (MPY) and are especially effective in cooling and process water treatment systems. Unlike corrosion coupons, which require extended exposure times, CR-Series sensors provide instantaneous feedback, allowing for faster performance assessment and system adjustments. The sensors also integrate electrochemical noise analysis to evaluate pitting and localized corrosion, offering a more comprehensive corrosion profile.
The Pyxis CR-Series sensors include two models: the CR-200, a battery-powered, Bluetooth-enabled portable unit with onboard data storage; and the CR-300, a 24V DC-powered sensor that outputs both 4-20mA and RS-485 Modbus signals. Both sensors are engineered to minimize signal degradation by conditioning and digitizing signals at the source, eliminating the need for external transmitters or long-distance wiring. Additionally, built-in conductivity compensation (up to 10,000 μS/cm) ensures accurate readings across varying water qualities. The CR-Series sensors are housed in durable 304 stainless steel enclosures, rated to IP65, and capable of operating in temperatures ranging from -14 to 122 ºF under working conditions.
Pyxis CR-Series LPR Corrosion Rate Sensors Applications:
- Cooling and process water monitoring
- Mill supply, once-through, and closed-loop systems
- Domestic water monitoring
CR-200 LPR Corrosion Sensor Package Details (P/N: 51006)
- (1) CR-200 Sensor
- (1) 3.6V ER26500 Battery
- (1) Pair of Copper (P/N: 51003) + (1) Pair of Mild Steel Electrodes (P/N: 51002)
- (1) 2.0 MPY Calibration Check/Verification Cap (P/N: 51010)
- (1) 0.1 MPY Calibration Check/Verification Cap (P/N: 51011)
- (1) USB Bluetooth Adapter for PC (P/N: MA-NEB)
CR-300 LPR Corrosion Sensor Package Details (P/N: 51007)
- (1) CR-300 sensor, a
- (1) 5ft Extension Cable Terminated with Connectors,
- (1) 2ft Flying Lead Cable with one end Terminated with a Connector
- (1) Bluetooth Adapter for CR-300 (P/N: MA-CR)
- (1) Bluetooth Adapter for PC (P/N: MA-NEB)
- (1) Pair of Copper (P/N: 51003) + (1) Pair of Mild Steel Electrodes (P/N: 51002)
- (1) 2.0 MPY Calibration Check/Verification Cap (P/N: 51010)
- (1) 0.1 MPY Calibration Check/Verification Cap (P/N: 51011)
