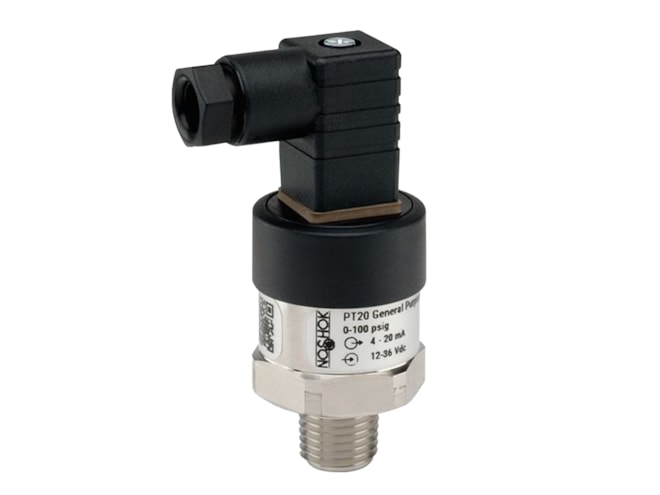

NOSHOK PT20 Series Pressure Transmitter
General industrial fixed range pressure transmitter with gauge, compound, absolute and vacuum ranges available.
- By NOSHOK
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Accuracy ±0.50% of span
- Media temperature range 32 to 176 °F (0 to 80 °C)
- Gauge ranges from vacuum to 1 to 15,000psi
- Absolute ranges from 15 to 300psi
- Current and voltage outputs available
- 316 Stainless Steel housing material, process connection and measuring element
- Measuring element material is 13-8PH Stainless Steel for 150psi and higher
- RoHS compliant
- CE compliant for RFI, EMI and ESD protection
- cULus compliant
- ROHS compliant
- IP65/67
Description
The NOSHOK PT20 Series Pressure Transmitter is built as a general purpose, fixed ranger sensor for use in a wide range of industrial applications. The PT20 Series provides reliable readings in versatile environments, with ±0.50% accuracy and an expanded list of ranges from vacuum through standard gauge pressures of 1 to 15000psi.
With a shock resistant design tested to withstand 500g's per IEC standards, and a response time of 4ms or less, the PT20 Series is built for consistency and longevity, with a life span that includes more than 100 million load cycles. Part of a new line replacing the NOSHOK 100, 200, 300 and 615 Series transmitters, the PT20 Series is cutting edge with a variety of pressure and electrical connections to suit most applications. With reverse polarity, over-voltage and short circuit protections, burst pressure guaranteed 2-3 times full scale and proof pressure guaranteed 1.5-2 times full scale, the PT20 Series is low maintenance and built to last.
All NOSHOK PT Series Transmitters come with a three year warranty.
Applications
- HVAC
- Hydraulics & pneumatics
- General industrial
- Automation
Documents
In Stock
Manufacturer Stock
Items from manufacturer stock generally ship in 5-7 business days. Expedited shipping is available.
Part Number | Price | Available | |
---|---|---|---|
PT20-10000psig-1-1-2-17 |
$195.62 | 60 in stock | |
PT20-10000psig-1-1-2-17-ST8 |
$210.32 | 60 in stock | |
PT20-10000psig-1-1-2-7 |
$181.62 | 60 in stock | |
PT20-10000psig-1-1-2-7-ST8 |
$196.32 | 60 in stock | |
PT20-10000psig-1-1-2-25 |
$181.62 | 40 in stock | |
PT20-10000psig-1-1-2-25-ST8 |
$196.32 | 40 in stock | |
PT20-1000psig-1-1-2-25 |
$181.62 | 39 in stock | |
PT20-1000psig-1-1-2-25-ST8 |
$196.32 | 39 in stock | |
PT20-100psia-1-1-2-14 |
$246.53 | 39 in stock | |
PT20-100psia-1-1-2-14-ST8 |
$261.23 | 39 in stock | |
PT20-100psia-1-1-2-18 |
$244.78 | 39 in stock | |
PT20-100psia-1-1-2-18-ST8 |
$259.48 | 39 in stock | |
PT20-100psia-1-1-2-8 |
$230.78 | 39 in stock | |
PT20-100psia-1-1-2-8-ST8 |
$245.48 | 39 in stock | |
PT20-100psig-1-1-2-25 |
$181.62 | 39 in stock | |
PT20-100psig-1-1-2-25-ST8 |
$196.32 | 39 in stock | |
PT20-10000psig-1-1-2-14 |
$197.37 | 38 in stock | |
PT20-10000psig-1-1-2-14-ST8 |
$212.07 | 38 in stock | |
PT20-10000psig-1-1-2-18 |
$195.62 | 38 in stock | |
PT20-10000psig-1-1-2-18-ST8 |
$210.32 | 38 in stock | |
PT20-10000psig-1-1-2-8 |
$181.62 | 38 in stock | |
PT20-10000psig-1-1-2-8-ST8 |
$196.32 | 38 in stock | |
PT20-100psig-1-1-45-25 |
$181.62 | 20 in stock | |
PT20-100psig-1-1-45-25-ST8 |
$196.32 | 20 in stock | |
PT20-1000psig-1-1-2-14 |
$197.37 | 18 in stock | |
PT20-1000psig-1-1-2-14-ST8 |
$212.07 | 18 in stock | |
PT20-1000psig-1-1-2-18 |
$195.62 | 18 in stock | |
PT20-1000psig-1-1-2-18-ST8 |
$210.32 | 18 in stock | |
PT20-1000psig-1-1-2-8 |
$181.62 | 18 in stock | |
PT20-1000psig-1-1-2-8-ST8 |
$196.32 | 18 in stock | |
PT20-100psig-1-1-2-14 |
$197.37 | 14 in stock | |
PT20-100psig-1-1-2-14-ST8 |
$212.07 | 14 in stock | |
PT20-100psig-1-1-2-18 |
$195.62 | 14 in stock | |
PT20-100psig-1-1-2-18-ST8 |
$210.32 | 14 in stock | |
PT20-100psig-1-1-2-8 |
$181.62 | 14 in stock | |
PT20-100psig-1-1-2-8-ST8 |
$196.32 | 14 in stock | |
PT20-10000psig-1-2-2-25 |
$181.62 | 12 in stock | |
PT20-10000psig-1-2-2-25-ST8 |
$196.32 | 12 in stock | |
PT20-10000psig-1-5-2-25 |
$181.62 | 12 in stock | |
PT20-10000psig-1-5-2-25-ST8 |
$196.32 | 12 in stock | |
PT20-1000psig-1-2-2-25 |
$181.62 | 12 in stock | |
PT20-1000psig-1-2-2-25-ST8 |
$196.32 | 12 in stock | |
PT20-1000psig-1-2-45-25 |
$181.62 | 12 in stock | |
PT20-1000psig-1-2-45-25-ST8 |
$196.32 | 12 in stock | |
PT20-1000psig-1-5-45-25 |
$181.62 | 12 in stock | |
PT20-1000psig-1-5-45-25-ST8 |
$196.32 | 12 in stock | |
PT20-100psia-1-1-2-25 |
$230.78 | 12 in stock | |
PT20-100psia-1-1-2-25-ST8 |
$245.48 | 12 in stock | |
PT20-100psia-1-2-2-25 |
$230.78 | 12 in stock | |
PT20-100psia-1-2-2-25-ST8 |
$245.48 | 12 in stock | |
PT20-100psia-1-5-2-25 |
$230.78 | 12 in stock | |
PT20-100psia-1-5-2-25-ST8 |
$245.48 | 12 in stock | |
PT20-100psig-1-2-2-25 |
$181.62 | 12 in stock | |
PT20-100psig-1-2-2-25-ST8 |
$196.32 | 12 in stock | |
PT20-100psig-1-5-2-25 |
$181.62 | 12 in stock | |
PT20-100psig-1-5-2-25-ST8 |
$196.32 | 12 in stock | |
PT20-100psig-1-5-2-17 |
$195.62 | 8 in stock | |
PT20-100psig-1-5-2-17-ST8 |
$210.32 | 8 in stock | |
PT20-100psig-1-5-2-7 |
$181.62 | 8 in stock | |
PT20-100psig-1-5-2-7-ST8 |
$196.32 | 8 in stock | |
PT20-1000psig-1-1-45-25 |
$181.62 | 6 in stock | |
PT20-1000psig-1-1-45-25-ST8 |
$196.32 | 6 in stock | |
PT20-1000psig-1-5-2-14 |
$197.37 | 6 in stock | |
PT20-1000psig-1-5-2-14-ST8 |
$212.07 | 6 in stock | |
PT20-1000psig-1-5-2-18 |
$195.62 | 6 in stock | |
PT20-1000psig-1-5-2-18-ST8 |
$210.32 | 6 in stock | |
PT20-1000psig-1-5-2-8 |
$181.62 | 6 in stock | |
PT20-1000psig-1-5-2-8-ST8 |
$196.32 | 6 in stock | |
PT20-1000psig-1-5-2-25 |
$181.62 | 4 in stock | |
PT20-1000psig-1-5-2-25-ST8 |
$196.32 | 4 in stock | |
PT20-100psic-1-1-2-25 |
$216.00 | 4 in stock | |
PT20-100psic-1-1-2-25-ST8 |
$230.70 | 4 in stock | |
PT20-100psic-1-2-2-25 |
$216.00 | 4 in stock | |
PT20-100psic-1-2-2-25-ST8 |
$230.70 | 4 in stock | |
PT20-100psic-1-5-2-25 |
$216.00 | 4 in stock | |
PT20-100psic-1-5-2-25-ST8 |
$230.70 | 4 in stock | |
PT20-1500psig-1-1-2-25 |
$181.62 | 4 in stock | |
PT20-1500psig-1-1-2-25-ST8 |
$196.32 | 4 in stock | |
PT20-1500psig-1-13-2-14 |
$197.37 | 4 in stock | |
PT20-1500psig-1-13-2-14-ST8 |
$212.07 | 4 in stock | |
PT20-100psig-1-5-8-25 |
$181.62 | 3 in stock | |
PT20-100psig-1-5-8-25-ST8 |
$196.32 | 3 in stock | |
PT20-1500psig-1-1-2-14 |
$197.37 | 3 in stock | |
PT20-1500psig-1-1-2-14-ST8 |
$212.07 | 3 in stock | |
PT20-1500psig-1-1-2-18 |
$195.62 | 3 in stock | |
PT20-1500psig-1-1-2-18-ST8 |
$210.32 | 3 in stock | |
PT20-1500psig-1-1-2-8 |
$181.62 | 3 in stock | |
PT20-1500psig-1-1-2-8-ST8 |
$196.32 | 3 in stock | |
PT20-100psig-1-13-2-14 |
$197.37 | 2 in stock | |
PT20-100psig-1-13-2-14-ST8 |
$212.07 | 2 in stock | |
PT20-100psig-1-13-2-18 |
$195.62 | 2 in stock | |
PT20-100psig-1-13-2-18-ST8 |
$210.32 | 2 in stock | |
PT20-100psig-1-13-2-8 |
$181.62 | 2 in stock | |
PT20-100psig-1-13-2-8-ST8 |
$196.32 | 2 in stock | |
PT20-100psig-1-5-2-14 |
$197.37 | 2 in stock | |
PT20-100psig-1-5-2-14-ST8 |
$212.07 | 2 in stock | |
PT20-100psig-1-5-2-18 |
$195.62 | 2 in stock | |
PT20-100psig-1-5-2-18-ST8 |
$210.32 | 2 in stock | |
PT20-100psig-1-5-2-8 |
$181.62 | 2 in stock | |
PT20-100psig-1-5-2-8-ST8 |
$196.32 | 2 in stock |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
Need Help? Call a Calibration engineer at 1-800-884-4967
We're open 8:00 am to 5:30 pm ET
