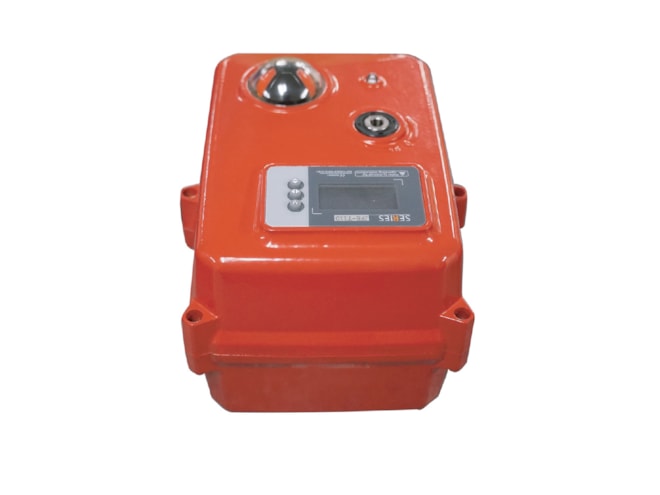

JFlow Controls JFE-C110 Series On/Off Electric Actuator

On/off electric actuator with a brushless DC motor and a super capacitor fail-safe option.

Starting at $1,350.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days

Features

  • NEMA 4, 4X
  • Rated voltage: AC/DC95-265V, AC/DC24V, DC24-12V, 110VAC, 230VAC, 12VDC/VAC
  • Running time: about 10 seconds
  • Charging time: 5 minutes
  • Brushless DC motor
  • 100% duty for 12VDC/AC and 24VDC/AC motors
  • Super capacitor fail-safe option
  • Rated torque: 110NM

The JFlow Controls JFE-C series actuator is an on/off actuator with an LED display. The LED display contains a 1.3in OLED screen, no visual dead angle and is bright, energy saving and eco-friendly. This actuator is ideal for 2 or 3-way ball valves and butterfly valves. It has adopted a high performance synchronous motor and a hex wrench manual override. Additionally, this actuator has an open and close indicator and a running time of about 10 seconds.
