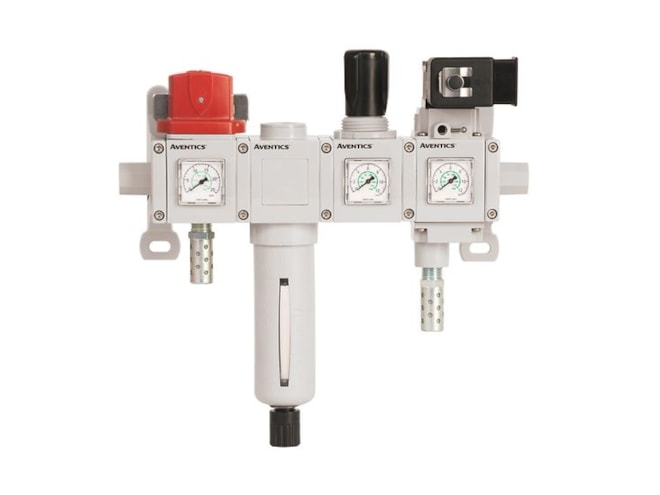

Aventics 650 Series Air Preparation Units

Air preparation unit series with sintered polyethylene elements and include 5, 25 and 40 Microns.

Call for pricing

View Company Reviews
Part Number
  • 650-Series
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Sintered polyethylene elements, with centrifugal separator, include 5, 25 and 40 Microns
  • Optional extended temperature range of -40 to 176°F (-40 to 80°C)
  • Two position plastic drain with manual and semi-automatic functions.
    • Additional drains include an automatic style (brass) and manual (stainless steel)
  • Polycarbonate and aluminum bowls with a selection of sight gauge materials
  • Threaded ports allow for individual or modular mounting
  • Air purity class according to ISO 8573-1: 2010
  • Indoor or outdoor operating environment
  • Three models to choose from
    • Aventics 651
    • Aventics 652
    • Aventics 653

The Aventics 650 series air preparation units contain extended high and low temperature capabilities (-40 to 176°F) to allow the FRLs to be specified across a broad range of applications, including those within harsh environments. New manifold endplate flanges allow users to pull the manifold assembly out of service without disconnecting the piping. The Aventics 650 series comes in three models, the 651, 652, and 653 - each with different port/piping sizing.

The air preparation unit is front-facing with low-profile gauges to assist with serviceability. The gauges are offered with shut-off isolation and slow-start/quick exhaust valves. The optional pressure regulator with reverse flow check permits placement of the regulator between the valve and cylinder - allowing air to be exhausted through the regulator without causing damage or reduced life. Additionally, the optional integrated pressure range indicators allow the user to easily set off the red/green color indicators to the desired pressure range. Lastly, the selection of filtering capacities aids in removing particulate and water droplets from compressed air or inert gas.
