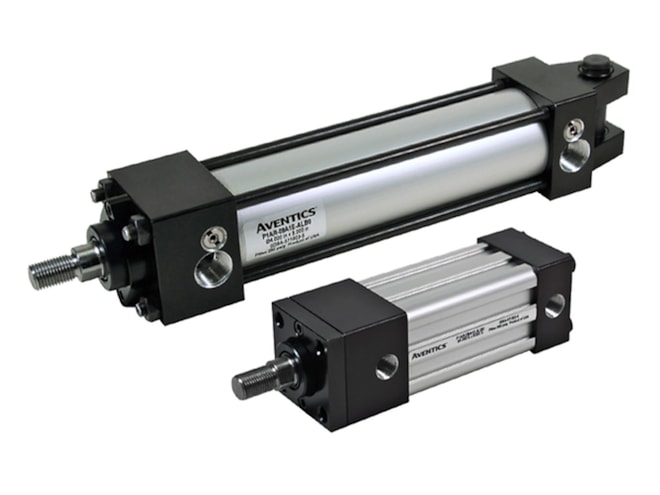

Aventics Series A Interchangeable Cylinder

Name: Aventics Series A Interchangeable Cylinder
Availability: BackOrder

NFPA interchangeable pneumatic cylinder that comes in a range of bore sizes and strokes.

Call 1-800-884-4967 for pricing

Effective March 12th, 2025 Aventics has added a 7.5% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews

Part Number

A-Series

Manufactured

By Aventics

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Call for availability

Product Specs

Features

Max operating pressure: 250 psi (air)
Bore sizes from 1 1/2 inch to 6 inches
Piston rod diameter from 5/8 inch to 1 3/4 inch
Temperature range: -10 to 165°F (-23 to 74°C)
NPFT ports
Flexible port and cushion location

The Aventics Series A interchangeable cylinder is a NFPA pneumatic cylinder with over 22 mounting styles available. The oversized wear band on the rear of the high strength steel piston allows for a longer product life span. The high-strength aluminum alloy tube provides corrosion-free sealing surface and abrasion resistance. The ductile steel piston rod has a ground, polished, and hard chrome-plated surface providing maximum bushing and seal life.

Other features include a highly durable polyurethane rod wiper. Tie rods are 100,000 psi minimum-yield steel for maximum holding power. Tie rod threads are rolled for strength and engagement. Additionally, an enhanced port design enables increased flow rate and allows faster breakaway. Lastly, the bushing retainer permits cartridge removal without disassembly.
