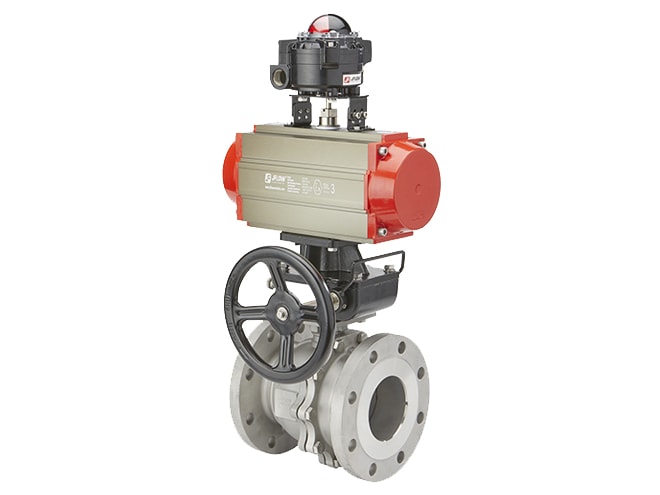

JFlow Controls DM2500 Series Ball Valve

Direct mount flanged ball valve, sizes from 1/2- to 12-inch, stainless steel or carbon steel, Class 150/300 working pressure.

Starting at $541.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Specs

Features

  • UL-certified
  • Investment casting body and end caps
  • ISO 5211 direct mounting pad
  • Adjustable stem packing
  • Stainless steel or carbon steel body material
  • Blow-out proof stem design
  • Silicone-free
  • 100% air tested under water at 80-100psi
  • Class 150/300 working pressure
  • -320 to 800°F temperature range
  • Pneumatic options available

The JFlow Controls DM2500 Series ball valve is a direct-mount flanged ball valve. The user may install the valve in either direction unless using a reduced port v-ball. When a v-ball is used, arrows on the valve will indicate the flow. The DM2500 Series is a 1/4 turn valve that closes in the clockwise direction, and the valve handle points in the flow direction.

The DM2500 features quality investment casting body and end caps, an ISO 5211 direct mounting pad, a locking function, and adjustable stem packing. It is available in stainless steel or carbon steel, is silicone-free, and offers a blow-out proof stem design.
