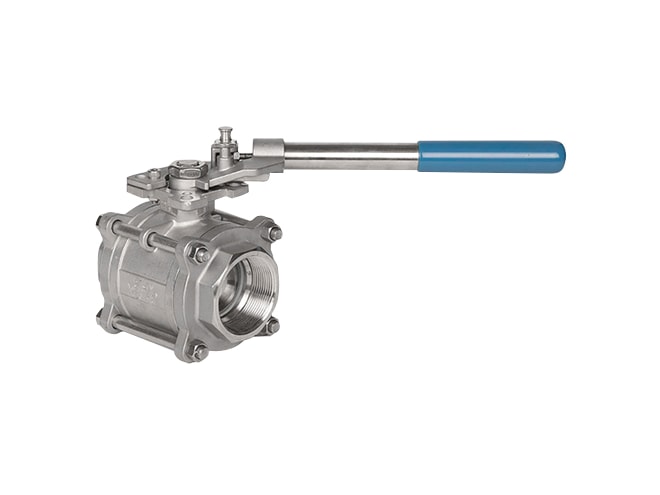

JFlow Controls DM4500 Series Ball Valve

Three-piece, direct-mount ball valve, sizes from 1/4- to 4-inch, stainless steel or carbon steel, 800/1000psi working pressure.

Starting at $122.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 7-10 business days
Product Specs

Features

  • Investment casting body and end caps
  • ISO 5211 direct mounting pad
  • Locking function
  • Adjustable stem packing
  • Stainless steel or carbon steel body material
  • Blow-out proof stem design
  • Silicone-free
  • 100% air tested under water at 100psi
  • Class 150 and 800/1000psi working pressure
  • -50 to 450°F temperature range
  • Pneumatic options available

The JFlow Controls DM4500 Series ball valve is designed for high-demand processes that require routine maintenance, including high pressure, high temperature, and high cycle applications. Disassembly, cleanup, servicing including replacement of seats, seals, or other components, and reassembly can all be done without cutting the pipe.

The DM4500 is a three-piece, direct mount valve that features quality investment casting body and end caps, an ISO 5211 direct mounting pad, a locking function, and adjustable stem packing. It is available in stainless steel or carbon steel, is silicone-free, and offers a blow-out proof stem design.
