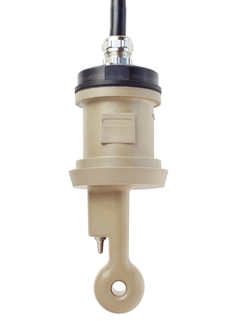

E+H Indumax CLS52 Analog Conductivity Sensor

Inductive conductivity sensor for applications with fast temperature changes.

E+H Indumax CLS52 Varivent N DN40-125 Option
E+H Indumax CLS52 Conductivity Sensor (All Other Options)

Starting at $2,111.68

View Company Reviews

Manufactured

By Endress+Hauser
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

Measurement range: 0.1 to 2000mS/cm
Process temperature: Max. 257°F/125°C (short time up to 284°F/140°C)
Process pressure: Max. 232 psi at 194°F (Max. 16 bar at 90°C)
Ingress protection: IP 67
Inductive conductivity measurement measuring principle
ATEX certification

The Indumax CLS52 analog conductivity sensor is equipped with a stainless steel temperature sensor that is an integrated Pt100 in a heat contact nut. Intended for use in the food industry, the sensors are injection-molded and made from high-resistance PEEK, allowing them to see the hygienic requirements of the food industry. The inductive conductivity cell contains an outside temperature sensor.

The Indumax CLS52 is intended for applications such as alkaline/acid concentration control in remaking and phase separation of product/water and product/product mixtures in pipe systems. It is insensitive to electrode contamination and polarization due to an inductive measuring principle. The sensor is suitable for exposure to continuous temperatures of up to 257°F/125°C. It can be operated at temperatures of 284°F/140°C for up to 30 minutes for sterilization purposes.
