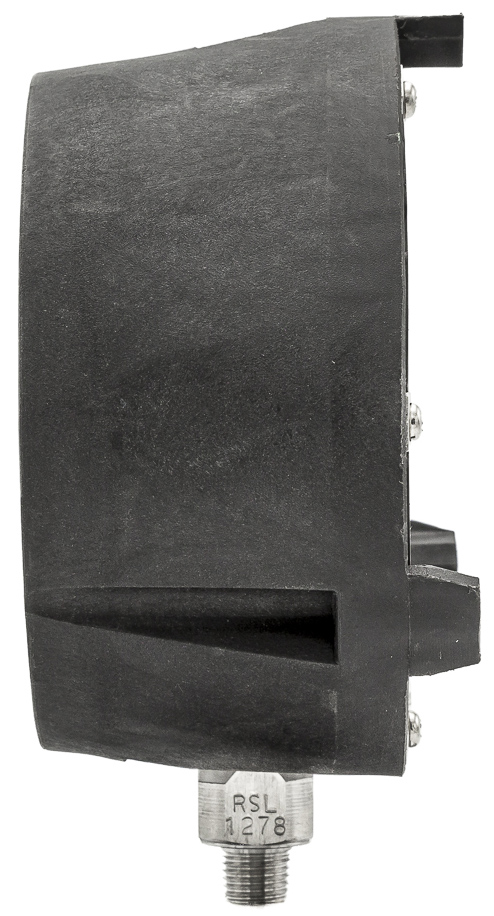

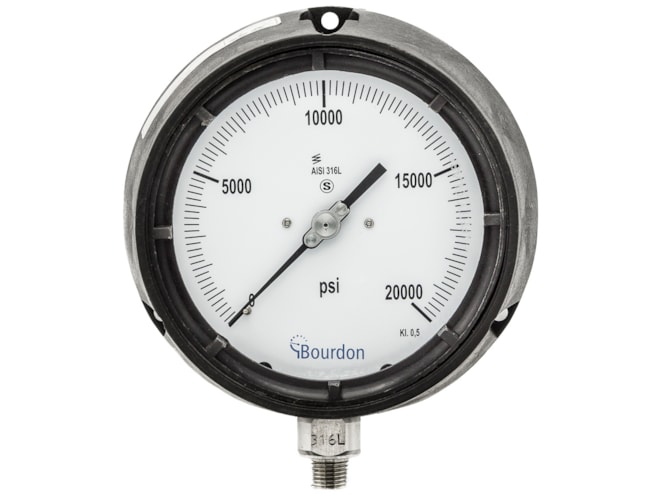

Bourdon AHG6 Series Pressure Gauge

Polypropylene case, Bourdon-type pressure gauge suitable for high pressure gas and corrosive, hazardous environments.

Starting at $124.13

View Company Reviews
Manufactured
Includes
Availability
Product Specs

Features

  • ±0.5% F.S. accuracy
  • 4.5in nominal size
  • Vac to 20,000psi pressure range
  • 75% of scale value operating pressure range
  • Over pressure limits:
    • ≤100 bar: 125% of max scale value
    • >100 to ≤600 bar: 115% of max scale value
    • >600 to ≤1600 bar: 110% of max scale value
  • Solid front gauge with pressure relief back
  • Stainless steel wetted parts
  • Dry and liquid-filled versions
  • IP 65 protection rating

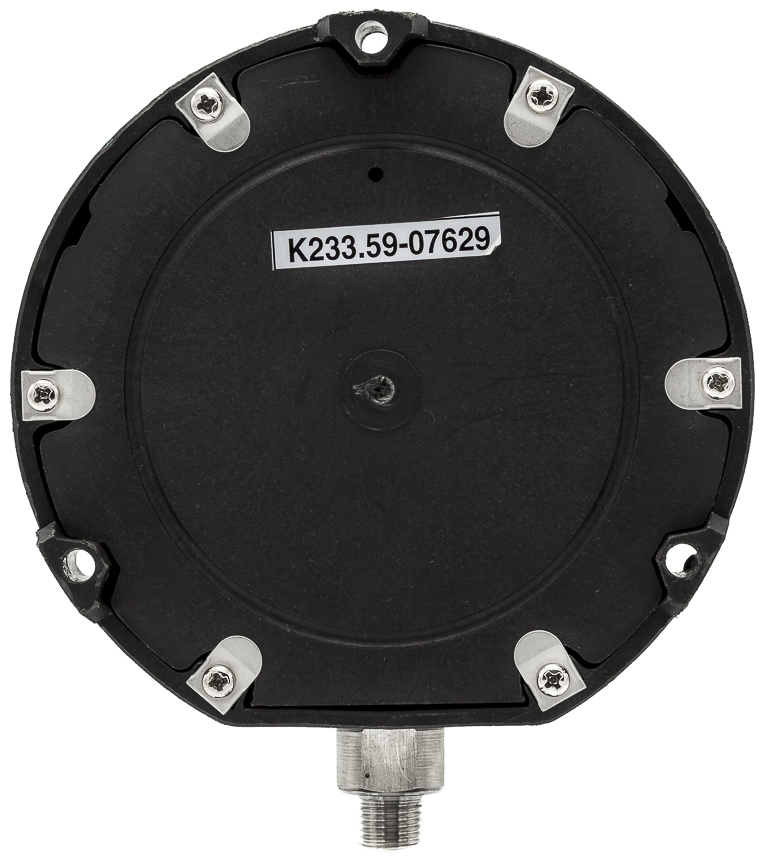

The Bourdon AHG6 series pressure gauge is a Bourdon-type gauge featuring AISI 316L stainless steel wetted parts and a polypropylene case with stainless steel measuring system. The gauge's solid front design features a baffle wall interposed between the sensing system, the window, and a pressure-relieving back for increased safety.

The AHG6 gauge follows the ASME B40.100 standard. It is suitable for high pressure gas and corrosive or hazardous environments.

Bourdon D042 / D043 / D044 Diaphragm Seal
Bourdon D042 / D043 / D044 Diaphragm Seal

Welded diaphragm seal with screwed process connection for pressure ranges up to 6,000psi.

Select options for pricing
PIC Gauges Needle Valve
PIC Gauges Needle Valve

Instrumentation grade needle valves designed for heavy duty process and industrial applications.

Select options for pricing

Manufacturer Stock

Part Number Mounting Type Process Connection Pressure Range Price Available
AHG6-A62.H40
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 10,000psi
 $143.93 560 in stock
AHG6-A62.H31
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 1,500psi
 $142.20 192 in stock
AHG6-A62.H38
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 6,000psi
 $142.20 177 in stock
AHG6-A62.H25
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 300psi
 $108.60 155 in stock
AHG6-A60.H34
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 3,000psi
 $135.93 152 in stock
AHG6-A60.H27
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 600psi
 $102.33 145 in stock
AHG6-A60.H30
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 1,000psi
 $135.93 127 in stock
AHG6-A60.H40
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 10,000psi
 $137.66 110 in stock
AHG6-A60.H15
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 15psi
 $135.93 80 in stock
AHG6-A50.H23
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 200psi
 $90.53 73 in stock
AHG6-A60.H82
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
-30inHg to 300psi
 $135.93 73 in stock
AHG6-A60.H27/0751
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 600psi
 $109.33 72 in stock
AHG6-A60.H31
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 1,500psi
 $135.93 68 in stock
AHG6-A50.H21
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 100psi
 $90.53 66 in stock
AHG6-A60.H22/0751
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 160psi
 $109.33 43 in stock
AHG6-A60.H38
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 6,000psi
 $135.93 43 in stock
AHG6-A50.H22
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 160psi
 $90.53 34 in stock
AHG6-A60.H41
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 15,000psi
 $139.00 34 in stock
AHG6-A50.H27
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 600psi
 $90.53 32 in stock
AHG6-A50.H34
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 3,000psi
 $124.13 31 in stock
AHG6-A60.H25/0751
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 300psi
 $109.33 30 in stock
AHG6-A52.H30
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 1,000psi
 $130.40 28 in stock
AHG6-A60.H23/0751
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 200psi
 $109.33 28 in stock
AHG6-A60.H30/0751
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 1,000psi
 $142.93 24 in stock
AHG6-A60.H26/0751
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 400psi
 $109.33 22 in stock
AHG6-A60.H34/0751
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 3,000psi
 $142.93 18 in stock
AHG6-A52.H34
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 3,000psi
 $130.40 16 in stock
AHG6-A60.H26
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 400psi
 $102.33 16 in stock
AHG6-A50.H15
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 15psi
 $124.13 15 in stock
AHG6-A60.H21
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 100psi
 $102.33 15 in stock
AHG6-A61.H27
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 600psi
 $106.49 14 in stock
AHG6-A60.H17
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 30psi
 $102.33 13 in stock
AHG6-A60.H79
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
-30inHg to 150psi
 $135.93 12 in stock
AHG6-A62.H15/0751
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 15psi
 $149.20 12 in stock
AHG6-A50.H30
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 1,000psi
 $124.13 11 in stock
AHG6-A50.H38
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 6,000psi
 $124.13 10 in stock
AHG6-A52.H26
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 400psi
 $96.80 9 in stock
AHG6-A60.H19
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 60psi
 $102.33 9 in stock
AHG6-A60.H73
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
-30inHg to 15psi
 $135.93 9 in stock
AHG6-A62.H26
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 400psi
 $108.60 8 in stock
AHG6-A61.H25
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 300psi
 $106.49 7 in stock
AHG6-A50.H59
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
-30inHg to 0psi
 $124.13 6 in stock
AHG6-A60.H75
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
-30inHg to 30psi
 $135.93 6 in stock
AHG6-A50.H19
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 60psi
 $90.53 5 in stock
AHG6-A52.H59
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
-30inHg to 0psi
 $130.40 5 in stock
AHG6-A60.H22
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 160psi
 $102.33 5 in stock
AHG6-A62.H34
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 3,000psi
 $142.20 5 in stock
AHG6-A50.H40
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 10,000psi
 $125.86 4 in stock
AHG6-A52.H27
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 600psi
 $96.80 4 in stock
AHG6-A52.H82
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
-30inHg to 300psi
 $130.40 4 in stock
AHG6-A50.H25
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 300psi
 $90.53 3 in stock
AHG6-A51.H23
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 200psi
 $94.69 3 in stock
AHG6-A50.H78
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
-30inHg to 100psi
 $124.13 2 in stock
AHG6-A60.H75/0751
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
-30inHg to 30psi
 $142.93 2 in stock
AHG6-A62.H23
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 200psi
 $108.60 2 in stock
AHG6-E50.H17
Show Full Configuration
Direct lower back entry (never fillable)
1/4in NPT
0 to 30psi
 $142.63 2 in stock
AHG6-A50.H2C
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
-30inHg to 60psi
 $124.13 1 in stock
AHG6-A51.H25
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 300psi
 $94.69 1 in stock
AHG6-A51.H31
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
0 to 1,500psi
 $128.29 1 in stock
AHG6-A52.H75
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/4in NPT
-30inHg to 30psi
 $130.40 1 in stock
AHG6-A61.H21
Show Full Configuration
Wall, surface, projection mounting with bottom entry
1/2in NPT
0 to 100psi
 $106.49 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Click here to select options
