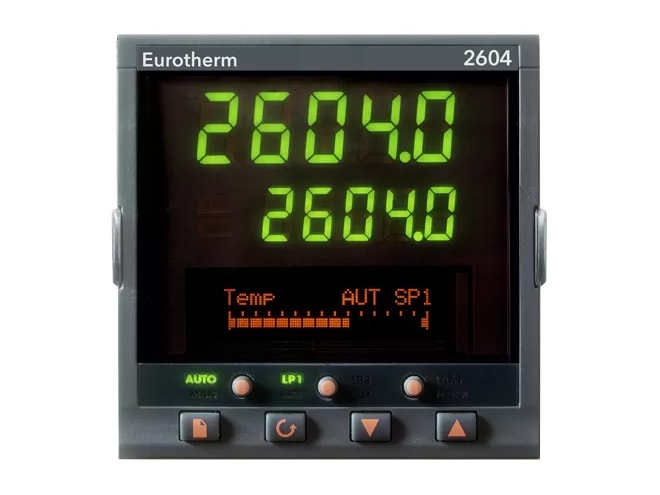

Eurotherm 2604 Process Controller
Advanced 1/4 DIN plug-in, high stability temperature and process controller and programmer in a single, dual, or triple loop format.
Overview
Features
- PID, valve, ratio, cascade and override control
- Setpoint programming
- ModBus, DeviceNet, and Profibus communications
- Input types: mA, mV, RTD, TC, Volts
- <0.1% PV input accuracy
- Control types: PID, VP, On/Off
- Alarm types: Dev, Event, Heater fail, Hi, Lo
- Supply voltage: 24V DC/AC or 85-264VAC
- 50 programs, 500 segments, 16 event outputs
Description
The Eurotherm 2604 process controller is a highly accurate, high stability process controller available in a single, dual or triple loop format. A setpoint programming option allows storage of up to 50 programs (500 segments, 16 digital events, guaranteed dwell, and holdback), and each can profile up to three setpoints. Features also include a comprehensive selection of math and logic functions and a customizable user interface.
The 2604 controller has a dual 5-digit display of process value and setpoint with an LCD panel for display of alarm messages, programmer and loop status information. User defined messages in the LCD panel simplify operation. The 2604 controller is a highly configurable product offering many features previously found only in programmable logic controllers. This allows systems to be implemented integrating the process control and logic functions of a machine, therefore simplifying system complexity and reducing the total system costs.
Configuration is achievable either via the front panel or using Eurotherm’s iTools configuration software.
