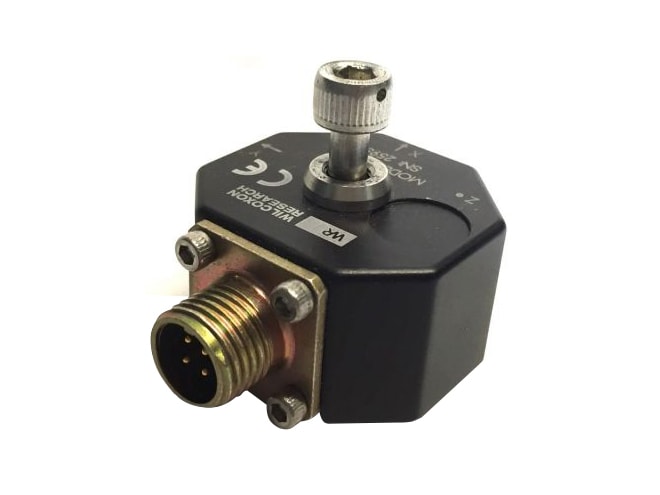

Wilcoxon Sensing Technologies 993A Triaxial Accelerometer
Low profile triaxial accelerometer with side exit, 100 mV/g sensitivity, ±10% sensitivity tolerance, 4-pin Bendix connector.
- 993A
Overview
Features
- 100 mV/g sensitivity
- ±10% sensitivity tolerance
- 50g peak acceleration range
- 1% amplitude nonlinearity
- 2 to 2,000Hz frequency response, all channels
- 100Ω max output impedance
- 500g peak vibration limit
- 5,000g peak shock limit
- Epoxy sealing
- PZT ceramic / shear sensing element
- 4-pin Bendix PC02A-8-4P output connector
- R9W mating connector
Description
The Wilcoxon Sensing Technologies 993A triaxial accelerometer features fast and consistent data collection and reduced wiring for permanent installations, and is easy to mount. It has a rugged design and is constructed of hardcoated aluminum. It has a 1/4-28 captive socket head screw for mounting, a 4-pin Bendix output connector, and a R9W mating connector.
The 993A is case isolated and internally shielded. It is manufactured in an ISO 9001 facility.
Wilcoxon's triaxial accelerometers comprise three sensing elements within a single housing. Triaxial accelerometers enable multi-directional data acquisition in a single measurement. Proponents of 3-axis accelerometers cite the increased speed of data collection, inherently consistent readings, and a reduction in wiring for permanent installations.
Accessories
