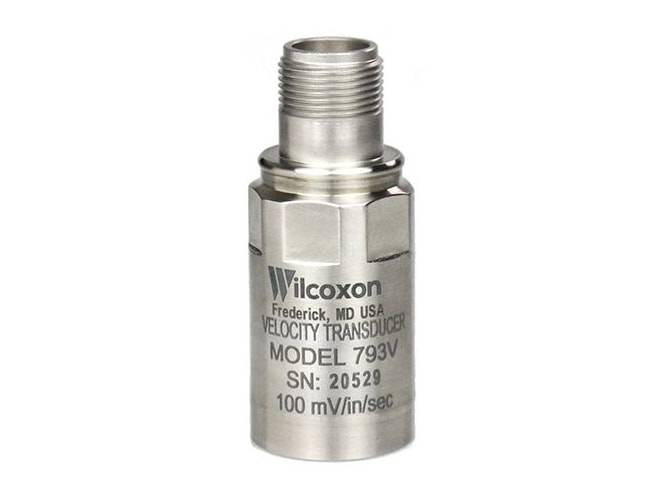

Wilcoxon Sensing Technologies 793V High Performance Velocity Accelerometer

High performance velocity sensor, 100 mV/in/sec sensitivity, ±10% sensitivity tolerance, low noise, wide frequency response.

Features

  • Dynamic vibration (IEPE) sensor output
  • 50 in/sec peak velocity range
  • 2.5% amplitude nonlinearity
  • Frequency response:
    • ±10%: 3 to 3,500Hz
    • ±3 dB: 2.5 to 7,000Hz
  • 15kHz resonance frequency
  • 200Ω max output impedance
  • 250g peak vibration limit
  • 5,000g peak shock limit
  • Hermetic sealing
  • MIL-C-5015 2-pin connector

The Wilcoxon Sensing Technologies 793V high performance velocity sensor is designed for long-term, reliable use. It is internally integrated to velocity, features a corrosion-resistant 316L stainless steel case, and is hermetically sealed.

The 793V has a MIL-C-5015 style 2-pin output connector, a 1/4-28 tapped hole for mounting, and a R6 type connector. It is case isolated and internally shielded, and features 100mV/in/sec sensitivity and ±10% sensitivity tolerance.

The 793V sensor features ESD, overload, and reverse wiring protection, and is manufactured in an ISO 9001 facility.
