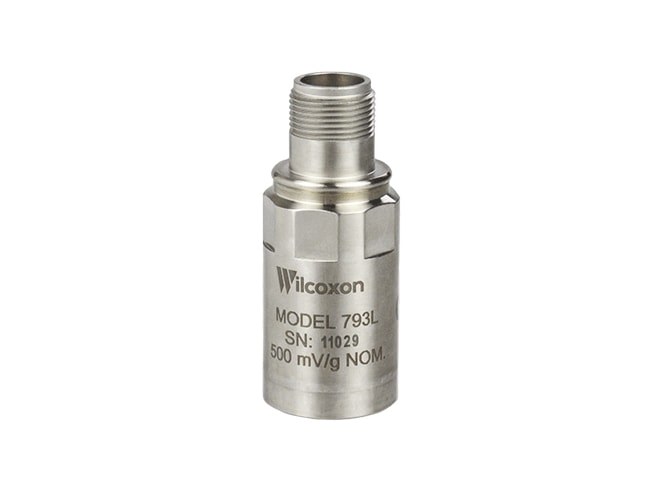

Wilcoxon Sensing Technologies 793L Low Frequency Accelerometer

High performance, low frequency, 500 mV/g sensitivity, ±5% sensitivity tolerance, low noise, extended low frequency response.

$581.92

View Company Reviews
Part Number
  • 793L
Manufactured
Includes
Availability
  • Usually ships in 5-7 business days
Product Specs

Features

  • Dynamic vibration (IEPE) sensor output
  • 10g peak acceleration range
  • 1% amplitude nonlinearity
  • Frequency response:
    • ±5%: 0.6 to 700Hz
    • ±10%: 0.4 to 1,000Hz
    • ±3 dB: 0.2 to 2,300Hz
  • 15kHz resonance frequency
  • 100Ω max output impedance
  • 250g peak vibration limit
  • 5,000g peak shock limit
  • Hermetic sealing
  • MIL-C-5015 2-pin connector

The Wilcoxon Sensing Technologies 793L low frequency accelerometer is designed for long-term, reliable use. It is low pass filtered to attenuate high frequencies, and features ultra low-noise electronics for clear signals at very low vibration levels.

The 793L features a 316L stainless steel case and is hermetically sealed. It has a MIL-C-5015 style 2-pin output connector, a 1/4-28 tapped hole for mounting, and a R6 type connector. The 793L is case isolated and internally shielded, and features 500mV/g sensitivity and ±5% sensitivity tolerance.

The 793L accelerometer is manufactured in an ISO 9001 facility.
