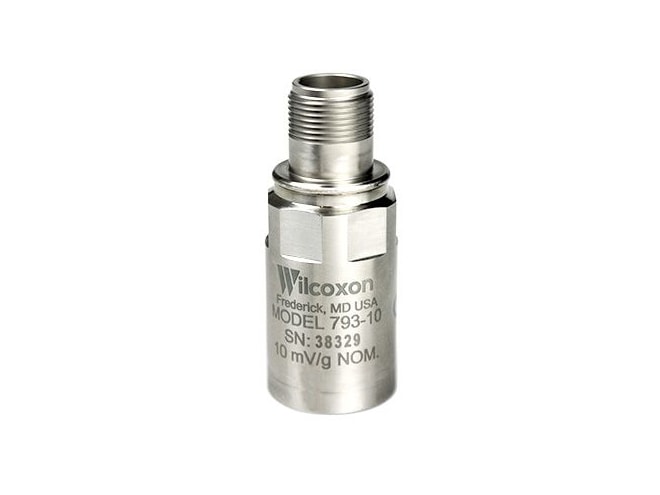

Wilcoxon Sensing Technologies 793-10 High Performance Accelerometer

High performance, IEPE accelerometer, 500g amplitude range for high-impact applications or measuring vibration on high-speed (>60,000 CPM) components.

$547.69

View Company Reviews
Part Number
  • 793-10
Manufactured
Includes
Availability
  • Usually ships in 5-7 business days
Product Specs

Features

  • Dynamic vibration (IEPE) sensor output
  • 500g peak acceleration range
  • 1% amplitude nonlinearity
  • Frequency response:
    • ±5%: 3 to 5,000Hz
    • ±10%: 2 to 7,000Hz
    • ±3 dB: 1 to 15,000Hz
  • 25kHz resonance frequency
  • 100Ω max output impedance
  • 500g peak vibration limit
  • 5,000g peak shock limit
  • Hermetic sealing
  • MIL-C-5015 2-pin connector

The Wilcoxon Sensing Technologies 793-10 high performance accelerometer is designed for long-term, reliable use. It features a corrosion-resistant stainless steel case and is hermetically sealed. It has a MIL-C-5015 style 2-pin output connector, a 1/4-28 tapped hole for mounting, and a R6 type connector. The 793-10 is case isolated, and has 500mV/g sensitivity and ±5% sensitivity tolerance.

The 793-10 accelerometer features ESD and reverse wiring protection. It is manufactured in an ISO 9001 facility.
