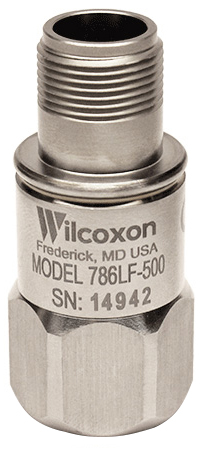

Wilcoxon Sensing Technologies 786LF Series Ultra Low Frequency Accelerometer

Extremely low frequency accelerometer sensor (0.1Hz low end), ±5% sensitivity tolerance, top exit MIL-C-5015-style connector, case isolated.

Starting at $449.23

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 5-7 business days
Product Specs

Features

  • Sensitivity:
    • 786LF: 100mV/g
    • 786LF-250: 250mV/g
    • 786LF-500: 500mV/g
  • Peak acceleration range:
    • 786LF: 50g peak
    • 786LF-250: 20g peak
    • 786LF-500: 10g peak
  • Frequency response:
    • ±5%: 0.35 to 5,000Hz
    • ±10%: 0.25 to 8,000Hz
    • ±3 dB: 0.1 to 13,000Hz
  • 30kHz resonance frequency
  • Max output impedance:
    • 786LF: 100Ω
    • 786LF-250: 200Ω
    • 786LF-500: 300Ω
  • 500g peak vibration limit
  • 5,000g peak shock limit
  • Hermetic sealing
  • PZT ceramic / shear sensing element
  • Output connector:
    • 786LF, 786LF-250, 786LF-500: 2 pin, MIL-C-5015
    • 786LF-M12, 786LF-250-M12, 786LF-500-M12: M12 style

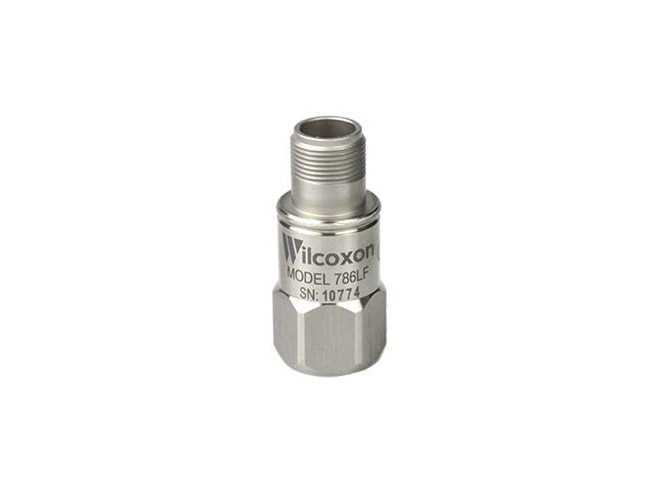

The Wilcoxon Sensing Technologies 786LF series ultra low frequency accelerometer is designed for long-term, reliable use. It features extended low frequency response and high sensitivity, and it delivers clear signals at low vibrations.

The 786LF is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting, a SF6 mounting stud (included) and either a MIL-C-5015 2-pin or M12 connector. The 786LF is manufactured in an ISO 9001 facility.
