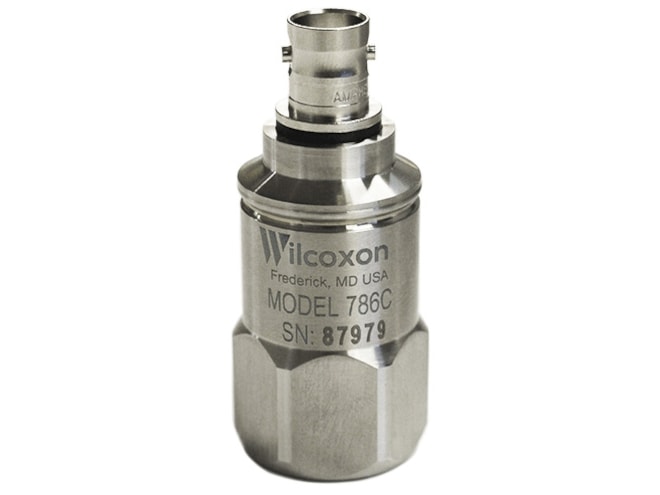

Wilcoxon Sensing Technologies 786C General Purpose Accelerometer

General purpose vibration sensor, 100 mV/g sensitivity, ±5% sensitivity tolerance, top exit BNC connector.

$320.00

Effective April 21st, 2025, Wilcoxon Sensing Technologies has added a 7% surcharge to this product. The surcharge will appear as a separate line item on the order.


View Company Reviews
Part Number
  • 786C
Manufactured
Includes
Availability
  • Usually ships in 5-7 business days
Product Specs

Features

  • Dynamic vibration (IEPE) sensor output
  • 100mV/g sensitivity
  • ±5% sensitivity tolerance
  • 80g peak acceleration range
  • Frequency response:
    • ±10%: 1 to 9,000Hz
    • ±3 dB: 0.5 to 14,000Hz
  • 30kHz resonance frequency
  • 100Ω max output impedance
  • 500g peak vibration limit
  • 5,000g peak shock limit
  • BNC connector
  • 1/4-28 UNF tapped hole and SF6 mounting stud (included)
  • IP67 protection, watertight epoxy seal
