Wilcoxon Sensing Technologies 786-500 Series Accelerometer

Low frequency, high sensitivity accelerometer with top exit, 500mV/g sensitivity, ±5% sensitivity tolerance.

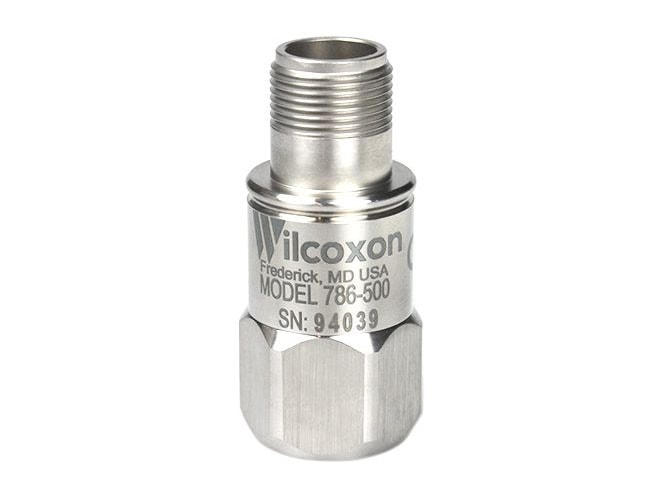

Wilcoxon Sensing Technologies 786-500 Accelerometer

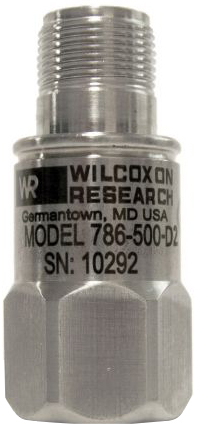

Wilcoxon Sensing Technologies 786-500-D2 Accelerometer

Starting at $356.92

View Company Reviews

Manufactured

By Wilcoxon Sensing Technologies

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 5-7 business days

Product Specs (2 Files)

Features

Dynamic vibration (IEPE) sensor output
10g peak acceleration range
Frequency response:
- ±5%: 0.7 to 5,000Hz
- ±10%: 0.5 to 9,000Hz
- ±3 dB: 0.2 to 14,000Hz
30kHz resonance frequency
300Ω max output impedance
500g peak vibration limit
5,000g peak shock limit
Hermetic sealing
PZT ceramic / shear sensing element
Mounting:
- 786-500: 1/4-28 UNF tapped hole
- 786-500-D2: 1/4-28 captive hex head screw, 0.046” diameter safety wire hole
Connector:
- 786-500: R6 type
- 786-500-D2: output 2 pin, MIL-C-5015 style, mating R6D2

The Wilcoxon Sensing Technologies 786-500 series accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, features high sensitivity and clear signals at low vibration levels, and is ideal for slow-speed machinery.

The 786-500 has a 500mV/g, ±5% sensitivity tolerance, and is case isolated and internally shielded. The 786-500 model features a 1/4-28 UNF tapped hole for mounting and an R6 type mating connector. The 786-500-D2 model has a 1/4-28 captive hex head screw and 0.046in diameter safety wire hole for mounting, a 2 pin, MIL-C-5015 style output connector, an R6D2 mating connector, and is Class I Div 2 certified, non-incendive.

The 786-500 is manufactured in an ISO 9001 facility.
