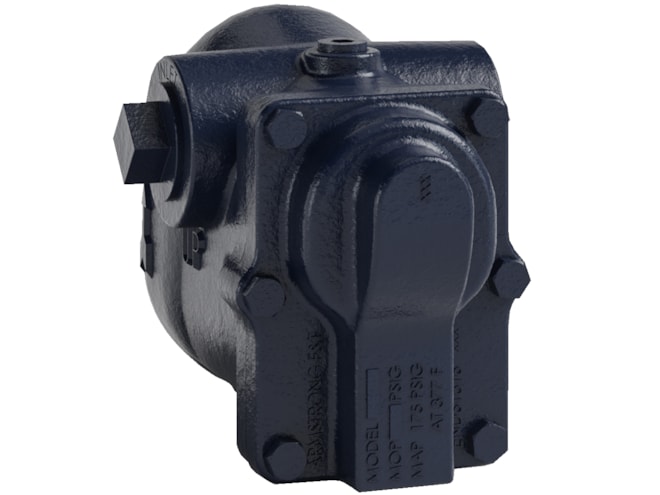

Armstrong International B and BI Series Float and Thermostatic Steam Trap

Name: Armstrong International B and BI Series Float and Thermostatic Steam Trap
Price: 322.0 USD
Availability: BackOrder

High-performance condensate drainage and air venting, with a thermostatic air vent for precise pressure to temperature response from deep vacuum to 30psig.

Starting at $322.00

View Company Reviews

Manufactured

By Armstrong International

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 3-5 business days

Product Manual Product Specs

Features

15 or 30psig maximum operating pressure (model dependent)
Material construction:
- Cast iron body (ASTM A48 Class 30)
- Stainless steel internals
Air vent: Stainless steel and bronze with phosphor bronze bellows, caged in stainless steel
Inlet configuration:
- B Series with dual inlet connections (except 1/2in and 3/4in)
- BI Series in-line connections for sizes 1/2in, 3/4in, and 1in
Installation orientation: horizontal installation required

The Armstrong International B and BI Series Float and Thermostatic Steam Trap provides reliable condensate drainage and high air-venting capacity for heating applications. Designed for long-lasting performance and efficiency, these traps ensure continuous operation while maintaining economy. Their thermostatic air vent is engineered for a responsive reaction to the steam pressure to temperature curve, allowing for effective air removal at all operating pressures, from vacuum conditions up to 30psig.

The B Series features dual inlet connections (except for 1/2in and 3/4in sizes), providing flexible installation options. The BI Series, available in sizes 1/2in, 3/4in, and 1in, is designed with in-line connections for seamless integration into piping systems. Constructed with a durable cast iron body (ASTM A48 Class 30) and stainless steel internals, these traps offer excellent resistance to wear and corrosion.
