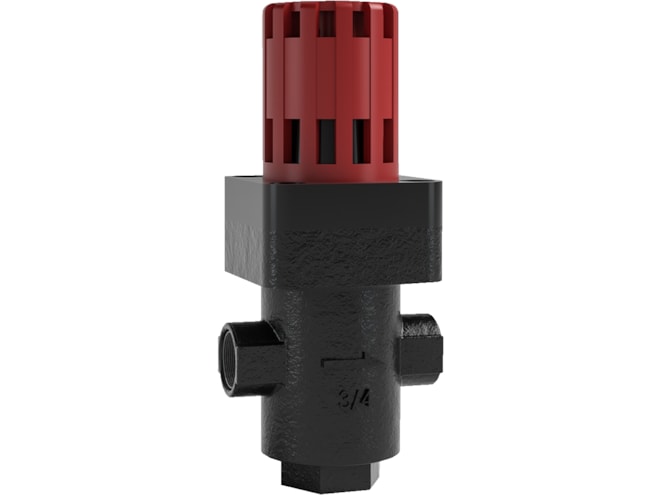

Armstrong International Direct Acting Pressure Reducing Valve

The GD-30 (bronze), GD-30S (stainless steel), and GD-45 (cast iron) is a compact pressure regulators for steam, air, and non-corrosive gases, handling inlet pressures up to 300psig.

Starting at $806.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 5-7 business days
Product Manual Product Specs (2 Files)

Features

  • Inlet pressure range: 15-300psig
  • Reduced pressure range: 3-140psig
  • Maximum temperature:
    • GD-30: 410°F
    • GD-30S: 430°F
    • GD-45: 450°F
  • Body material options:
    • GD-30: Cast bronze
    • GD-30S: Stainless steel
    • GD-45: Cast Iron
  • Applications: Steam, air, and non-corrosive gases
  • Shutoff classification: ANSI Class IV for tight shutoff
  • Turndown ratio: 10:1 for precise flow control
  • Connection sizes: 1/2in to 2in
  • Cv values: 1.3 to 8.5 for flow capacity

The Armstrong International Direct Acting Pressure Reducing Valve is a compact, high-performance solution for controlling steam, air, and non-corrosive gas pressures. Designed for applications with low to moderate flow, these valves provide reliable pressure reduction with an accuracy of ±10%. The GD-30/30S/45 feature a turndown ratio of 10:1, ensuring efficient operation, and offer tight shutoff in dead-end service on steam systems. The GD-30 is constructed from cast bronze, while the GD-30S is made from stainless steel, and the GD-45 is made from cast iron, allowing for greater resistance to corrosion and higher pressure ratings.

These direct-acting valves accommodate inlet pressures from 15 to 300psig and reduce pressure within a range of 3 to 140psig. The GD-30 is rated for a maximum temperature of 410°F, while the GD-30S can handle temperatures up to 430°F, and the GD-45 rated for a maximum temperature of 450°F. Available in sizes from 1/2in to 2in, these valves support a range of flow capacities with Cv values between 1.3 and 8.5. The internal components, including stainless steel bellows and valve seats, enhance durability and long-term performance.

Armstrong International Direct Acting Pressure Reducing Valve Applications:

  • Laundry and dry-cleaning equipment
  • Hospital equipment
  • Humidifiers
  • Tire molds
  • Small industrial heaters
  • Food processing and packaging equipment
