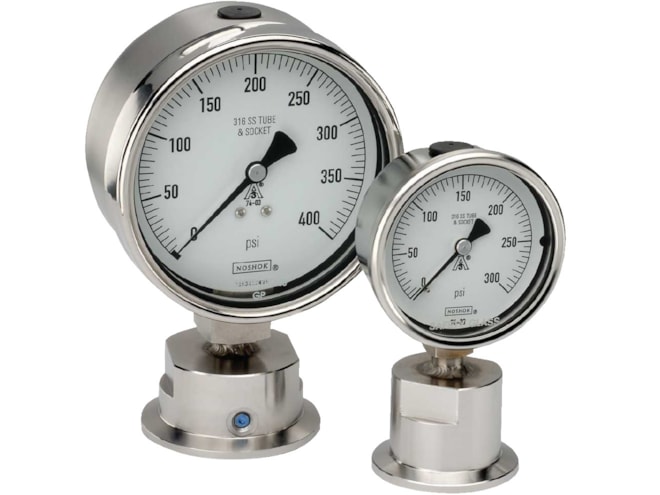

NOSHOK 10 Series Heavy-Duty Sanitary Pressure Gauge

With ranges from -30 inHg to 0 psig through to 600 psig, 316 stainless steel wetted parts, an electropolished stainless steel case, and optional liquid filling, it ensures durability.

Starting at $451.15

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Specs

Features

  • Pressure ranges: -30 inHg to 0 psig through 0 to 600 psig
  • Accuracy:
    • 2-1/2in gauge ±1.6% full scale
    • 4in gauge ±1.0% full scale
  • Temperature ranges:
    • Media -40 to 300 °F
    • Ambient 25 to 140 °F
    • Storage 25 to 140 °F
  • Measuring element: 316 Stainless Steel “C” tube
  • Connection:
    • 1-1/2in or 2in ASME-BPE Sanitary Clamp, 316L Stainless Steel Diaphragm
    • For additional options, please consult factory
  • Case: Electropolished 304 Stainless Steel
  • Bayonet ring: Electropolished 304 Stainless Steel
  • Lens: Safety glass
  • Pointer: Balanced Aluminum, black finish
  • Dial: Aluminum, white background, black print
  • Gauge Fill: USP Grade glycerin, silicone, mineral oil
  • Sanitary Fill: USP Grade glycerin, white oil

The NOSHOK 10 Series Heavy-Duty sanitary pressure gauges are designed for precision and durability in demanding sanitary applications. Constructed with 316 stainless steel wetted parts and an electropolished 304 stainless steel case, these gauges provide reliable performance in environments requiring strict hygiene standards. Available in 2-1/2in and 4in gauge sizes, they offer pressure ranges from -30 inHg to 0 psig up to 600 psig, ensuring accurate measurements across a wide range of processes.

The 10 Series features a 1-1/2in or 2in ASME-BPE sanitary clamp connection for secure and easy installation. They can be dry or liquid-filled with USP-grade glycerin for improved performance in high-vibration environments. The 10 Series meets 3-A sanitary standards and is designed for clean-in-place (C.I.P.), steam-in-place (S.I.P.), and autoclave processes, with dry gauges recommended for autoclaving. A safety glass lens, black-finished aluminum pointer, and balanced movement further enhance reliability and readability.


10 Series Heavy-Duty Sanitary Pressure Gauge Applications:

  • Food & beverage processing
  • Pasteurization systems
  • Pharmaceutical production
  • Medical applications
