Name: VEGA VEGAMET 141 Compact Controller
Price: 699.0 USD
Availability: BackOrder

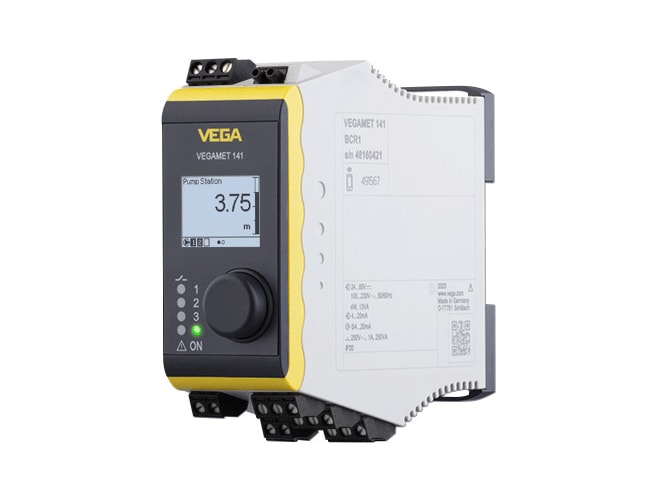

VEGA VEGAMET 141 Compact Controller
VEGA VEGAMET 141 Compact Controller in switching cabinet

Starting at $699.00

View Company Reviews

Manufactured

By VEGA

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 2-3 weeks

Product Manual Product Specs

Features

4 to 20mA sensor input
Type of input (selectable):
- Active input sensor supply through VEGAMET 141
- Passive input sensor has own voltage supply
0/4 to 20mA, 20 to 0/4mA current output
Relay output:
- 3 operating relays, one can be configured as fail safe relay
- Switching voltage: max 250 V AC/60 V DC
- Switching current: max 1 A AC (cos phi > 0.9), 1 A DC
ATEX / Europe, IEC / worldwide, c-UL-us, UKEX approvals
IP20 (IEC 60529) protection
Bluetooth 5.0
Simple setup and diagnosis of measuring points via smartphone
Control of measuring point by graphic display, even in the dark

This product is an accessory for the following products:

VEGA VEGAPULS 11 Compact Radar Sensor

Compact radar sensor for continuous level measurement, 4 to 20mA output, measuring range up to 10m, accuracy ±5 mm.

Starting at $839.00

VEGA VEGAPULS 21 Compact Radar Sensor

Compact radar sensor for continuous level measurement, 4 to 20mA/HART output, measuring range up to 20m, accuracy ±2 mm, Ex approval available.

Starting at $1,169.00

VEGA VEGAPULS 31 Compact Radar Sensor

Compact radar sensor for continuous level measurement, 4 to 20mA/HART output, measuring range up to 20m, accuracy ±2 mm, Ex approval available, on-site display, 3-button operation.

Starting at $1,299.00

VEGA VEGAPULS C 11 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, axial cable outlet, range up to 10m, accuracy ±5mm, 10m PVC cable.

Some Models in Stock

Starting at $819.00

VEGA VEGAPULS C 21 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, axial cable outlet, range up to 20m, accuracy ±2mm, 4 to 20mA HART, SDI-12 or Modbus output, Ex-approval available.

Some Models in Stock

Starting at $1,139.00

VEGA VEGAPULS C 22 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, lateral cable outlet, range up to 20m, accuracy ±2mm, 4 to 20mA HART, SDI-12 or Modbus output, Ex approval available.

Starting at $1,139.00

VEGA VEGAPULS C 23 Wired Radar Sensor

Radar sensor for non-contact continuous level measurement, axial cable outlet, range up to 30m, accuracy ±2 mm, 4 to 20mA, HART, SDI-12 or Modbus output, Ex-approval available.

Starting at $1,429.00

The VEGA VEGAMET 141 compact controller is ideal for mounting on carrier rails in switching cabinets because of its compact design. The controller feeds the connected 4 to 20mA sensor, and processes the measured values and displays them. The VEGAMET 141 also integrates a graphic display and a turn/push button for quick on-site control of the measuring point.

The VEGAMET 141 enables simple implementation of pump controls, and flow measurements on open channels, weirs, and totalizers. With the VEGAMET 141, limit values can be reliably monitored and relays can be switched, for example, for an overfill protection according to WHG. The VEGAMET 141 is suitable for many industrial branches as well as for plant manufacturers.
