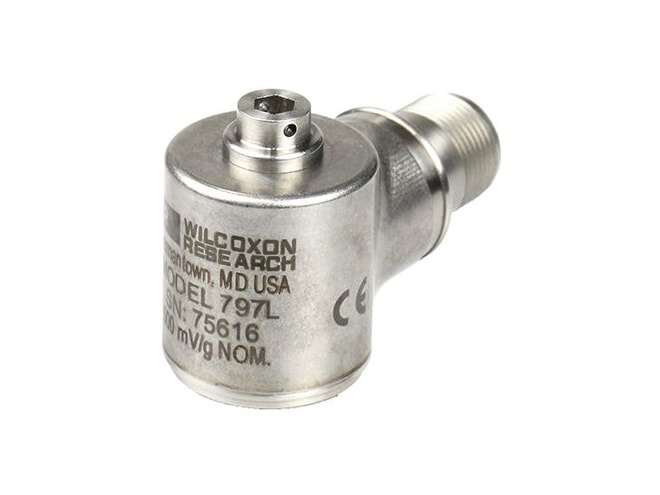

Wilcoxon Sensing Technologies 797L Low Frequency Accelerometer

Low-frequency case isolated, internally shielded, side exit accelerometer with 500mV/g sensitivity and ±5% sensitivity tolerance.

Features

  • Dynamic vibration (IEPE) sensor output
  • 10g peak acceleration range
  • 1% amplitude nonlinearity
  • Frequency response:
    • ±5%: 0.6 to 850Hz
    • ±10%: 0.4 to 1,500Hz
    • ±3 dB: 0.2 to 3,700Hz
  • 18kHz resonance frequency
  • 100Ω max output impedance
  • 250g peak vibration limit
  • 2,500g peak shock limit
  • Hermetic sealing
  • PZT ceramic / shear sensing element
  • R6 type mating connector

The Wilcoxon Sensing Technologies 797L low frequency accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, is hermetically sealed, and features ultra low noise electronics. It also features a 1/4-28 captive socket head with 0.062" diameter safety wire hole for mounting, and has a R6 type output connector. The 797L is case isolated, and has 500mV/g sensitivity and ±5% sensitivity tolerance.

The 797L accelerometer is manufactured in an ISO 9001 facility.
