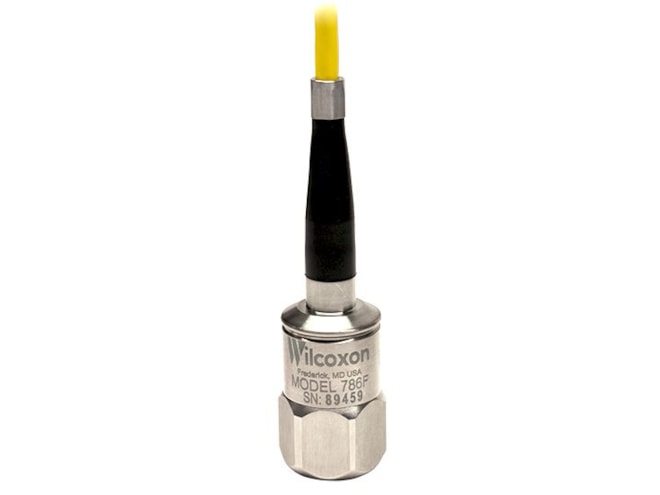

Wilcoxon Sensing Technologies 786F Series Accelerometer
Top exit integral cable, internally shielded accelerometer; usable in submerged applications up to 30 ft; 100mV/g, ±5% sensitivity tolerance.
Starting at
$424.62
Manufactured
Includes
Availability
Overview
Features
- Usable in submerged applications up to 30 ft.
- 100psi pressure rating
- 80g peak acceleration range
- 500g peak vibration limit
- 5,000g peak shock limit
- Frequency response:
- ±10%: 1 to 8,000Hz
- ±3 dB: 0.5 to 13,000Hz
- 30kHz resonance frequency
- 100Ω max output impedance
- Hermetic sealing
- PZT ceramic / shear sensing element
- 16ft integral J9T2A Teflon-jacketed cable
Description
The Wilcoxon Sensing Technologies 786F series accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included). It has either a J9T2A, 16-foot, blunt cut integral cable or integral shielded Class I, Div 2 suitable cable, depending on the model. The 786F is case isolated, and has a 100mV/g, ±5% sensitivity tolerance. The 786F is manufactured in an ISO 9001 facility.
